1a4l
ADA STRUCTURE COMPLEXED WITH DEOXYCOFORMYCIN AT PH 7.0

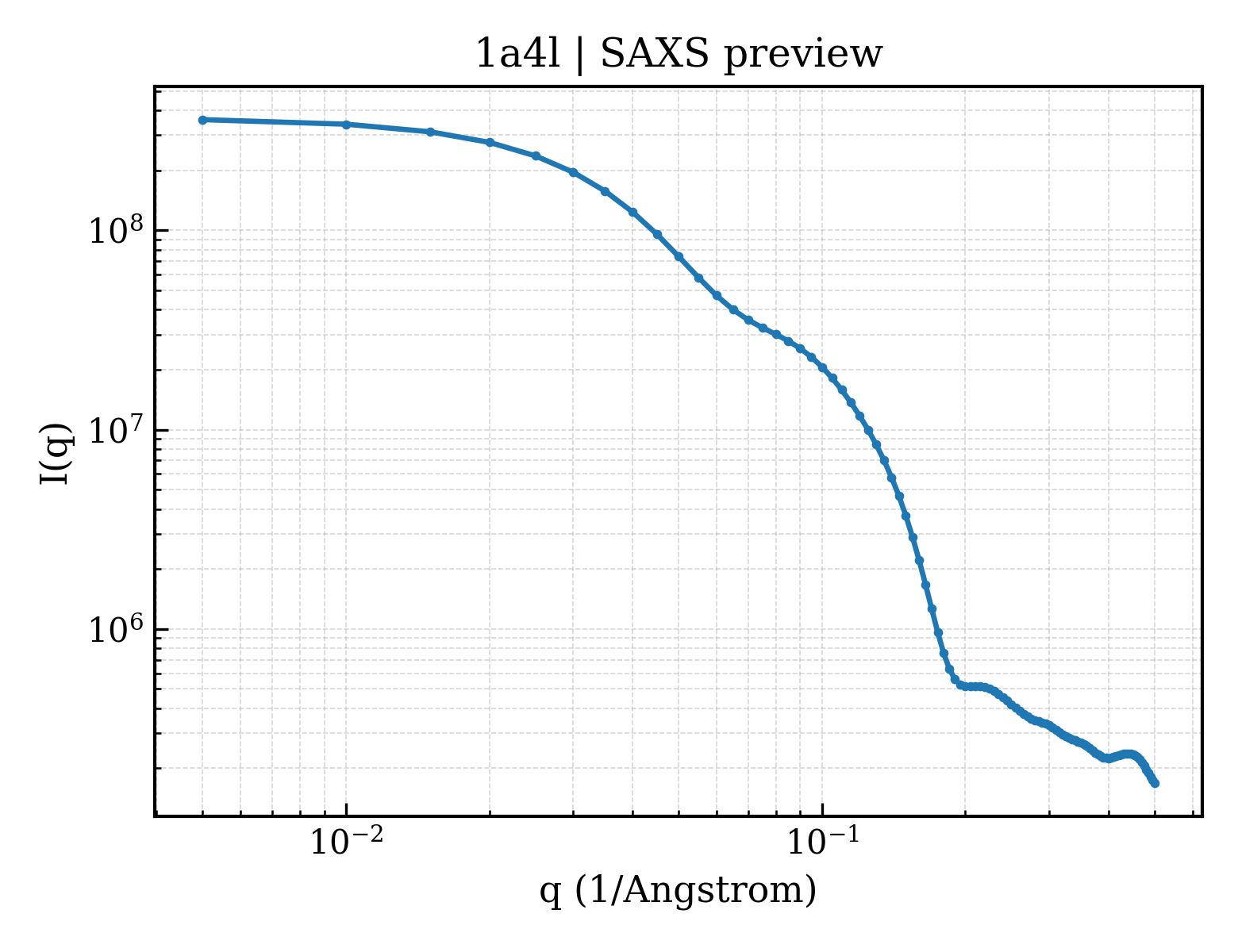

SAXS Profile

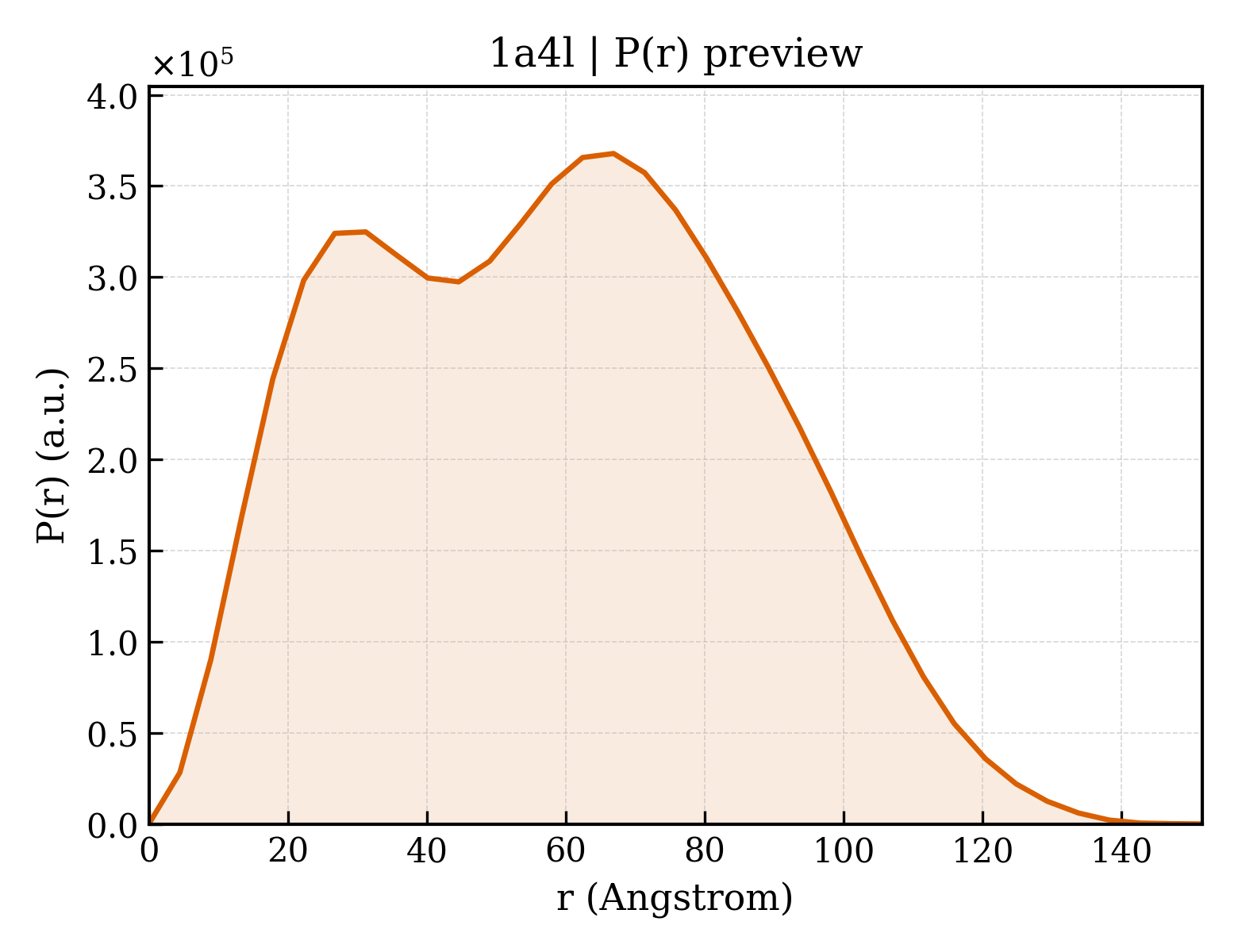

P(r) Distribution
1. Structure Basics
| entry_id | 1a4l |
| deposition_date | 1998-01-31 |
| title | ADA STRUCTURE COMPLEXED WITH DEOXYCOFORMYCIN AT PH 7.0 |
| keywords | HYDROLASE, ADENOSINE DEAMINASE, PENTOSTATIN, DEOXYCOFORMYCIN; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 45.81 Å |
| rg_electron | 45.64 Å |
| i0 | 365279000.00 |
| molecular_weight | 159800.0 kDa |
| excluded_volume | 200330 ų |
| envelope_volume | 262840 ų |
| shell_volume | 47171 ų |
| envelope_diameter | 150.5 Å |
| shell_rg | 51.98 Å |
| envelope_rg | 44.11 Å |
| shape_rg | 45.64 Å |
| total_rg | 45.88 Å |
| total_atoms | 11240 |
| n_residues | 1396 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 151.6 Å |
| rg_real | 45.87 Å |
| rg_real_error | 1.64 Å |
| i0_real | 3.6530e+08 |
| i0_real_error | 7.7470e+06 |
| rg_reciprocal | 45.81 Å |
| i0_reciprocal | 365200000.0000 |
| total_estimate | 0.8469 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 66.9 Å |
| skewness | 0.161 |
| kurtosis | -0.773 |
| angular_range | — – 0.1700 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 25390000.0000 |
| n_real_points | 35 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.765; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.905; Smooth: 0.807 |
