1a7l

;DOMINANT B-CELL EPITOPE FROM THE PRES2 REGION OF HEPATITIS B VIRUS IN THE FORM OF AN INSERTED PEPTIDE SEGMENT IN MALTODEXTRIN-BINDING PROTEIN ;

Method: X-RAY DIFFRACTION Dmax: 124.1 Å Quality: GOOD

SAXS Profile

SAXS profile for 1a7l

P(r) Distribution

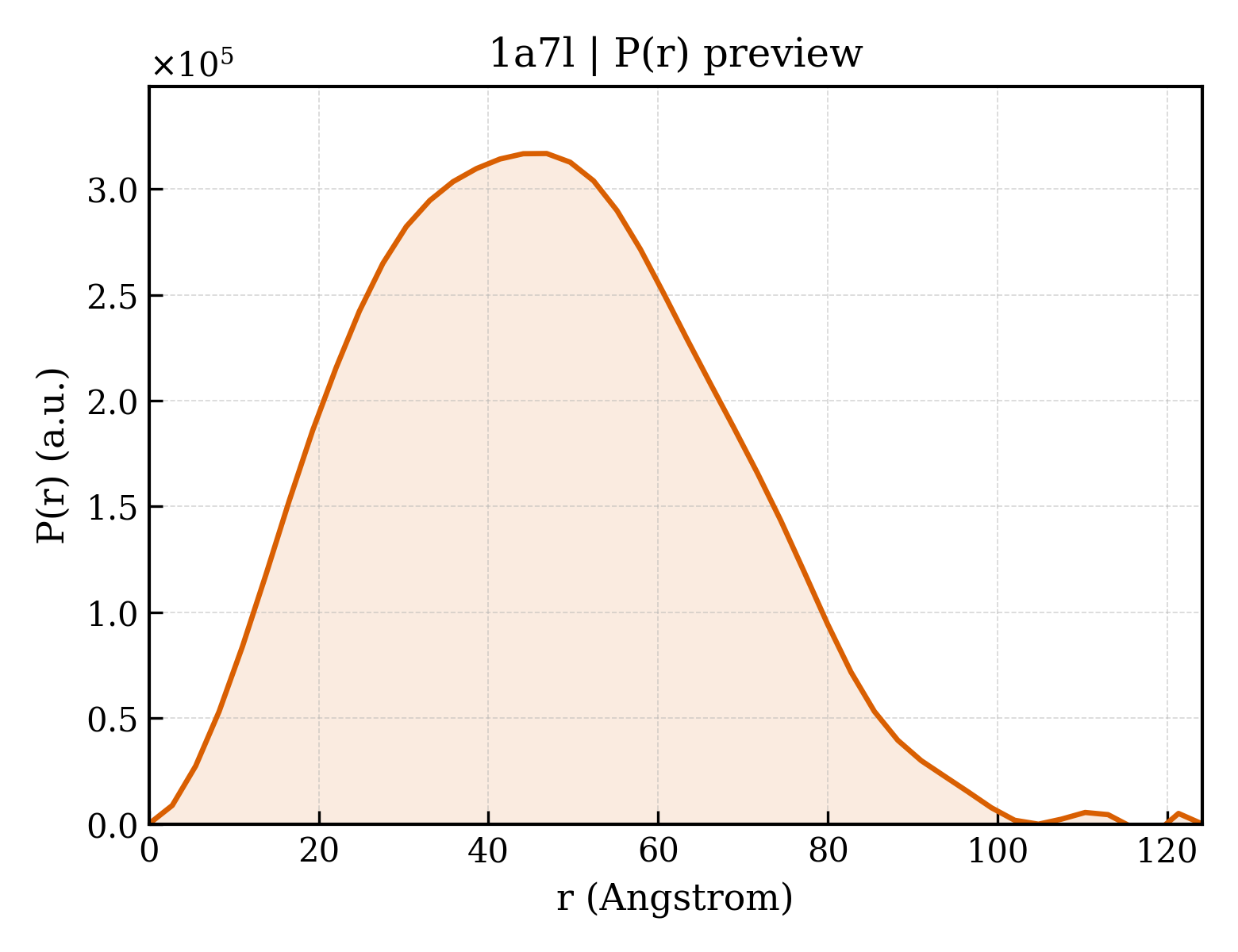

P(r) distribution for 1a7l
▼

1. Structure Basics

entry_id1a7l
deposition_date1998-03-16
title;DOMINANT B-CELL EPITOPE FROM THE PRES2 REGION OF HEPATITIS B VIRUS IN THE FORM OF AN INSERTED PEPTIDE SEGMENT IN MALTODEXTRIN-BINDING PROTEIN ;
keywordsTRANSPORT, PRES2, EPITOPE, HEPATITIS B, MALTOSE-BINDING PROTEIN; TRANSPORT
methodX-RAY DIFFRACTION
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier35.54 Å
rg_electron34.80 Å
i0218920000.00
molecular_weight123090.0 kDa
excluded_volume155580 ų
envelope_volume200920 ų
shell_volume48049 ų
envelope_diameter136.0 Å
shell_rg41.35 Å
envelope_rg34.65 Å
shape_rg34.77 Å
total_rg35.40 Å
total_atoms8702
n_residues1114
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax124.1 Å
rg_real35.46 Å
rg_real_error1.44 Å
i0_real2.1890e+08
i0_real_error3.7650e+06
rg_reciprocal35.51 Å
i0_reciprocal218900000.0000
total_estimate0.7993
solution_quality GOOD a GOOD solution
n_peaks3
r_peak_primary46.9 Å
skewness0.234
kurtosis-0.449
angular_range— – 0.2250 Å−1
current_alpha0.0000
highest_alpha73750000.0000
n_real_points46
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.802; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.000
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

▶

6. Citations (2)

▶

7. Files & Curves (10)
