1a7m
LEUKAEMIA INHIBITORY FACTOR CHIMERA (MH35-LIF), NMR, 20 STRUCTURES

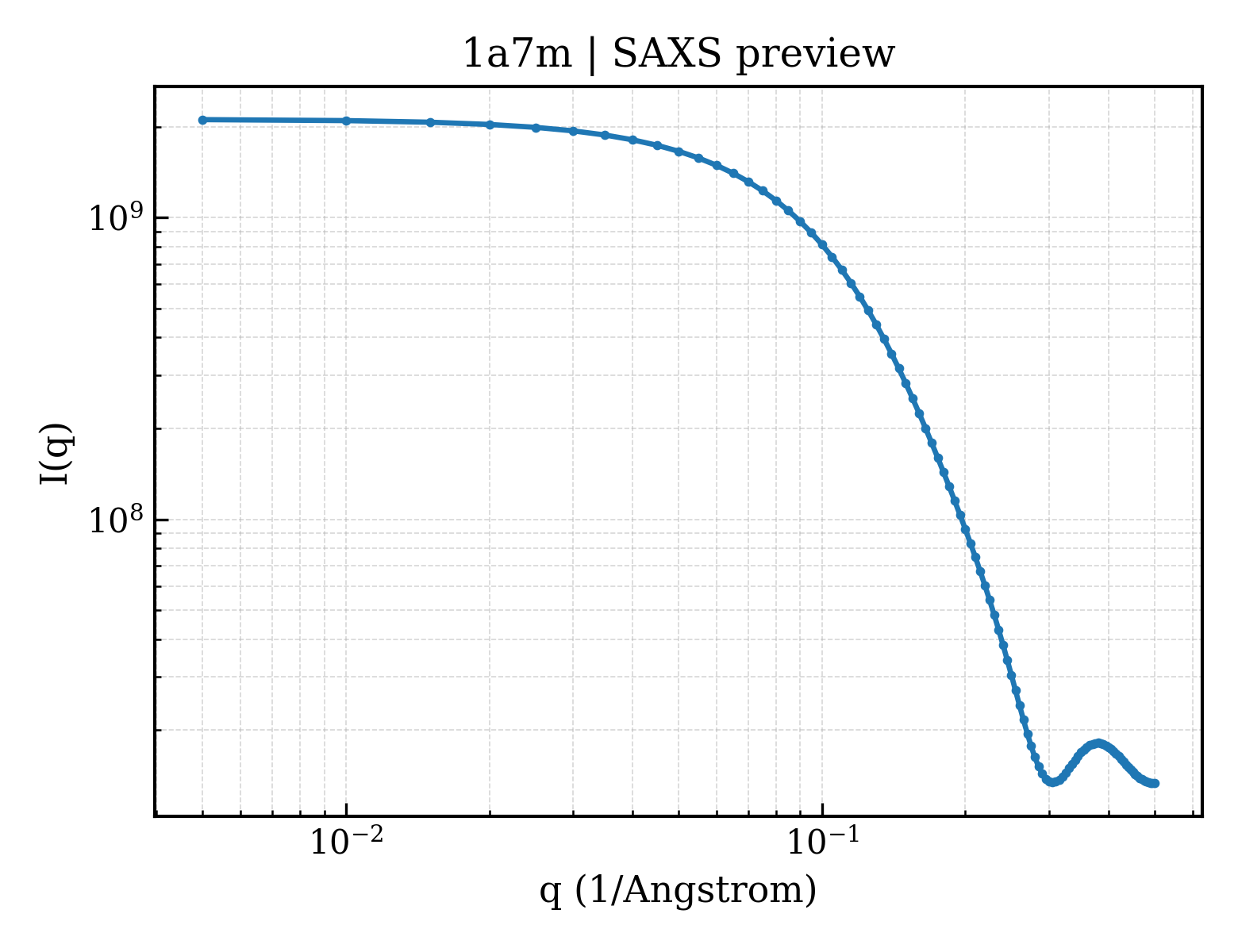

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1a7m |
| deposition_date | 1998-03-16 |
| title | LEUKAEMIA INHIBITORY FACTOR CHIMERA (MH35-LIF), NMR, 20 STRUCTURES |
| keywords | CYTOKINE, FOUR HELICAL BUNDLE; CYTOKINE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.10 Å |
| rg_electron | 17.01 Å |
| i0 | 2114250000.00 |
| molecular_weight | 396120.0 kDa |
| excluded_volume | 498520 ų |
| envelope_volume | 50586 ų |
| shell_volume | 20554 ų |
| envelope_diameter | 75.5 Å |
| shell_rg | 27.63 Å |
| envelope_rg | 22.31 Å |
| shape_rg | 16.99 Å |
| total_rg | 17.24 Å |
| total_atoms | 56060 |
| n_residues | 3600 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

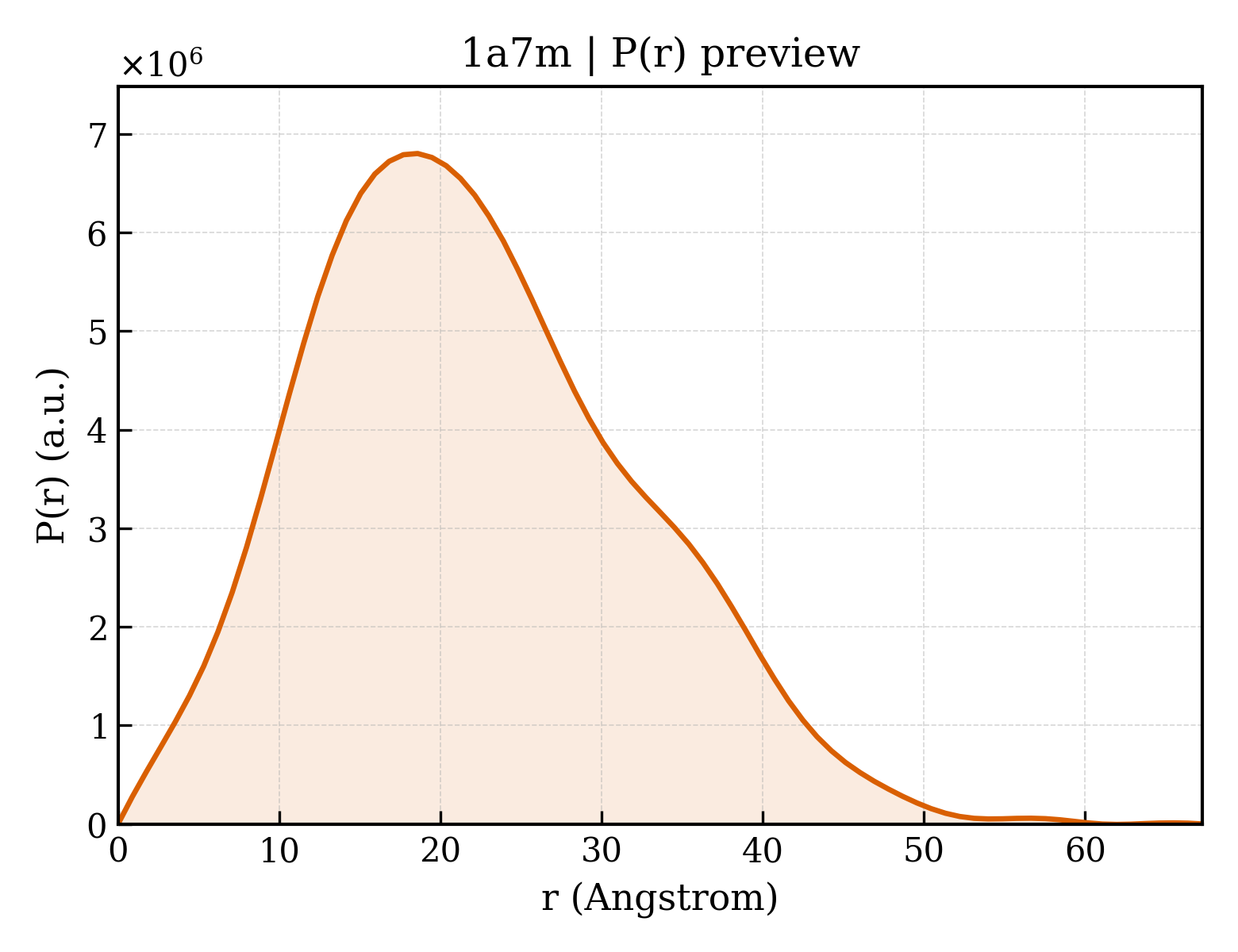

3. P(r) Analysis (GNOM)
| dmax | 67.3 Å |
| rg_real | 17.14 Å |
| rg_real_error | 0.70 Å |
| i0_real | 2.1140e+09 |
| i0_real_error | 3.1320e+07 |
| rg_reciprocal | 17.14 Å |
| i0_reciprocal | 2114000000.0000 |
| total_estimate | 0.7700 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 18.6 Å |
| skewness | 0.435 |
| kurtosis | -0.162 |
| angular_range | — – 0.4650 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1099000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.471; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.596; Smooth: 0.997 |
