1a7t
METALLO-BETA-LACTAMASE WITH MES
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1a7t |
| deposition_date | 1998-03-17 |
| title | METALLO-BETA-LACTAMASE WITH MES |
| keywords | HYDROLASE (BETA-LACTAMASE), METALLO BETA-LACTAMASE, ZINC, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 27.40 Å |
| rg_electron | 26.90 Å |
| i0 | 42386500.00 |
| molecular_weight | 50266.0 kDa |
| excluded_volume | 62669 ų |
| envelope_volume | 75613 ų |
| shell_volume | 24557 ų |
| envelope_diameter | 95.0 Å |
| shell_rg | 32.58 Å |
| envelope_rg | 26.94 Å |
| shape_rg | 26.92 Å |
| total_rg | 27.47 Å |
| total_atoms | 3518 |
| n_residues | 454 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

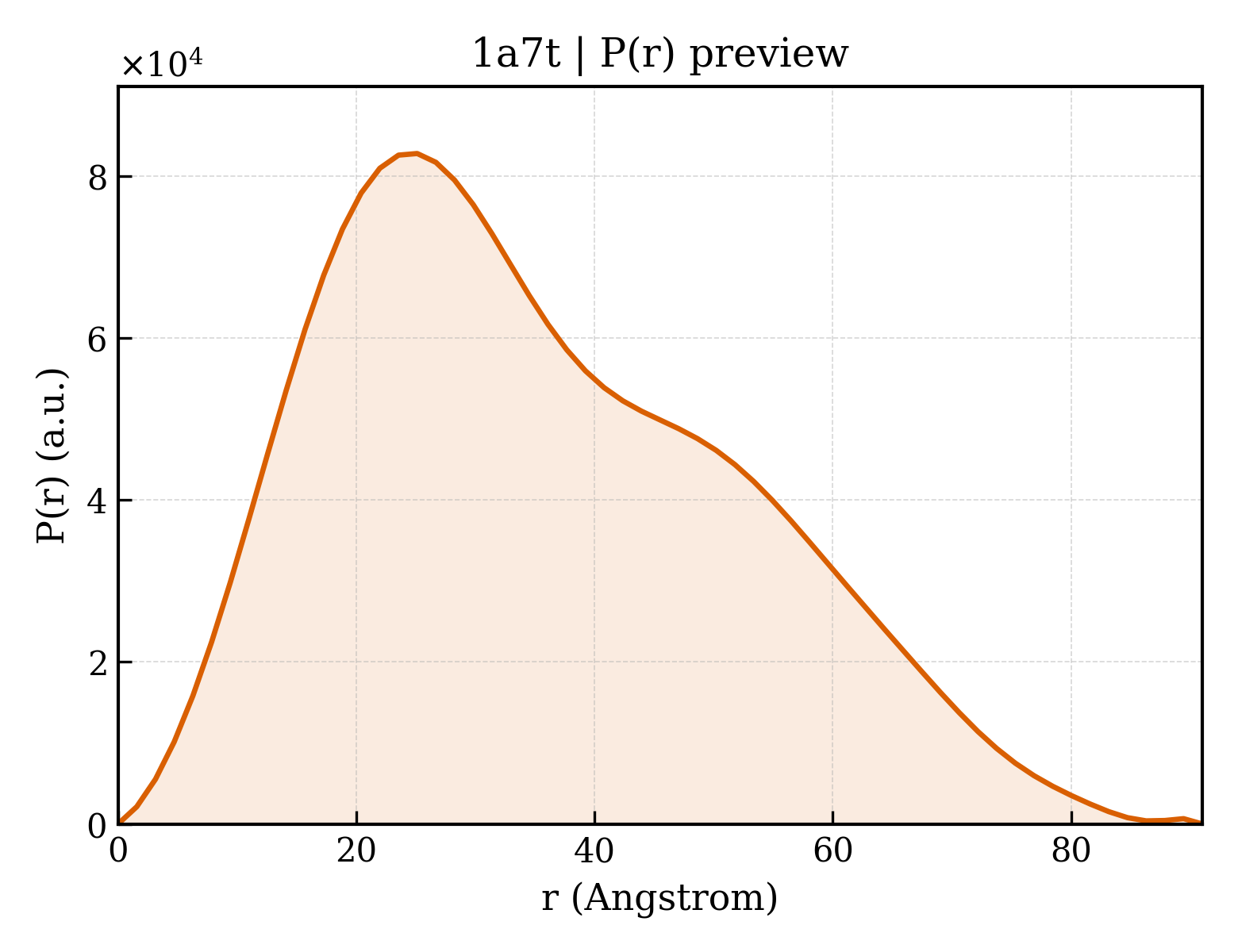

3. P(r) Analysis (GNOM)
| dmax | 91.0 Å |
| rg_real | 27.61 Å |
| rg_real_error | 0.67 Å |
| i0_real | 4.2390e+07 |
| i0_real_error | 6.0350e+05 |
| rg_reciprocal | 27.55 Å |
| i0_reciprocal | 42380000.0000 |
| total_estimate | 0.8469 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 25.1 Å |
| skewness | 0.455 |
| kurtosis | -0.528 |
| angular_range | — – 0.2900 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 20850000.0000 |
| n_real_points | 59 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.747; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.832; Smooth: 0.933 |
