1a7u
CHLOROPEROXIDASE T

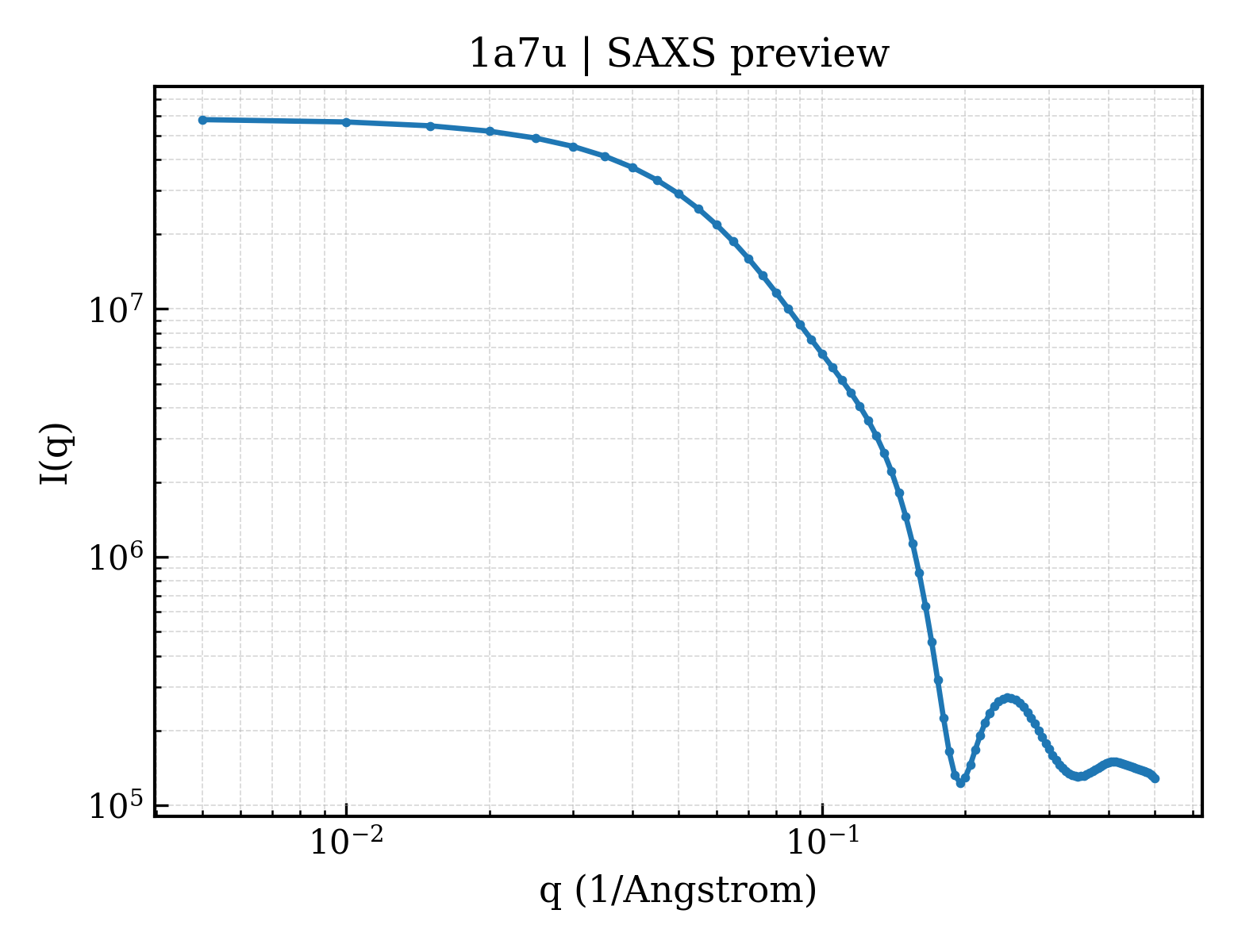

SAXS Profile

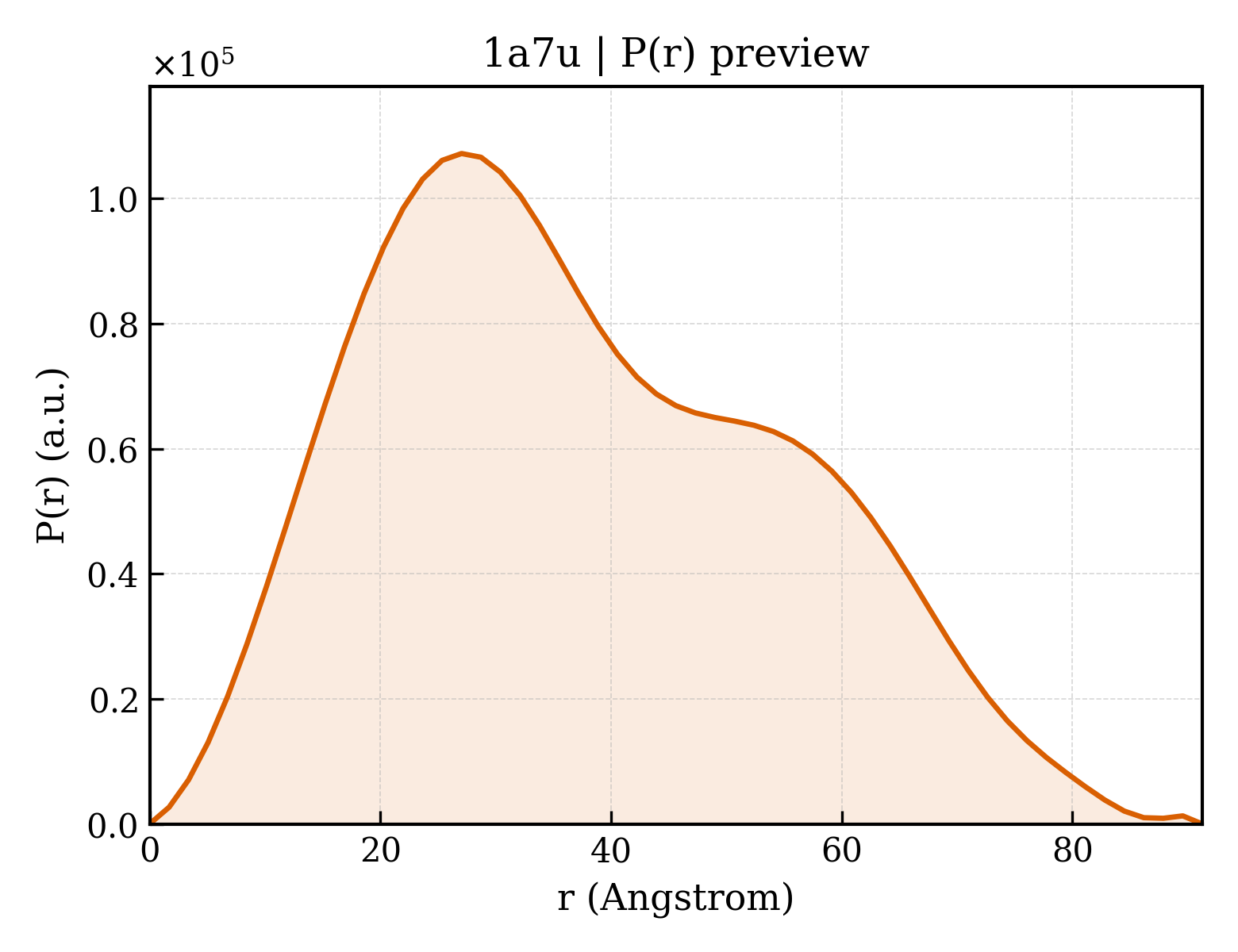

P(r) Distribution
1. Structure Basics
| entry_id | 1a7u |
| deposition_date | 1998-03-17 |
| title | CHLOROPEROXIDASE T |
| keywords | HALOPEROXIDASE, OXIDOREDUCTASE, PEROXIDASE, ALPHA/BETA HYDROLASE FOLD; HALOPEROXIDASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 29.20 Å |
| rg_electron | 28.51 Å |
| i0 | 58417300.00 |
| molecular_weight | 60413.0 kDa |
| excluded_volume | 75599 ų |
| envelope_volume | 90846 ų |
| shell_volume | 27388 ų |
| envelope_diameter | 95.5 Å |
| shell_rg | 34.64 Å |
| envelope_rg | 28.15 Å |
| shape_rg | 28.50 Å |
| total_rg | 29.14 Å |
| total_atoms | 4290 |
| n_residues | 554 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 91.2 Å |
| rg_real | 29.30 Å |
| rg_real_error | 0.76 Å |
| i0_real | 5.8420e+07 |
| i0_real_error | 9.0060e+05 |
| rg_reciprocal | 29.26 Å |
| i0_reciprocal | 58420000.0000 |
| total_estimate | 0.8656 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 27.0 Å |
| skewness | 0.363 |
| kurtosis | -0.673 |
| angular_range | — – 0.2700 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 23230000.0000 |
| n_real_points | 55 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.849; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.940; Smooth: 0.761 |
