1a8l
PROTEIN DISULFIDE OXIDOREDUCTASE FROM ARCHAEON PYROCOCCUS FURIOSUS
SAXS Profile

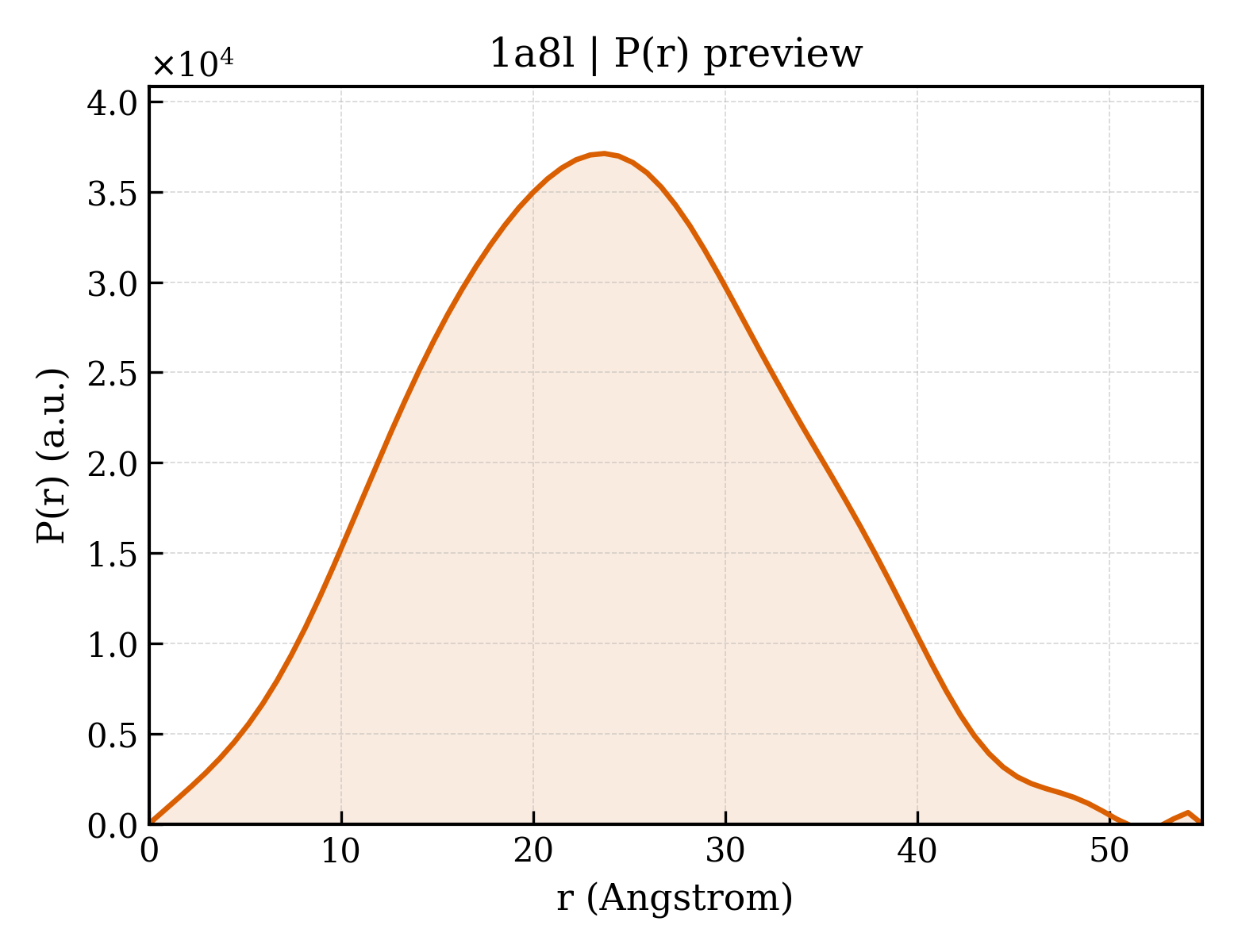

P(r) Distribution
1. Structure Basics
| entry_id | 1a8l |
| deposition_date | 1998-03-26 |
| title | PROTEIN DISULFIDE OXIDOREDUCTASE FROM ARCHAEON PYROCOCCUS FURIOSUS |
| keywords | OXIDOREDUCTASE, PDI, THIOREDOXIN FOLD; OXIDOREDUCTASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.22 Å |
| rg_electron | 16.86 Å |
| i0 | 11527100.00 |
| molecular_weight | 25836.0 kDa |
| excluded_volume | 32549 ų |
| envelope_volume | 36611 ų |
| shell_volume | 17833 ų |
| envelope_diameter | 57.2 Å |
| shell_rg | 23.38 Å |
| envelope_rg | 17.16 Å |
| shape_rg | 16.80 Å |
| total_rg | 18.07 Å |
| total_atoms | 1812 |
| n_residues | 226 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 54.8 Å |
| rg_real | 18.09 Å |
| rg_real_error | 0.24 Å |
| i0_real | 1.1530e+07 |
| i0_real_error | 1.3860e+05 |
| rg_reciprocal | 18.11 Å |
| i0_reciprocal | 11530000.0000 |
| total_estimate | 0.8266 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.7 Å |
| skewness | 0.103 |
| kurtosis | -0.446 |
| angular_range | — – 0.4350 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2443000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.922; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.000 |
