1abs
PHOTOLYSED CARBONMONOXY-MYOGLOBIN AT 20 K
SAXS Profile

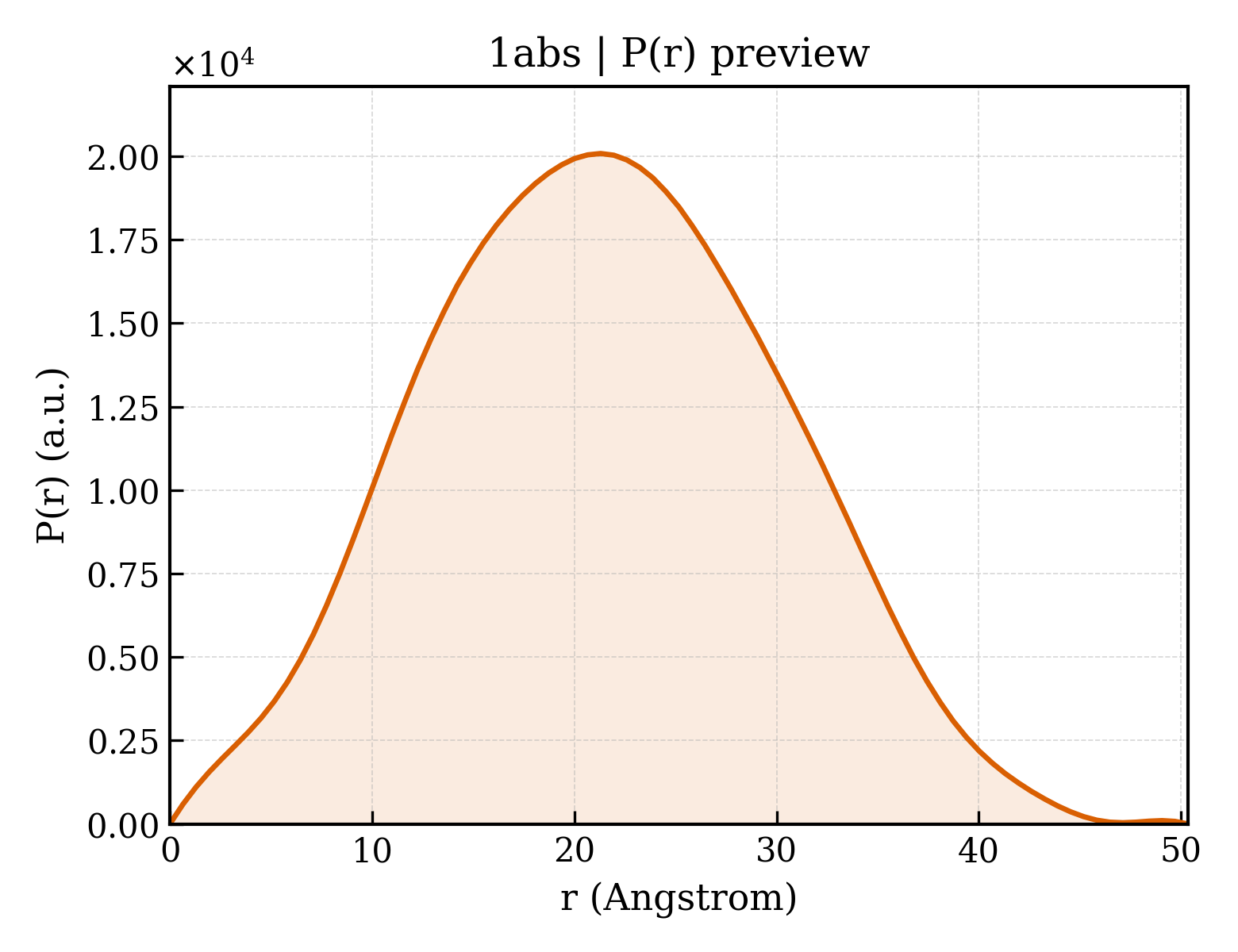

P(r) Distribution
1. Structure Basics
| entry_id | 1abs |
| deposition_date | 1997-01-28 |
| title | PHOTOLYSED CARBONMONOXY-MYOGLOBIN AT 20 K |
| keywords | OXYGEN STORAGE, INTERMEDIATE IN LIGAND BINDING, RESPIRATORY PROTEIN; OXYGEN STORAGE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.49 Å |
| rg_electron | 15.08 Å |
| i0 | 5821200.00 |
| molecular_weight | 18074.0 kDa |
| excluded_volume | 22884 ų |
| envelope_volume | 24769 ų |
| shell_volume | 13926 ų |
| envelope_diameter | 50.8 Å |
| shell_rg | 20.86 Å |
| envelope_rg | 15.27 Å |
| shape_rg | 15.04 Å |
| total_rg | 16.26 Å |
| total_atoms | 1275 |
| n_residues | 154 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 50.4 Å |
| rg_real | 16.36 Å |
| rg_real_error | 0.24 Å |
| i0_real | 5.8210e+06 |
| i0_real_error | 6.5960e+04 |
| rg_reciprocal | 16.38 Å |
| i0_reciprocal | 5821000.0000 |
| total_estimate | 0.9032 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 21.3 Å |
| skewness | 0.085 |
| kurtosis | -0.467 |
| angular_range | — – 0.4850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 843800.0000 |
| n_real_points | 79 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.925; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.979 |
