1ac1
DSBA MUTANT H32L

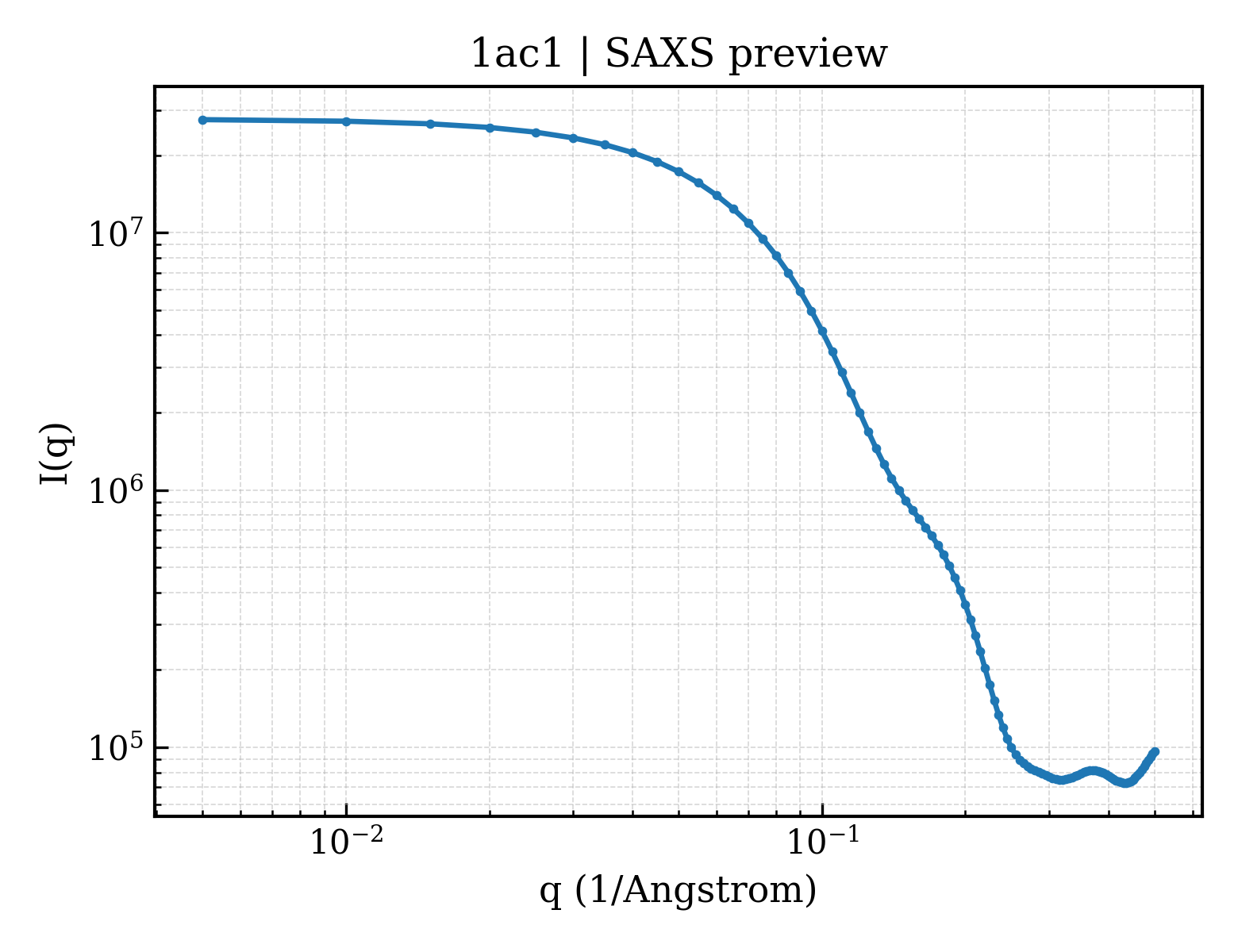

SAXS Profile

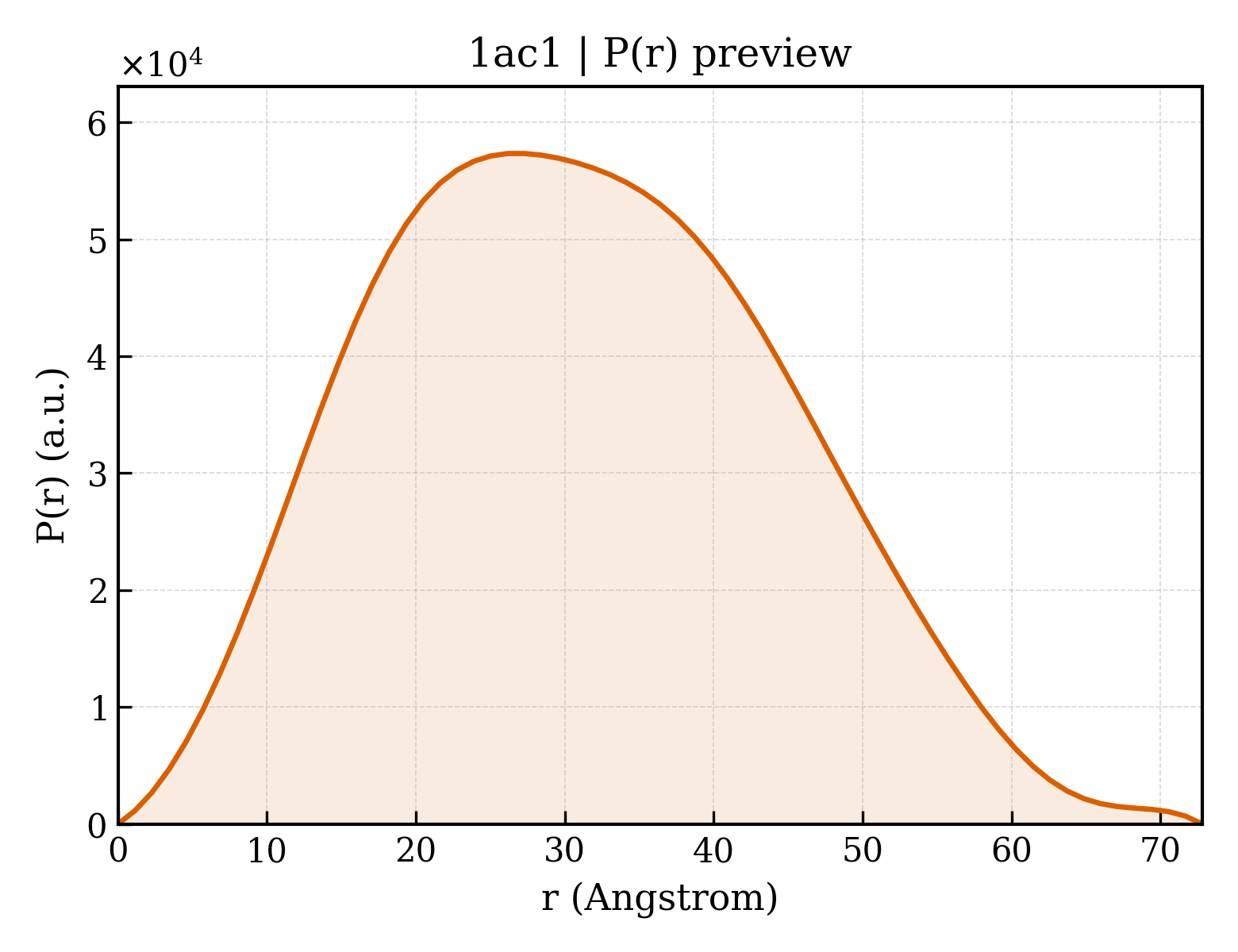

P(r) Distribution
1. Structure Basics
| entry_id | 1ac1 |
| deposition_date | 1997-02-10 |
| title | DSBA MUTANT H32L |
| keywords | DISULFIDE OXIDOREDUCTASE, THIOREDOXIN FOLD, REDOX-ACTIVE CENTER; DISULFIDE OXIDOREDUCTASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 23.70 Å |
| rg_electron | 22.71 Å |
| i0 | 27634200.00 |
| molecular_weight | 40919.0 kDa |
| excluded_volume | 51395 ų |
| envelope_volume | 62791 ų |
| shell_volume | 23192 ų |
| envelope_diameter | 73.6 Å |
| shell_rg | 29.34 Å |
| envelope_rg | 22.75 Å |
| shape_rg | 22.72 Å |
| total_rg | 23.53 Å |
| total_atoms | 2884 |
| n_residues | 376 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 72.8 Å |
| rg_real | 23.90 Å |
| rg_real_error | 0.14 Å |
| i0_real | 2.7040e+07 |
| i0_real_error | 2.6140e+05 |
| rg_reciprocal | 23.63 Å |
| i0_reciprocal | 27630000.0000 |
| total_estimate | 0.7122 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 0 |
| r_peak_primary | — Å |
| skewness | 0.213 |
| kurtosis | -0.542 |
| angular_range | — – 0.3350 Å−1 |
| current_alpha | 7.1850 |
| highest_alpha | 8990000.0000 |
| n_real_points | 65 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.974; Stabil: 0.921; Sysdev: 0.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.607 |
