1acf
ACANTHAMOEBA CASTELLANII PROFILIN IB
SAXS Profile

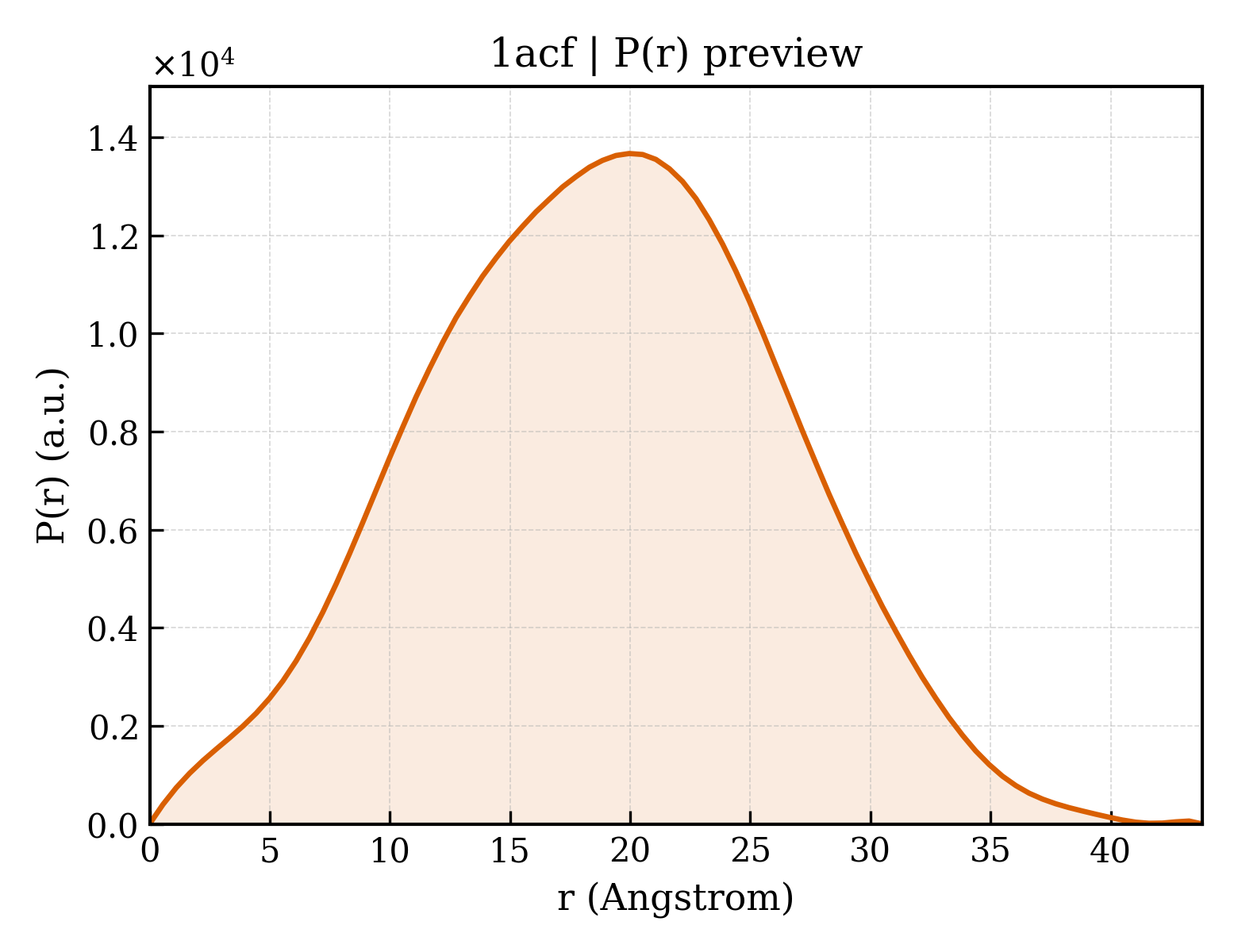

P(r) Distribution
1. Structure Basics
| entry_id | 1acf |
| deposition_date | 1994-07-29 |
| title | ACANTHAMOEBA CASTELLANII PROFILIN IB |
| keywords | PROTEIN BINDING, PROFILIN, ACTIN-BINDING PROTEIN, CONTRACTILE PROTEIN; CONTRACTILE PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.46 Å |
| rg_electron | 12.94 Å |
| i0 | 3316040.00 |
| molecular_weight | 12839.0 kDa |
| excluded_volume | 16129 ų |
| envelope_volume | 17399 ų |
| shell_volume | 11410 ų |
| envelope_diameter | 40.8 Å |
| shell_rg | 18.72 Å |
| envelope_rg | 13.14 Å |
| shape_rg | 12.93 Å |
| total_rg | 14.26 Å |
| total_atoms | 908 |
| n_residues | 125 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 43.8 Å |
| rg_real | 14.33 Å |
| rg_real_error | 0.22 Å |
| i0_real | 3.3160e+06 |
| i0_real_error | 3.4550e+04 |
| rg_reciprocal | 14.35 Å |
| i0_reciprocal | 3316000.0000 |
| total_estimate | 0.8915 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.0 Å |
| skewness | 0.015 |
| kurtosis | -0.392 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 736700.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.884; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.974; Smooth: 0.960 |
