1aev

;INTRODUCTION OF NOVEL SUBSTRATE OXIDATION INTO CYTOCHROME C PEROXIDASE BY CAVITY COMPLEMENTATION: OXIDATION OF 2-AMINOTHIAZOLE AND COVALENT MODIFICATION OF THE ENZYME (2-AMINOTHIAZOLE) ;

Method: X-RAY DIFFRACTION D_max: 62.0 Å Quality: REASONABLE

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1aev
deposition_date	1997-02-25
title	;INTRODUCTION OF NOVEL SUBSTRATE OXIDATION INTO CYTOCHROME C PEROXIDASE BY CAVITY COMPLEMENTATION: OXIDATION OF 2-AMINOTHIAZOLE AND COVALENT MODIFICATION OF THE ENZYME (2-AMINOTHIAZOLE) ;
keywords	OXIDOREDUCTASE, PEROXIDASE, TRANSIT PEPTIDE; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	19.49 Å
rg_electron	18.43 Å
i0	19620600.00
molecular_weight	33729.0 kDa
excluded_volume	42082 Å³
envelope_volume	46861 Å³
shell_volume	20774 Å³
envelope_diameter	66.0 Å
shell_rg	25.23 Å
envelope_rg	18.73 Å
shape_rg	18.40 Å
total_rg	19.41 Å
total_atoms	2890
n_residues	291
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

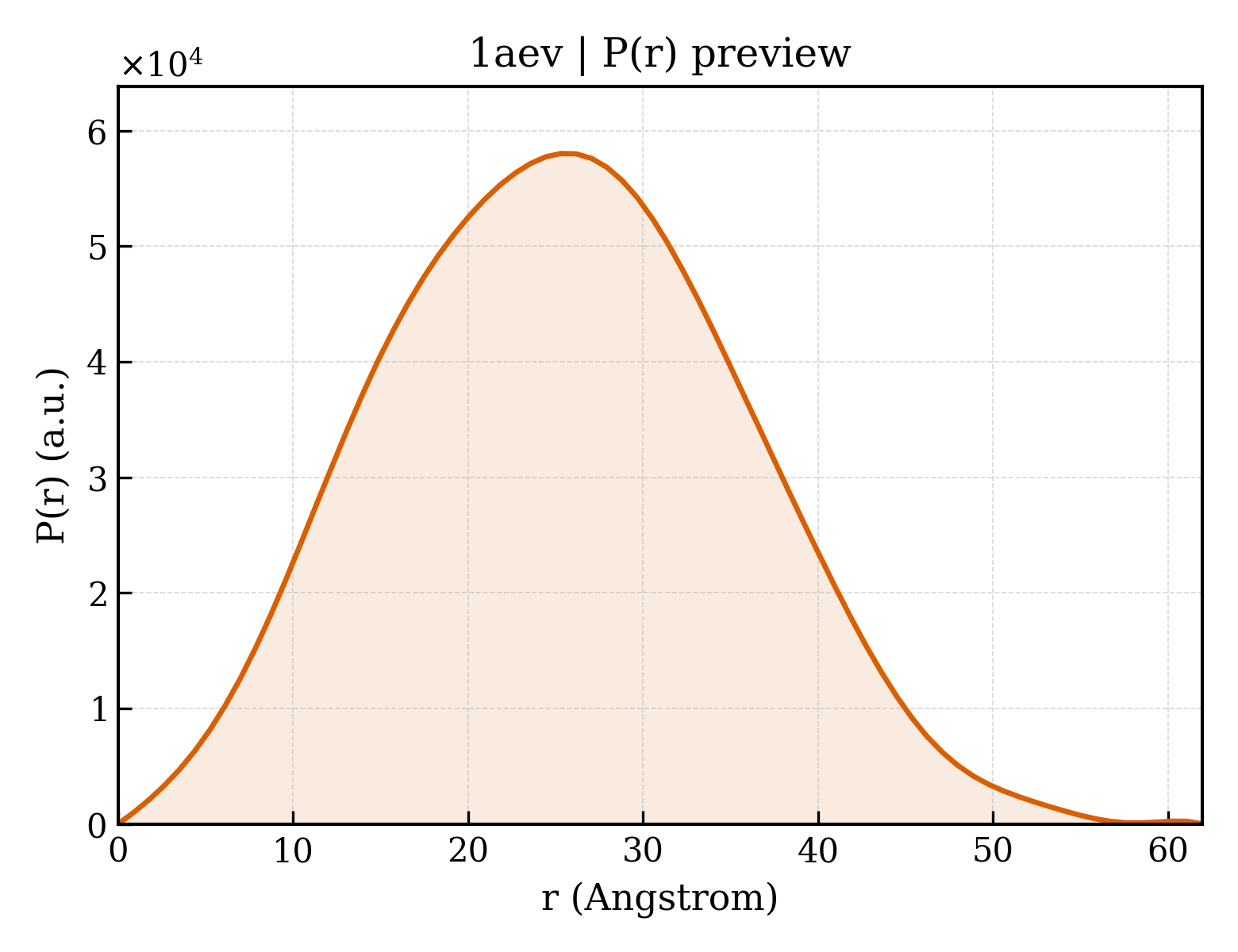

3. P(r) Analysis (GNOM)

dmax	62.0 Å
rg_real	19.35 Å
rg_real_error	0.26 Å
i0_real	1.9620e+07
i0_real_error	2.2250e+05
rg_reciprocal	19.37 Å
i0_reciprocal	19620000.0000
total_estimate	0.7124
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	25.3 Å
skewness	0.143
kurtosis	-0.387
angular_range	— – 0.4100 Å⁻¹
current_alpha	0.0000
highest_alpha	5963000.0000
n_real_points	72
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.864; Stabil: 1.000; Sysdev: 0.226; Positv: 1.000; Valcen: 0.996; Smooth: 0.990

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	CYTOCHROME C PEROXIDASE
formula_weight	33459.2 kDa
ec_number	1.11.1.5
mutation	W191G
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	2941

MKTLVHVASVEKGRSYEDFQKVYNAIALKLREDDEYDNYIGYGPVLVRLAWHISGTWDKHDNTGGSYGGTYRFKKEFNDPSNAGLQNGFKFLEPIHKEFPWISSGDLFSLGGVTAVQEMQGPKIPWRCGRVDTPEDTTPDNGRLPDADKDAGYVRTFFQRLNMNDREVVALMGAHALGKTHLKNSGYEGPGGAANNVFTNEFYLNLLNEDWKLEKNDANNEQWDSKSGYMMLPTDYSLIQDPKYLSIVKEYANDQDKFFKDFSKAFEKLLEDGITFPKDAPSPFIFKTLEEQGL

Source

organism	Saccharomyces cerevisiae
common_name	;baker's yeast ;
ncbi_taxonomy_id	4932
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	PROTOPORPHYRIN IX CONTAINING FE
formula_weight	616.5 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	2-AMINOTHIAZOLE
formula_weight	100.1 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	51

▶

6. Citations (3)

▶

length_a	105.200 Å
length_b	74.300 Å
length_c	45.400 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	2.100 Å
resolution_low	7.000 Å
r_factor	—
r_work	—
r_free	—

fit	/app/data/saxs_computation/ae/1aev/1aev.fit
pddf	/app/data/pr_computation/ae/1aev/1aev.pr.out
profile	/app/data/saxs_computation/ae/1aev/1aev.dat
