1aew
L-CHAIN HORSE APOFERRITIN
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1aew |
| deposition_date | 1997-02-26 |
| title | L-CHAIN HORSE APOFERRITIN |
| keywords | IRON STORAGE, MULTIGENE FAMILY; IRON STORAGE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.49 Å |
| rg_electron | 18.47 Å |
| i0 | 8296720.00 |
| molecular_weight | 20013.0 kDa |
| excluded_volume | 24387 ų |
| envelope_volume | 29052 ų |
| shell_volume | 14292 ų |
| envelope_diameter | 73.1 Å |
| shell_rg | 23.22 Å |
| envelope_rg | 18.78 Å |
| shape_rg | 18.39 Å |
| total_rg | 19.45 Å |
| total_atoms | 1369 |
| n_residues | 170 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

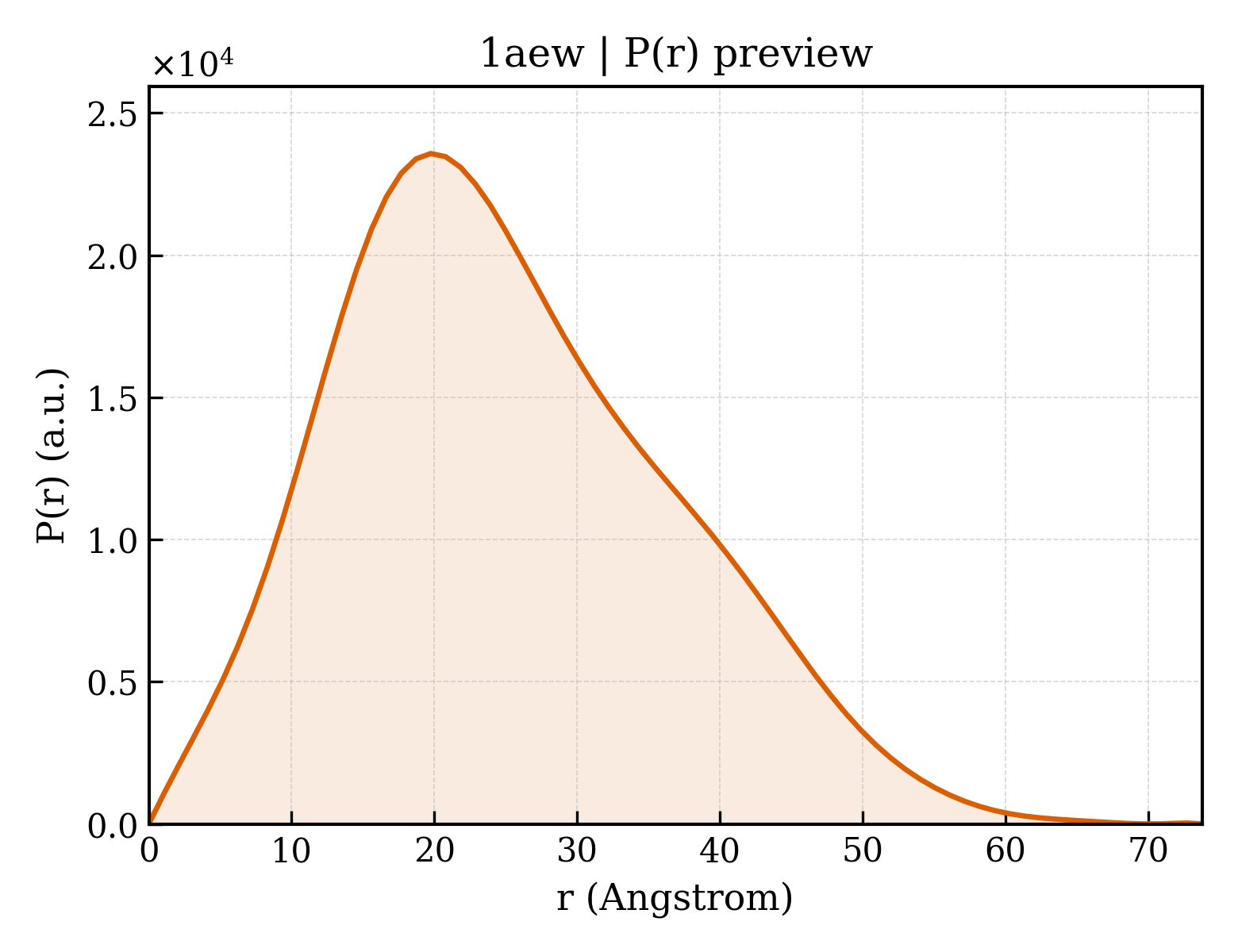

3. P(r) Analysis (GNOM)
| dmax | 73.8 Å |
| rg_real | 19.59 Å |
| rg_real_error | 0.72 Å |
| i0_real | 8.2970e+06 |
| i0_real_error | 1.1520e+05 |
| rg_reciprocal | 19.58 Å |
| i0_reciprocal | 8297000.0000 |
| total_estimate | 0.7901 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 19.8 Å |
| skewness | 0.455 |
| kurtosis | -0.241 |
| angular_range | — – 0.4100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1165000.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.556; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.606; Smooth: 0.994 |
