1af3
RAT BCL-XL AN APOPTOSIS INHIBITORY PROTEIN

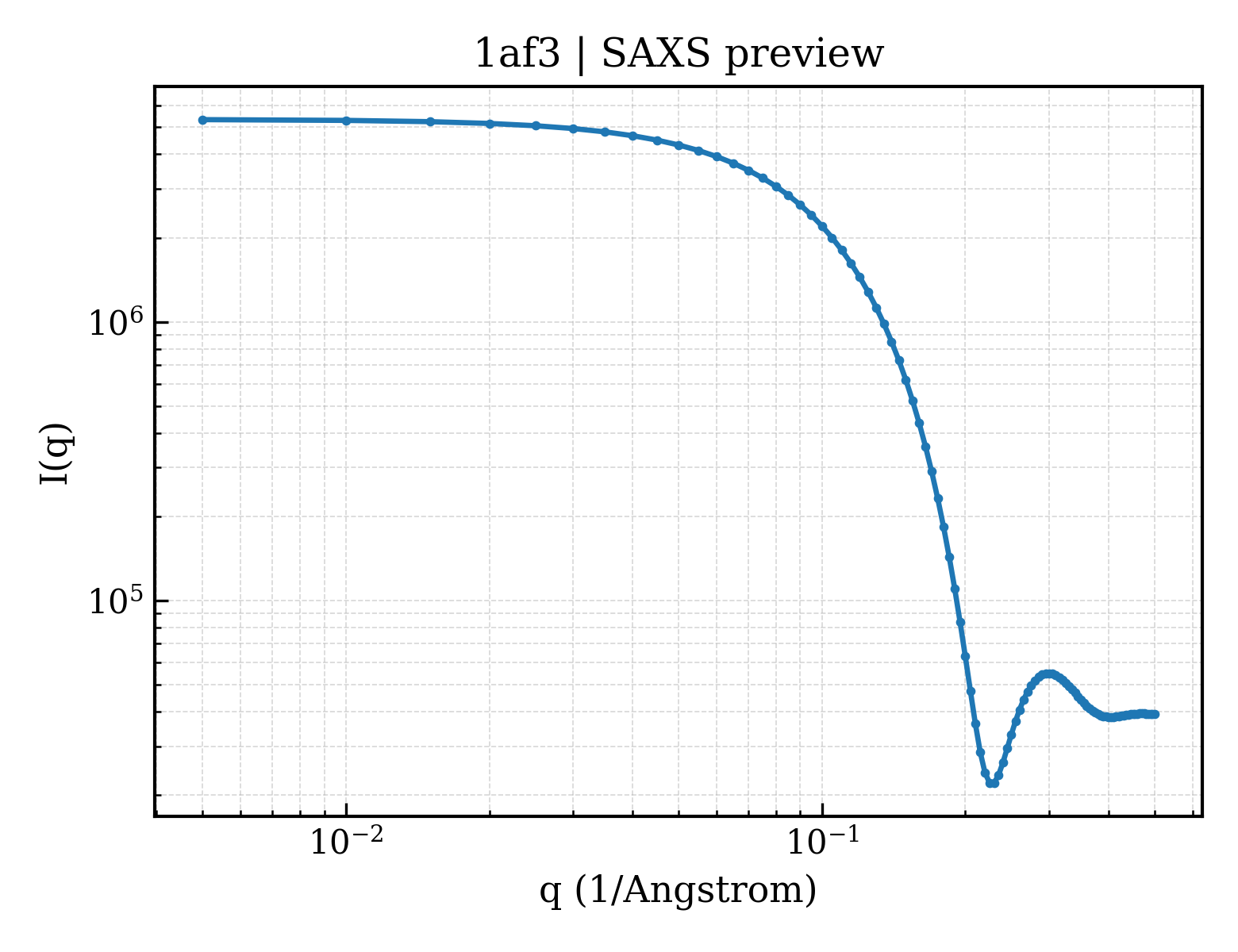

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1af3 |
| deposition_date | 1997-03-21 |
| title | RAT BCL-XL AN APOPTOSIS INHIBITORY PROTEIN |
| keywords | BCL-XL, APOPTOSIS, MITOCHONDRION, ALTERNATIVE SPLICING, REGULATORY PROTEIN; REGULATORY PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.98 Å |
| rg_electron | 14.41 Å |
| i0 | 5332750.00 |
| molecular_weight | 16600.0 kDa |
| excluded_volume | 20741 ų |
| envelope_volume | 23325 ų |
| shell_volume | 13562 ų |
| envelope_diameter | 47.9 Å |
| shell_rg | 20.38 Å |
| envelope_rg | 14.63 Å |
| shape_rg | 14.40 Å |
| total_rg | 15.63 Å |
| total_atoms | 1175 |
| n_residues | 145 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 48.8 Å |
| rg_real | 15.84 Å |
| rg_real_error | 0.22 Å |
| i0_real | 5.3330e+06 |
| i0_real_error | 5.0400e+04 |
| rg_reciprocal | 15.85 Å |
| i0_reciprocal | 5333000.0000 |
| total_estimate | 0.8936 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 21.6 Å |
| skewness | 0.028 |
| kurtosis | -0.417 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1245000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.880; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.974; Smooth: 0.997 |
