1ah2
SERINE PROTEASE PB92 FROM BACILLUS ALCALOPHILUS, NMR, 18 STRUCTURES

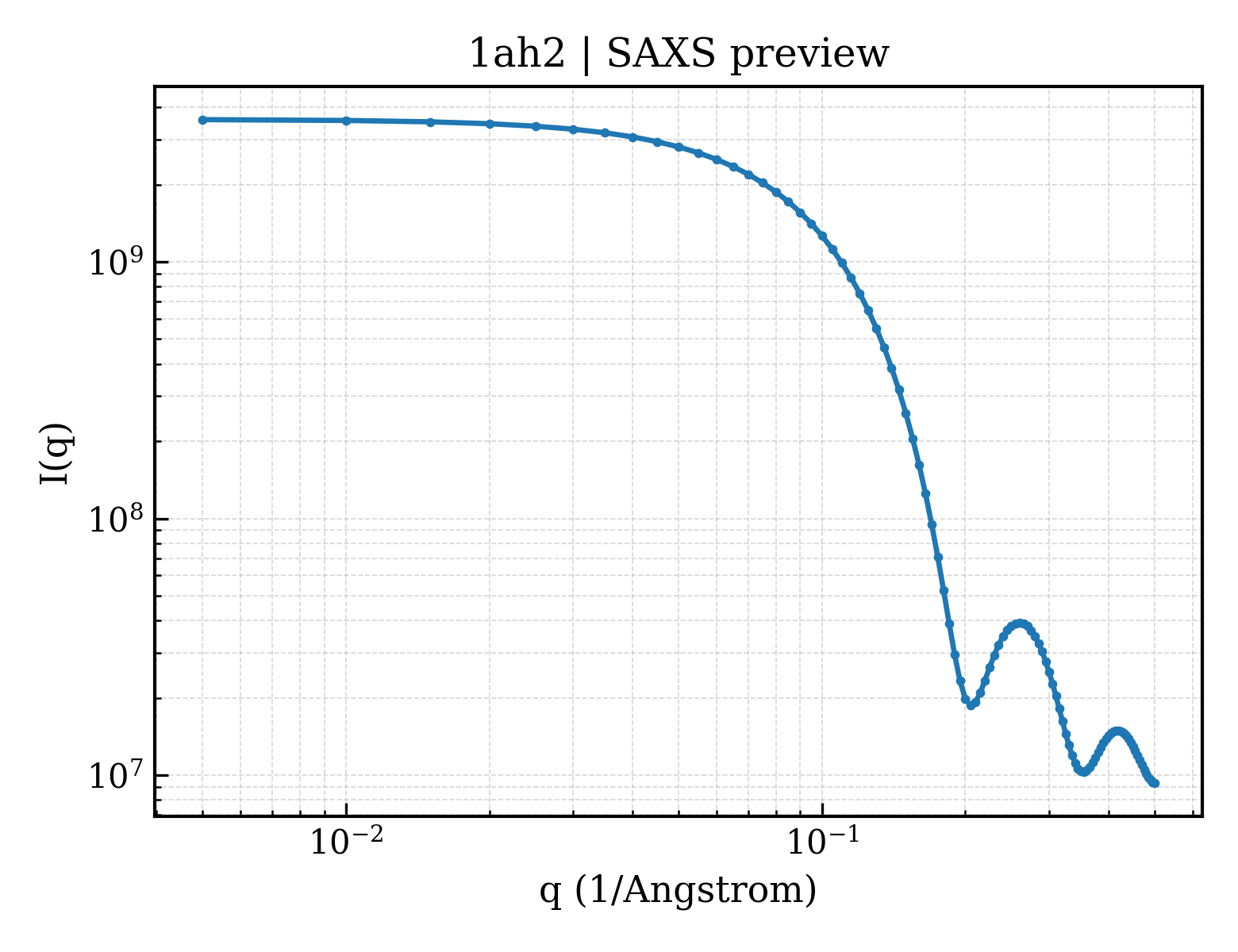

SAXS Profile

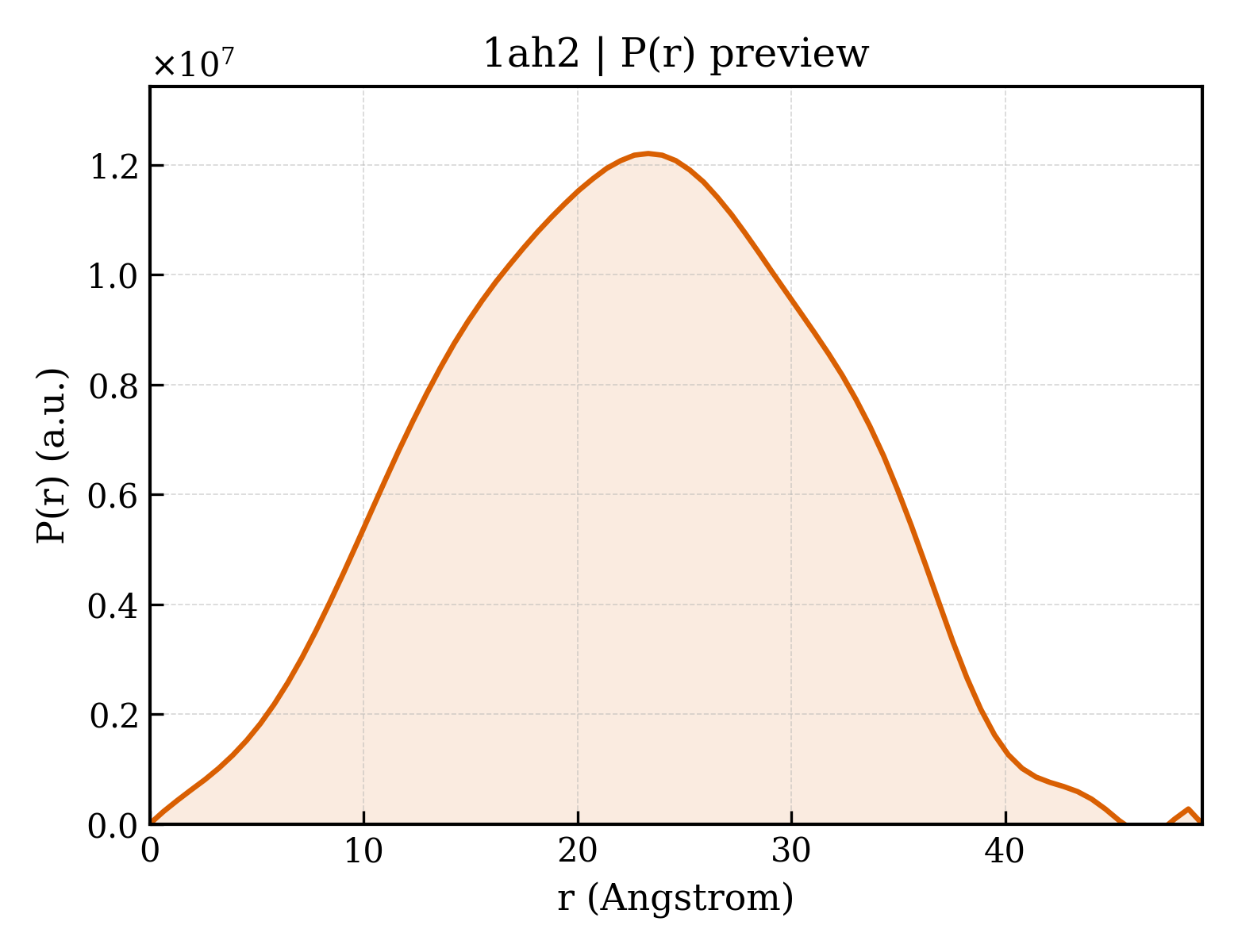

P(r) Distribution
1. Structure Basics
| entry_id | 1ah2 |
| deposition_date | 1997-04-11 |
| title | SERINE PROTEASE PB92 FROM BACILLUS ALCALOPHILUS, NMR, 18 STRUCTURES |
| keywords | SERINE PROTEASE, SUBTILASE, INDUSTRIAL ENZYME, MAXACAL(TM), APPLICATION IN WASHING POWDERS; SERINE PROTEASE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.26 Å |
| rg_electron | 16.77 Å |
| i0 | 3592540000.00 |
| molecular_weight | 481110.0 kDa |
| excluded_volume | 590820 ų |
| envelope_volume | 52126 ų |
| shell_volume | 22648 ų |
| envelope_diameter | 58.2 Å |
| shell_rg | 25.81 Å |
| envelope_rg | 18.57 Å |
| shape_rg | 16.77 Å |
| total_rg | 16.85 Å |
| total_atoms | 66978 |
| n_residues | 4842 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 49.2 Å |
| rg_real | 17.09 Å |
| rg_real_error | 0.18 Å |
| i0_real | 3.5930e+09 |
| i0_real_error | 3.6270e+07 |
| rg_reciprocal | 17.11 Å |
| i0_reciprocal | 3593000000.0000 |
| total_estimate | 0.8299 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.3 Å |
| skewness | -0.035 |
| kurtosis | -0.578 |
| angular_range | — – 0.4600 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3054000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.940; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.967; Smooth: 0.000 |
