1ahl
ANTHOPLEURIN-A,NMR, 20 STRUCTURES

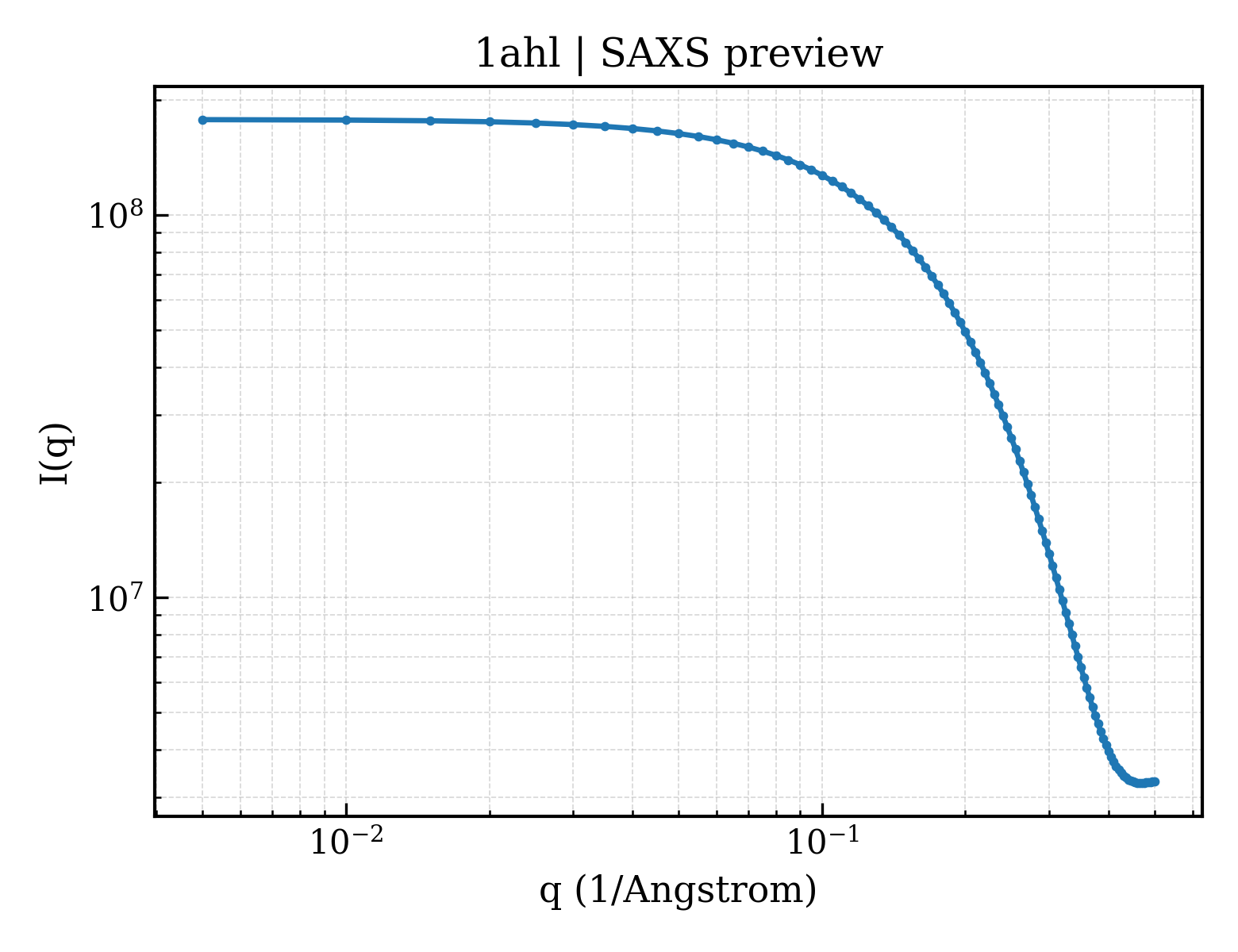

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1ahl |
| deposition_date | 1994-10-28 |
| title | ANTHOPLEURIN-A,NMR, 20 STRUCTURES |
| keywords | NEUROTOXIN, CARDIAC STIMULANT; NEUROTOXIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 10.04 Å |
| rg_electron | 10.47 Å |
| i0 | 178156000.00 |
| molecular_weight | 102780.0 kDa |
| excluded_volume | 124470 ų |
| envelope_volume | 13307 ų |
| shell_volume | 9224 ų |
| envelope_diameter | 43.8 Å |
| shell_rg | 17.89 Å |
| envelope_rg | 13.75 Å |
| shape_rg | 10.51 Å |
| total_rg | 10.55 Å |
| total_atoms | 13680 |
| n_residues | 980 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

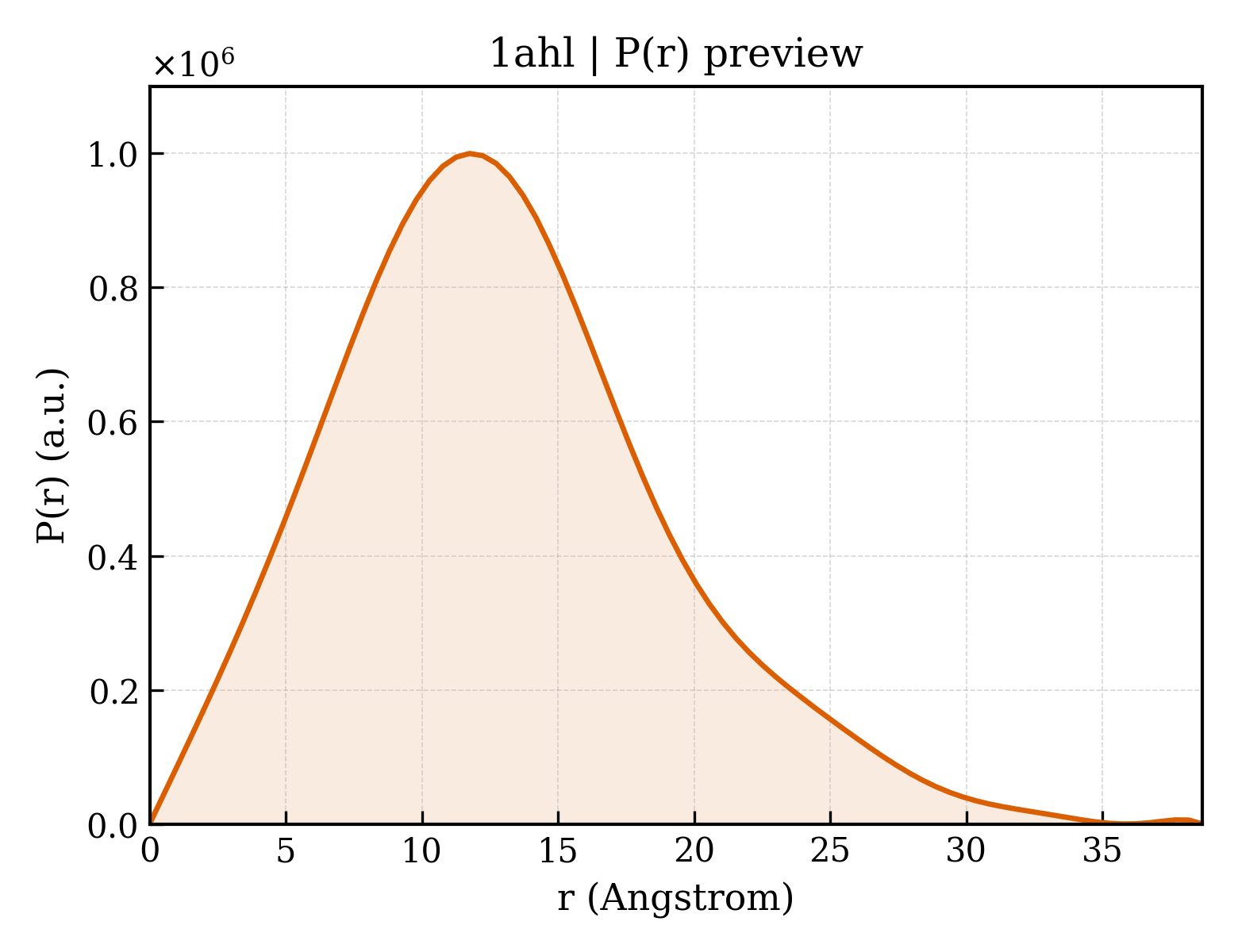

3. P(r) Analysis (GNOM)
| dmax | 38.7 Å |
| rg_real | 10.10 Å |
| rg_real_error | 0.37 Å |
| i0_real | 1.7820e+08 |
| i0_real_error | 1.8430e+06 |
| rg_reciprocal | 10.10 Å |
| i0_reciprocal | 178200000.0000 |
| total_estimate | 0.7885 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 11.8 Å |
| skewness | 0.548 |
| kurtosis | 0.241 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 44560.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.528; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.704; Smooth: 0.959 |
