SAXSdb — 1ahs

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

AFRICAN HORSE SICKNESS VIRUS (SEROTYPE 4) VP7

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 126–251 Chain B； UniProt 126–251 Chain C； UniProt 126–251	Fragment：TOP DOMAIN FRAGMENT	No other associated polymer	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	VP7_AHSV4
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–126； UniProt 126–251 Author chain B； PDBConstruct 1–126； UniProt 126–251 Author chain C； PDBConstruct 1–126； UniProt 126–251

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ahs
Deposition date deposition_date	1996-03-18
Structure title title	CRYSTAL STRUCTURE OF THE TOP DOMAIN OF AFRICAN HORSE SICKNESS VIRUS VP7
Keywords keywords	CORE PROTEIN, GLYCOPROTEIN, COAT PROTEIN (VIRAL), Viral protein; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	21.04 Å
Radius of gyration Rg (electron density) rg_electron	19.94 Å
Forward intensity I(0) i0	28034200.00
Molecular weight molecular_weight	40252.0 kDa
Excluded volume excluded_volume	50195 Å³
Envelope volume envelope_volume	59305 Å³
Hydration-shell volume shell_volume	24135 Å³
Envelope diameter envelope_diameter	63.6 Å
Shell Rg shell_rg	27.08 Å
Envelope Rg envelope_rg	20.07 Å
Shape Rg shape_rg	19.92 Å
Total Rg total_rg	20.88 Å
Total atoms total_atoms	2841
Residues n_residues	378
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	61.1 Å
Rg (real space) rg_real	20.88 Å
Rg uncertainty (real space) rg_real_error	0.30 Å
I(0) (real space) i0_real	2.8030e+07
I(0) uncertainty (real space) i0_real_error	3.5920e+05
Rg (reciprocal space) rg_reciprocal	20.91 Å
I(0) (reciprocal space) i0_reciprocal	28030000.0000
Solution quality estimate total_estimate	0.6451
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	27.5 Å
Skewness Skewness skewness	0.069
Kurtosis Kurtosis kurtosis	-0.553
Angular range angular_range	— – 0.3800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	6786000.0000
Real-space data points n_real_points	70
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.957; Stabil: 1.000; Sysdev: 0.177; Positv: 1.000; Valcen: 0.979; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1ahsa_
Class class	b — All beta proteins
Fold Fold fold	b.19 — Viral protein domain
Superfamily Superfamily superfamily	b.19.1 — Viral protein domain
Family Family family	b.19.1.1 — Top domain of virus capsid protein

Domain ID domain_id	d1ahsb_
Class class	b — All beta proteins
Fold Fold fold	b.19 — Viral protein domain
Superfamily Superfamily superfamily	b.19.1 — Viral protein domain
Family Family family	b.19.1.1 — Top domain of virus capsid protein

Domain ID domain_id	d1ahsc_
Class class	b — All beta proteins
Fold Fold fold	b.19 — Viral protein domain
Superfamily Superfamily superfamily	b.19.1 — Viral protein domain
Family Family family	b.19.1.1 — Top domain of virus capsid protein

CATH v4.4 (3 domains)

Domain ID domain_id	1ahsA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	1ahsB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	1ahsC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	170 —

▶

8. Citations (2)

▶

Unit-cell length a length_a	157.200 Å
Unit-cell length b length_b	157.200 Å
Unit-cell length c length_c	57.700 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	I 4
Space-group number int_tables_number	79
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	0.2130
R_work r_work	0.2130
R_free r_free	—

Description description	AFRICAN HORSE SICKNESS VIRUS (SEROTYPE 4) VP7
Molecular weight formula_weight	13443.1 kDa
Source method src_method	nat
Copy count entity_count	3

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	2902

CRYSTAL STRUCTURE OF THE TOP DOMAIN OF AFRICAN HORSE SICKNESS VIRUS VP7

1. Protein Identity and Related Structures Protein Identity & Related Structures

AFRICAN HORSE SICKNESS VIRUS (SEROTYPE 4) VP7

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

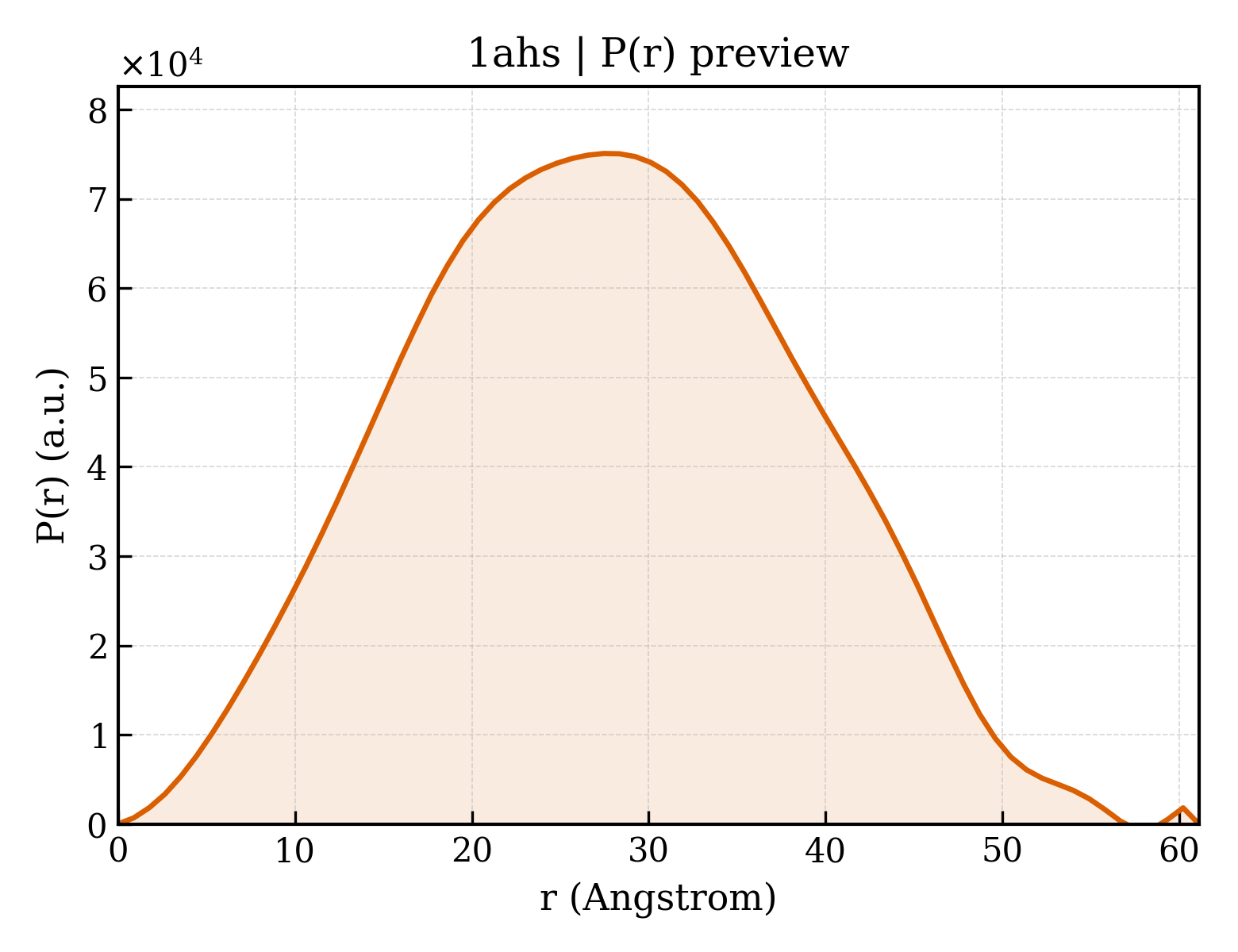

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

CATH v4.4 (3 domains)

8. Citations (2)

9. Files and Curves (10)

Files (7)

Curves (3)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	61

fit	/app/data/saxs_computation/ah/1ahs/1ahs.fit
pddf	/app/data/pr_computation/ah/1ahs/1ahs.pr.out
profile	/app/data/saxs_computation/ah/1ahs/1ahs.dat
