SAXSdb — 1aih

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HP1 INTEGRASE

Haemophilus phage HP1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 5 MAGNESIUM ION × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 3 MAGNESIUM ION × 3 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VINT_BPHP1
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–170； UniProt 168–337 Author chain B； PDBConstruct 1–170； UniProt 168–337 Author chain C； PDBConstruct 1–170； UniProt 168–337 Author chain D； PDBConstruct 1–170； UniProt 168–337

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1aih
Deposition date deposition_date	1997-04-17
Structure title title	CATALYTIC DOMAIN OF BACTERIOPHAGE HP1 INTEGRASE
Keywords keywords	DNA INTEGRATION, RECOMBINATION; DNA INTEGRATION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1aih__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1aih__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

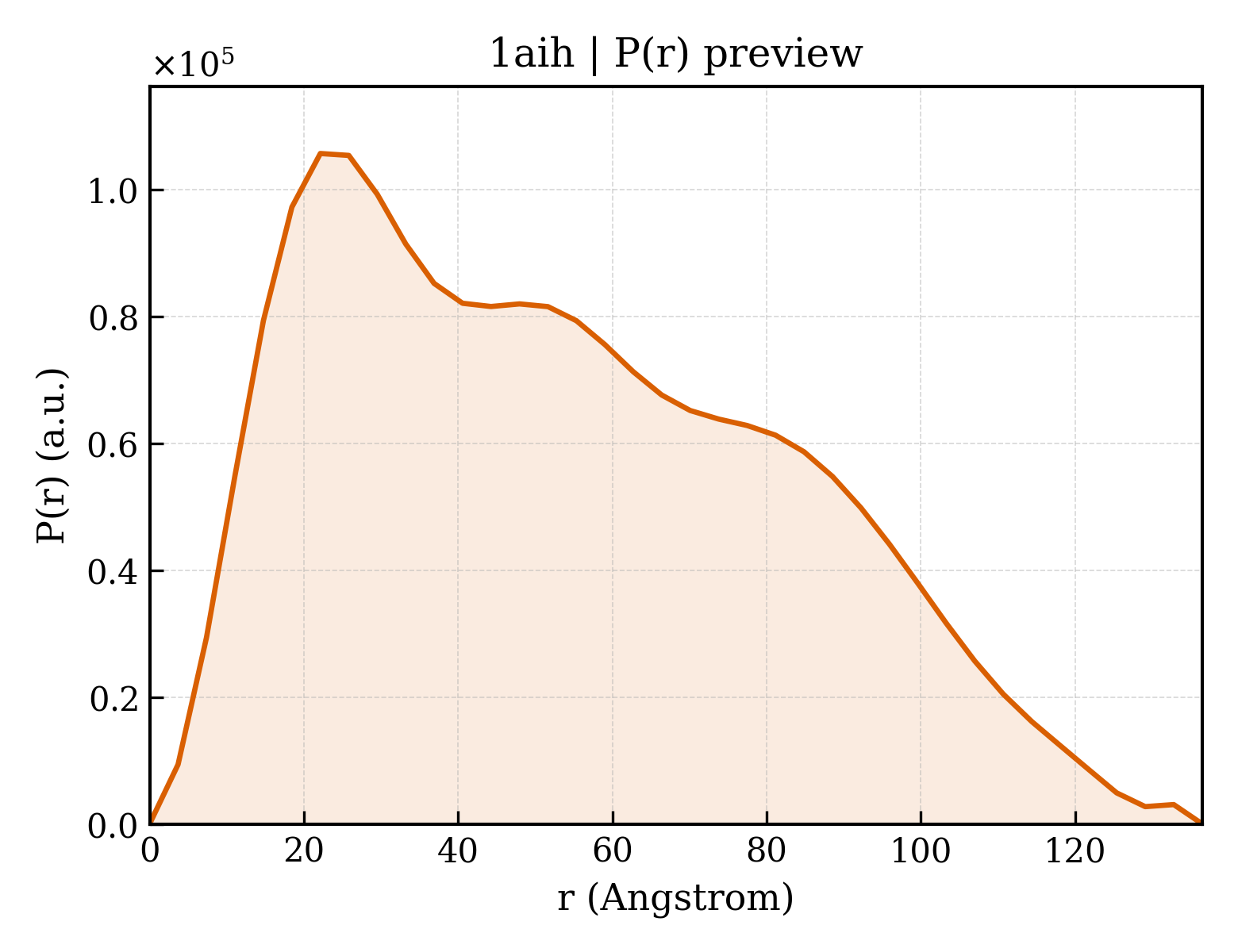

1aih__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.26 Å
Rg (electron density)	25.50 Å
Total Rg	26.21 Å
Atom count	2706
Residues	338
Excluded volume	47967 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1aih__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1aih__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	HP1 INTEGRASE
Molecular weight formula_weight	19457.3 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	5545

ETELAFLYERDIYRLLAECDNSRNPDLGLIVRICLATGARWSEAETLTQSQVMPYKITFTNTKSKKNRTVPISDELFDMLPKKRGRLFNDAYESFENAVLRAEIELPKGQLTHVLRHTFASHFMMNGGNILVLKEILGHSTIEMTMRYAHFAPSHLESAVKFNPLSNPAQ

Source Source

Source organism organism	Haemophilus phage HP1
NCBI taxonomy ID ncbi_taxonomy_id	10690
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	152

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1aiha_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.163 — DNA breaking-rejoining enzymes
Superfamily Superfamily superfamily	d.163.1 — DNA breaking-rejoining enzymes
Family Family family	d.163.1.1 — Lambda integrase-like, catalytic core

Domain ID domain_id	d1aihb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.163 — DNA breaking-rejoining enzymes
Superfamily Superfamily superfamily	d.163.1 — DNA breaking-rejoining enzymes
Family Family family	d.163.1.1 — Lambda integrase-like, catalytic core

Domain ID domain_id	d1aihc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.163 — DNA breaking-rejoining enzymes
Superfamily Superfamily superfamily	d.163.1 — DNA breaking-rejoining enzymes
Family Family family	d.163.1.1 — Lambda integrase-like, catalytic core

Domain ID domain_id	d1aihd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.163 — DNA breaking-rejoining enzymes
Superfamily Superfamily superfamily	d.163.1 — DNA breaking-rejoining enzymes
Family Family family	d.163.1.1 — Lambda integrase-like, catalytic core

CATH v4.4 (4 domains)

Domain ID domain_id	1aihA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	443 — hpI Integrase; Chain A
Homologous superfamily homologous superfamily	10 — Intergrase catalytic core

Domain ID domain_id	1aihB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	443 — hpI Integrase; Chain A
Homologous superfamily homologous superfamily	10 — Intergrase catalytic core

Domain ID domain_id	1aihC00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	443 — hpI Integrase; Chain A
Homologous superfamily homologous superfamily	10 — Intergrase catalytic core

Domain ID domain_id	1aihD00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	443 — hpI Integrase; Chain A
Homologous superfamily homologous superfamily	10 — Intergrase catalytic core

▶

Unit-cell length a length_a	42.400 Å
Unit-cell length b length_b	129.300 Å
Unit-cell length c length_c	234.200 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2090
R_work r_work	0.2090
R_free r_free	0.2720

CATALYTIC DOMAIN OF BACTERIOPHAGE HP1 INTEGRASE
