1ajh

PHOTOPRODUCT OF CARBONMONOXY MYOGLOBIN AT 40 K

Method: X-RAY DIFFRACTION D_max: 50.5 Å Quality: GOOD

SAXS Profile

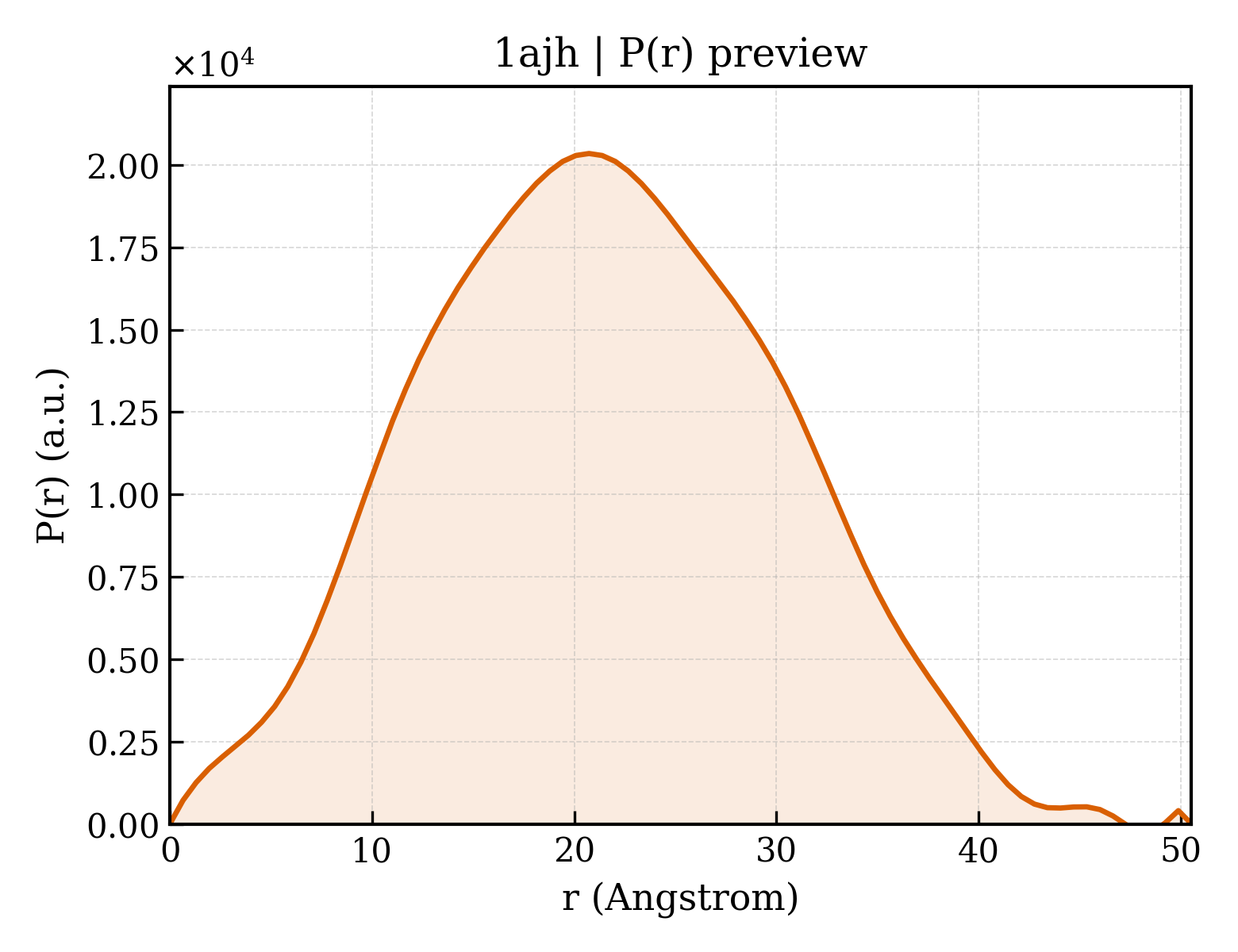

P(r) Distribution

▼

1. Structure Basics

entry_id	1ajh
deposition_date	1997-05-02
title	PHOTOPRODUCT OF CARBONMONOXY MYOGLOBIN AT 40 K
keywords	OXYGEN TRANSPORT, RESPIRATORY PROTEIN, HEME, PHOTOPRODUCT INTERMEDIATE; OXYGEN TRANSPORT
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	16.45 Å
rg_electron	15.03 Å
i0	5865970.00
molecular_weight	18039.0 kDa
excluded_volume	22777 Å³
envelope_volume	24602 Å³
shell_volume	13848 Å³
envelope_diameter	52.0 Å
shell_rg	20.91 Å
envelope_rg	15.28 Å
shape_rg	14.99 Å
total_rg	16.23 Å
total_atoms	1272
n_residues	153
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	50.5 Å
rg_real	16.33 Å
rg_real_error	0.26 Å
i0_real	5.8660e+06
i0_real_error	6.3340e+04
rg_reciprocal	16.35 Å
i0_reciprocal	5866000.0000
total_estimate	0.8222
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	20.7 Å
skewness	0.095
kurtosis	-0.470
angular_range	— – 0.4850 Å⁻¹
current_alpha	0.0000
highest_alpha	870000.0000
n_real_points	79
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.904; Stabil: 0.995; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	MYOGLOBIN
formula_weight	17235.0 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	1479

VLSEGEWQLVLHVWAKVEADVAGHGQDILIRLFKSHPETLEKFDRFKHLKTEAEMKASEDLKKHGVTVLTALGAILKKKGHHEAELKPLAQSHATKHKIPIKYLEFISEAIIHVLHSRHPGDFGADAQGAMNKALELFRKDIAAKYKELGYQG

Entity 2 non-polymer

description	SULFATE ION
formula_weight	96.1 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	PROTOPORPHYRIN IX CONTAINING FE
formula_weight	616.5 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	CARBON MONOXIDE
formula_weight	28.0 kDa
src_method	syn
entity_count	1

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	183

▶

6. Citations (2)

▶

length_a	63.450 Å
length_b	30.440 Å
length_c	34.130 Å
angle_alpha	90.00 °
angle_beta	105.70 °
angle_gamma	90.00 °
z_pdb	2

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	1.690 Å
resolution_low	10.000 Å
r_factor	0.1710
r_work	0.1710
r_free	0.2340

fit	/app/data/saxs_computation/aj/1ajh/1ajh.fit
pddf	/app/data/pr_computation/aj/1ajh/1ajh.pr.out
profile	/app/data/saxs_computation/aj/1ajh/1ajh.dat
