1ak6
DESTRIN, NMR, MINIMIZED AVERAGE STRUCTURE
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1ak6 |
| deposition_date | 1997-05-29 |
| title | DESTRIN, NMR, MINIMIZED AVERAGE STRUCTURE |
| keywords | ACTIN DEPOLYMERIZATION FACTOR, ACTIN-BINDING PROTEIN; ACTIN-BINDING PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.08 Å |
| rg_electron | 15.84 Å |
| i0 | 6685840.00 |
| molecular_weight | 19353.0 kDa |
| excluded_volume | 24441 ų |
| envelope_volume | 26143 ų |
| shell_volume | 14075 ų |
| envelope_diameter | 61.1 Å |
| shell_rg | 21.74 Å |
| envelope_rg | 16.70 Å |
| shape_rg | 15.76 Å |
| total_rg | 17.11 Å |
| total_atoms | 2738 |
| n_residues | 174 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

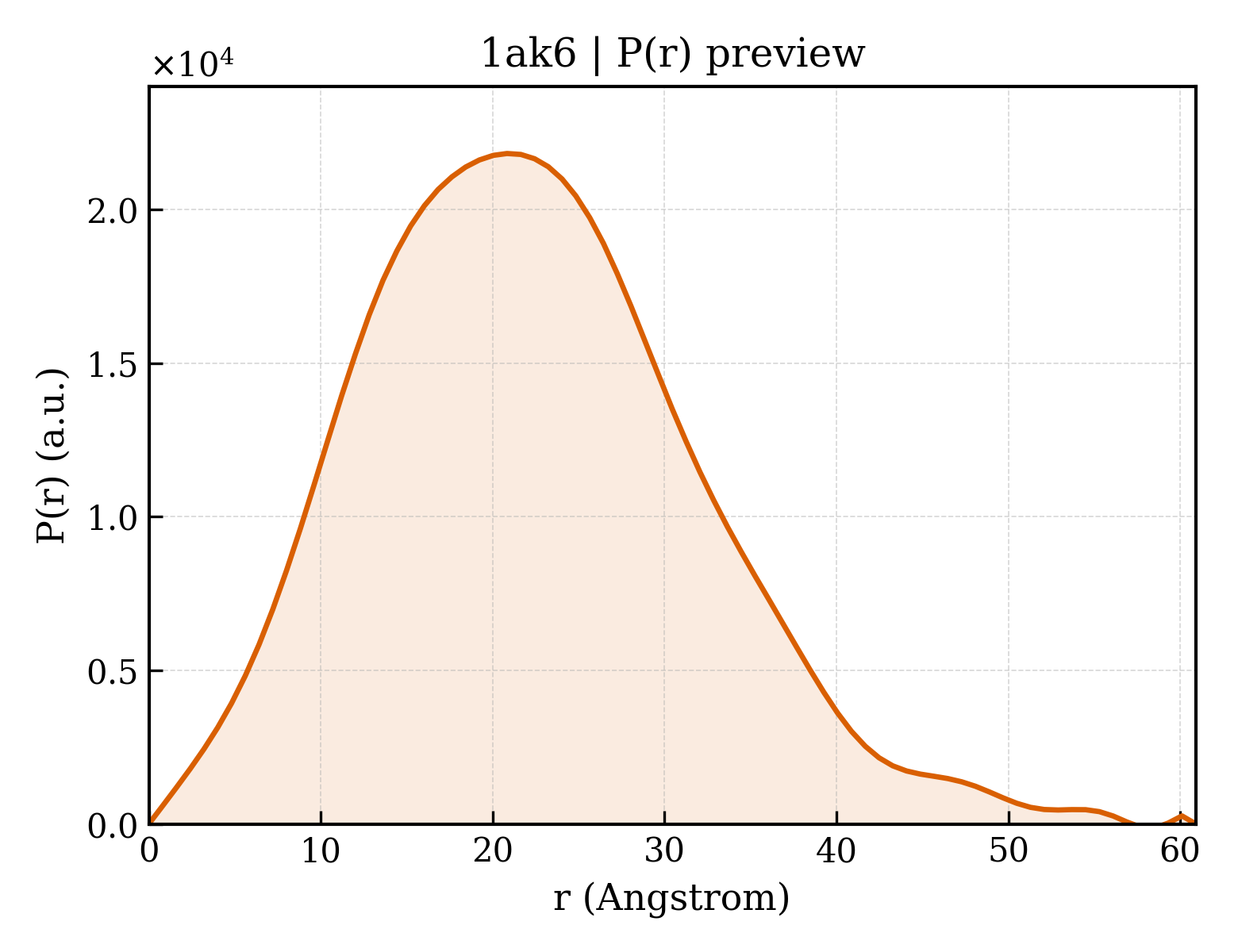

3. P(r) Analysis (GNOM)
| dmax | 60.9 Å |
| rg_real | 17.08 Å |
| rg_real_error | 0.48 Å |
| i0_real | 6.6860e+06 |
| i0_real_error | 9.8480e+04 |
| rg_reciprocal | 17.08 Å |
| i0_reciprocal | 6686000.0000 |
| total_estimate | 0.5924 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 20.8 Å |
| skewness | 0.440 |
| kurtosis | 0.119 |
| angular_range | — – 0.4650 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1711000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.662; Stabil: 0.999; Sysdev: 0.257; Positv: 1.000; Valcen: 0.943; Smooth: 0.000 |
