1ako
EXONUCLEASE III FROM ESCHERICHIA COLI

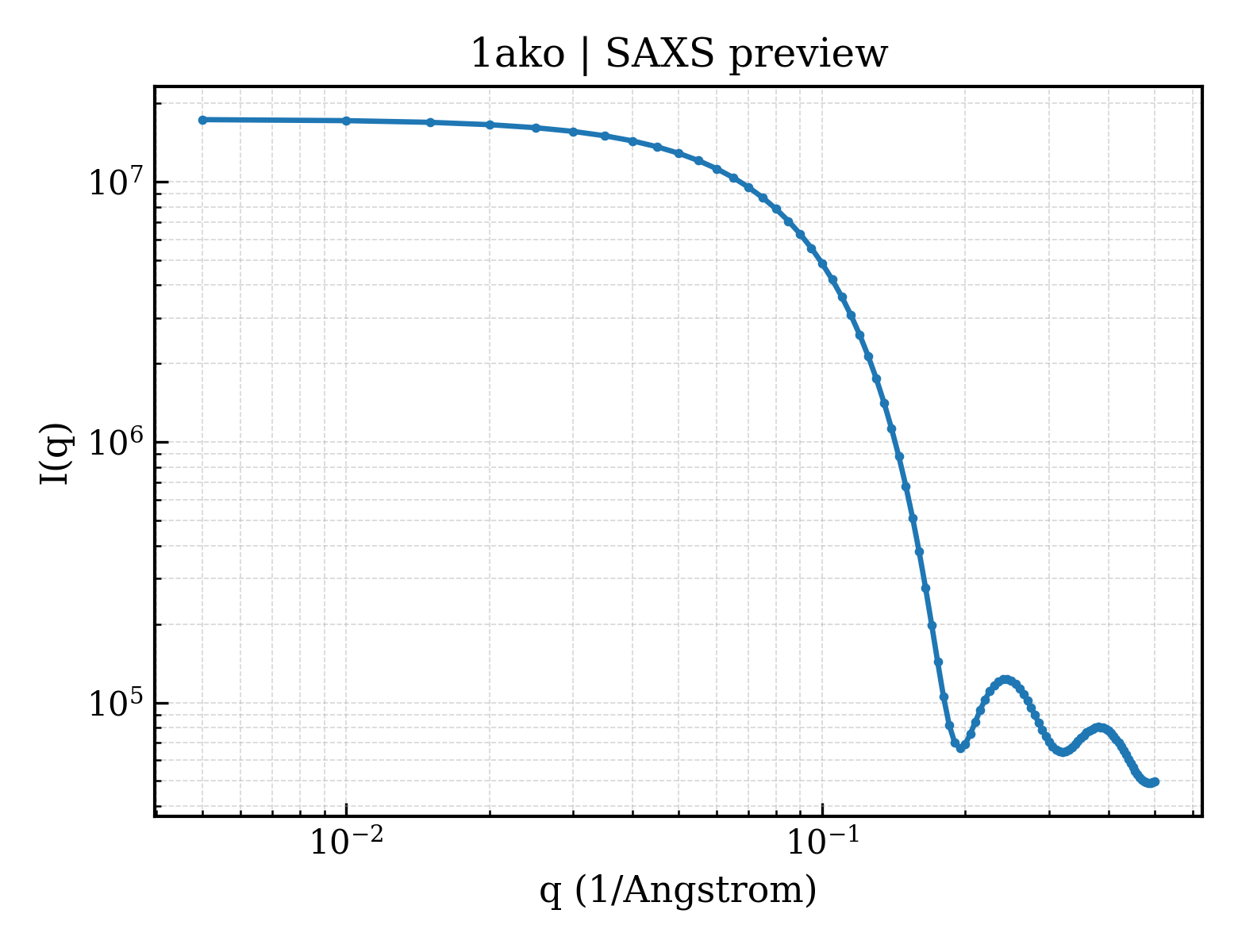

SAXS Profile

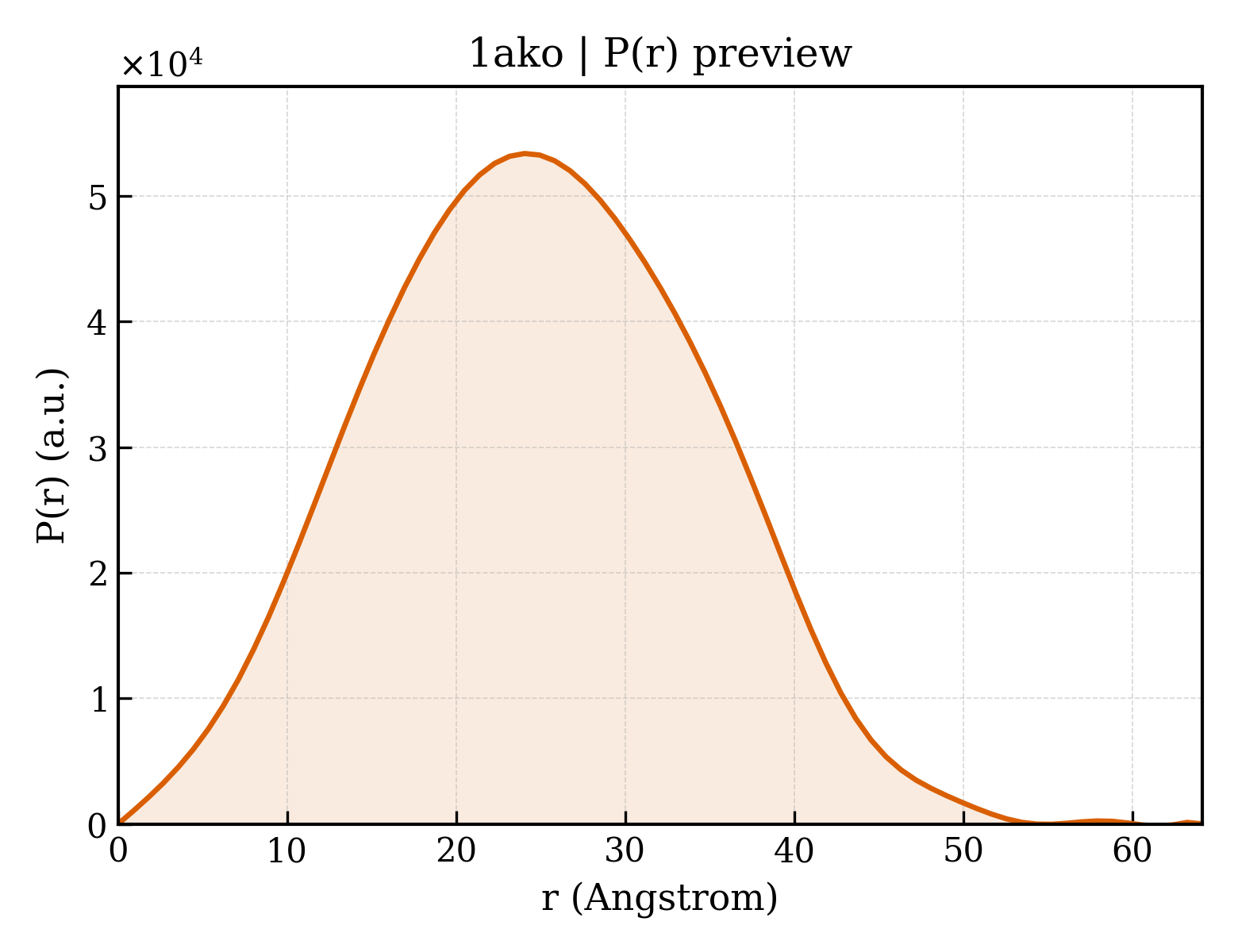

P(r) Distribution
1. Structure Basics
| entry_id | 1ako |
| deposition_date | 1997-05-26 |
| title | EXONUCLEASE III FROM ESCHERICHIA COLI |
| keywords | NUCLEASE, EXONUCLEASE, AP-ENDONUCLEASE, DNA REPAIR; NUCLEASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.98 Å |
| rg_electron | 17.69 Å |
| i0 | 17328500.00 |
| molecular_weight | 30963.0 kDa |
| excluded_volume | 38557 ų |
| envelope_volume | 44139 ų |
| shell_volume | 20158 ų |
| envelope_diameter | 60.4 Å |
| shell_rg | 24.63 Å |
| envelope_rg | 18.07 Å |
| shape_rg | 17.67 Å |
| total_rg | 18.77 Å |
| total_atoms | 2183 |
| n_residues | 268 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 64.1 Å |
| rg_real | 18.82 Å |
| rg_real_error | 0.40 Å |
| i0_real | 1.7330e+07 |
| i0_real_error | 1.8520e+05 |
| rg_reciprocal | 18.85 Å |
| i0_reciprocal | 17330000.0000 |
| total_estimate | 0.7845 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 24.1 Å |
| skewness | 0.074 |
| kurtosis | -0.452 |
| angular_range | — – 0.4200 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 4779000.0000 |
| n_real_points | 73 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.732; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.000 |
