1akp
SEQUENTIAL 1H,13C AND 15N NMR ASSIGNMENTS AND SOLUTION CONFORMATION OF APOKEDARCIDIN

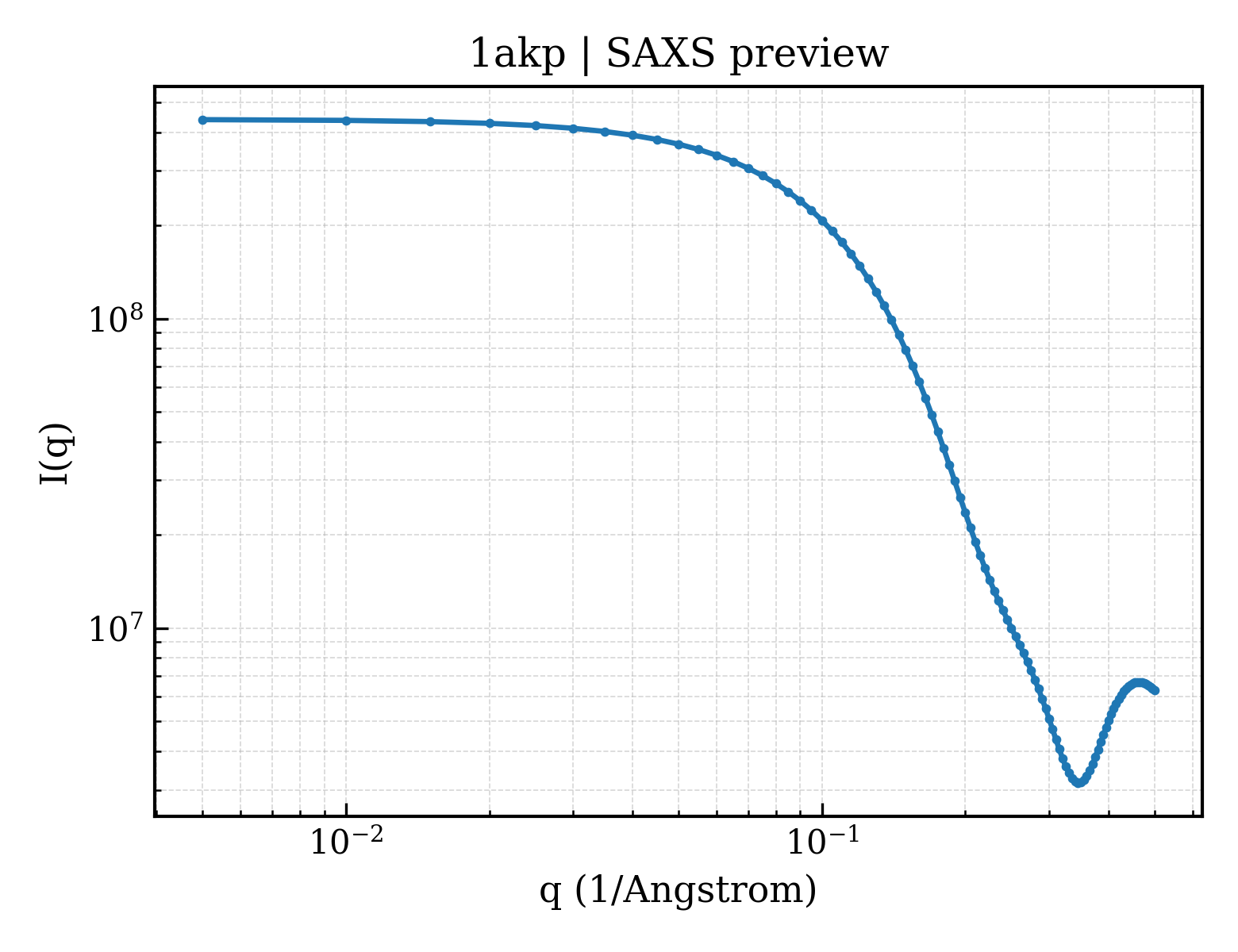

SAXS Profile

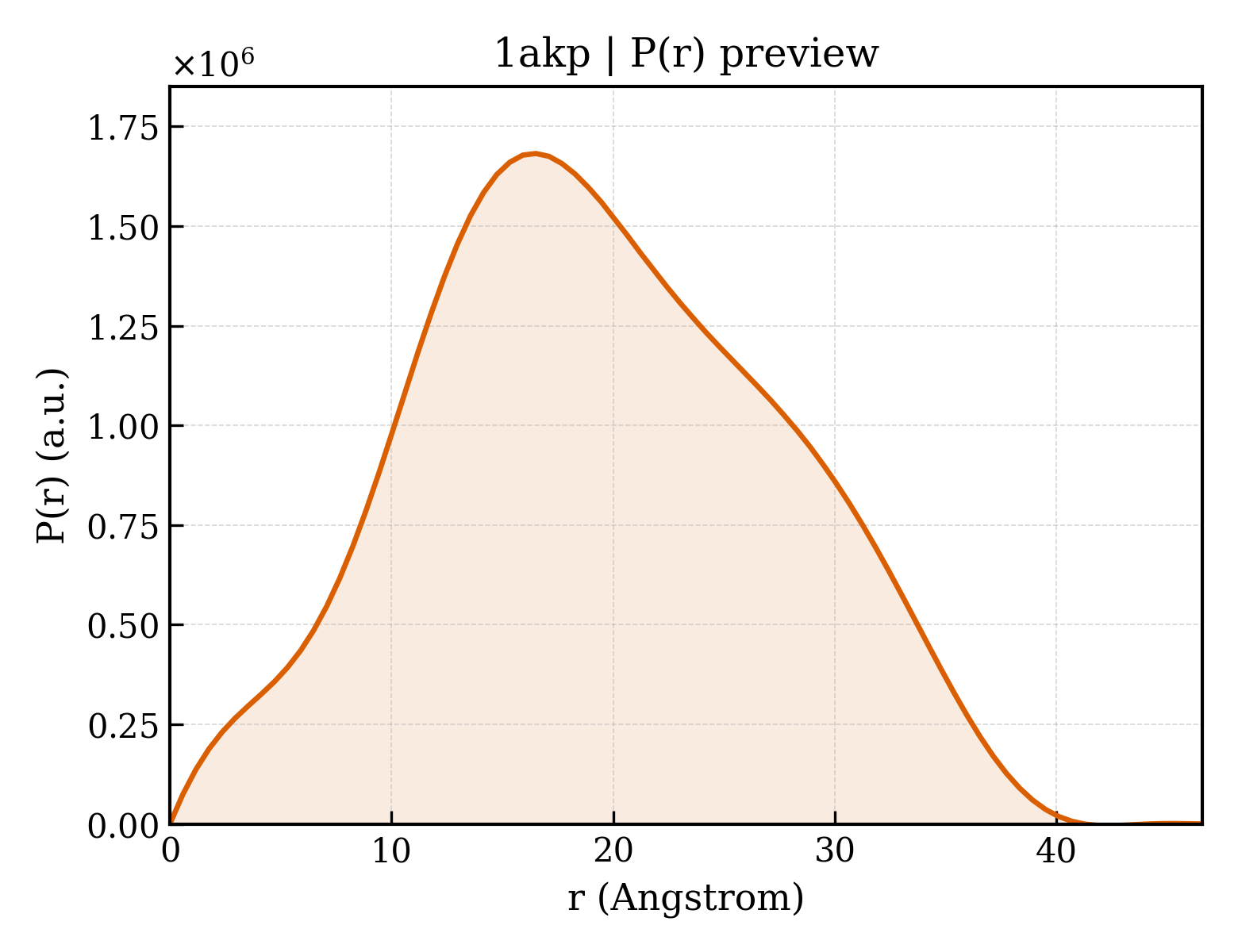

P(r) Distribution
1. Structure Basics
| entry_id | 1akp |
| deposition_date | 1994-06-20 |
| title | SEQUENTIAL 1H,13C AND 15N NMR ASSIGNMENTS AND SOLUTION CONFORMATION OF APOKEDARCIDIN |
| keywords | ANTIBIOTIC CHROMOPROTEIN; ANTIBIOTIC CHROMOPROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.91 Å |
| rg_electron | 14.64 Å |
| i0 | 440289000.00 |
| molecular_weight | 164410.0 kDa |
| excluded_volume | 200330 ų |
| envelope_volume | 24420 ų |
| shell_volume | 13641 ų |
| envelope_diameter | 50.0 Å |
| shell_rg | 20.88 Å |
| envelope_rg | 15.49 Å |
| shape_rg | 14.66 Å |
| total_rg | 14.72 Å |
| total_atoms | 22275 |
| n_residues | 1710 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 46.6 Å |
| rg_real | 14.83 Å |
| rg_real_error | 0.25 Å |
| i0_real | 4.4030e+08 |
| i0_real_error | 4.9670e+06 |
| rg_reciprocal | 14.84 Å |
| i0_reciprocal | 440300000.0000 |
| total_estimate | 0.8923 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.5 Å |
| skewness | 0.105 |
| kurtosis | -0.599 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 374400.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.866; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.998 |
