1am2
GYRA INTEIN FROM MYCOBACTERIUM XENOPI
SAXS Profile

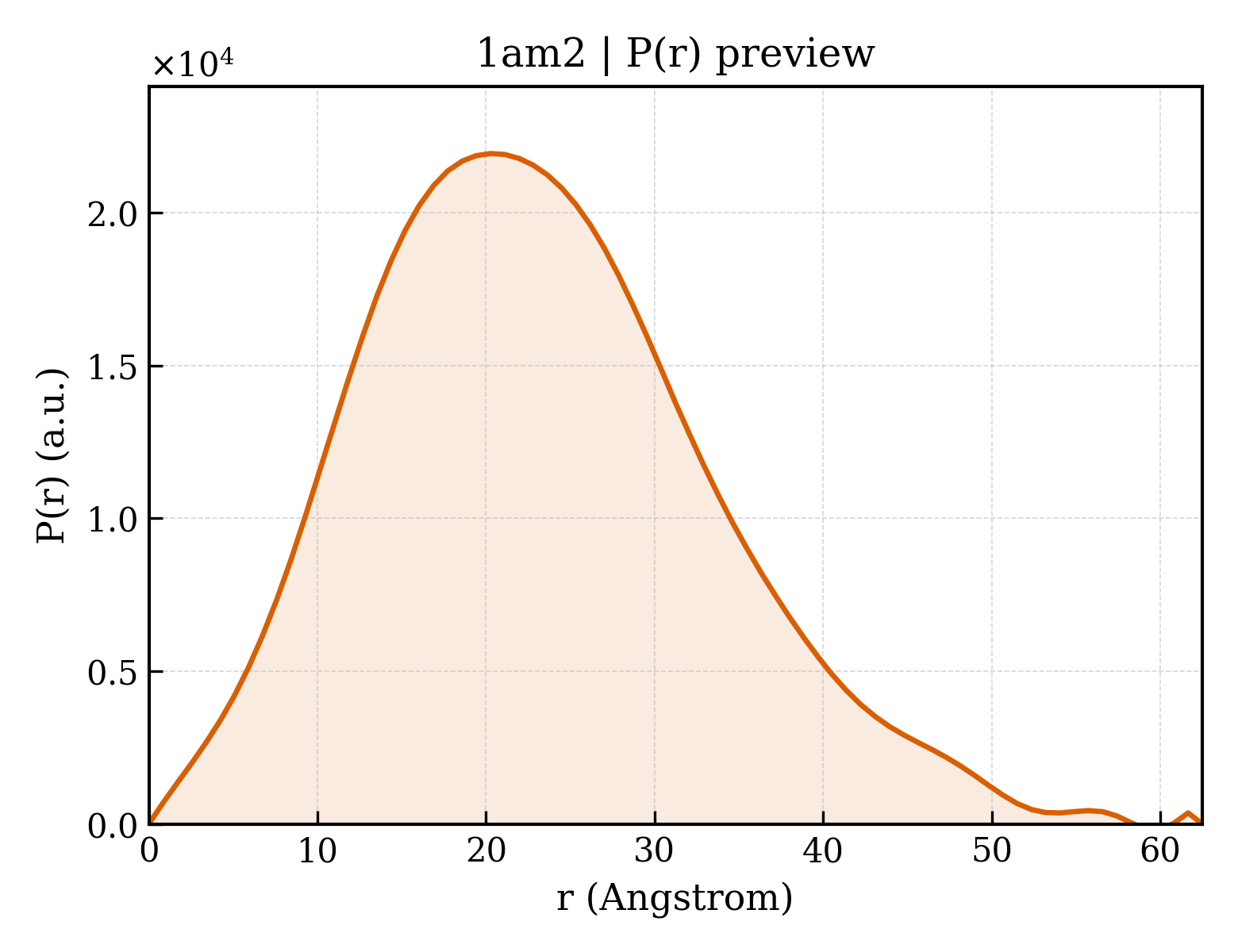

P(r) Distribution
1. Structure Basics
| entry_id | 1am2 |
| deposition_date | 1997-06-20 |
| title | GYRA INTEIN FROM MYCOBACTERIUM XENOPI |
| keywords | INTEIN, PROTEIN SPLICING; INTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.78 Å |
| rg_electron | 16.70 Å |
| i0 | 7032270.00 |
| molecular_weight | 19419.0 kDa |
| excluded_volume | 24326 ų |
| envelope_volume | 27413 ų |
| shell_volume | 14389 ų |
| envelope_diameter | 64.6 Å |
| shell_rg | 22.15 Å |
| envelope_rg | 17.06 Å |
| shape_rg | 16.70 Å |
| total_rg | 17.65 Å |
| total_atoms | 1374 |
| n_residues | 181 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 62.5 Å |
| rg_real | 17.80 Å |
| rg_real_error | 0.49 Å |
| i0_real | 7.0320e+06 |
| i0_real_error | 8.6430e+04 |
| rg_reciprocal | 17.80 Å |
| i0_reciprocal | 7032000.0000 |
| total_estimate | 0.7750 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 20.3 Å |
| skewness | 0.431 |
| kurtosis | -0.041 |
| angular_range | — – 0.4450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1523000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.700; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.971; Smooth: 0.000 |
