1am7

Lysozyme from bacteriophage lambda

Method: X-RAY DIFFRACTION Dmax: 86.7 Å Quality: GOOD

SAXS Profile

SAXS profile for 1am7

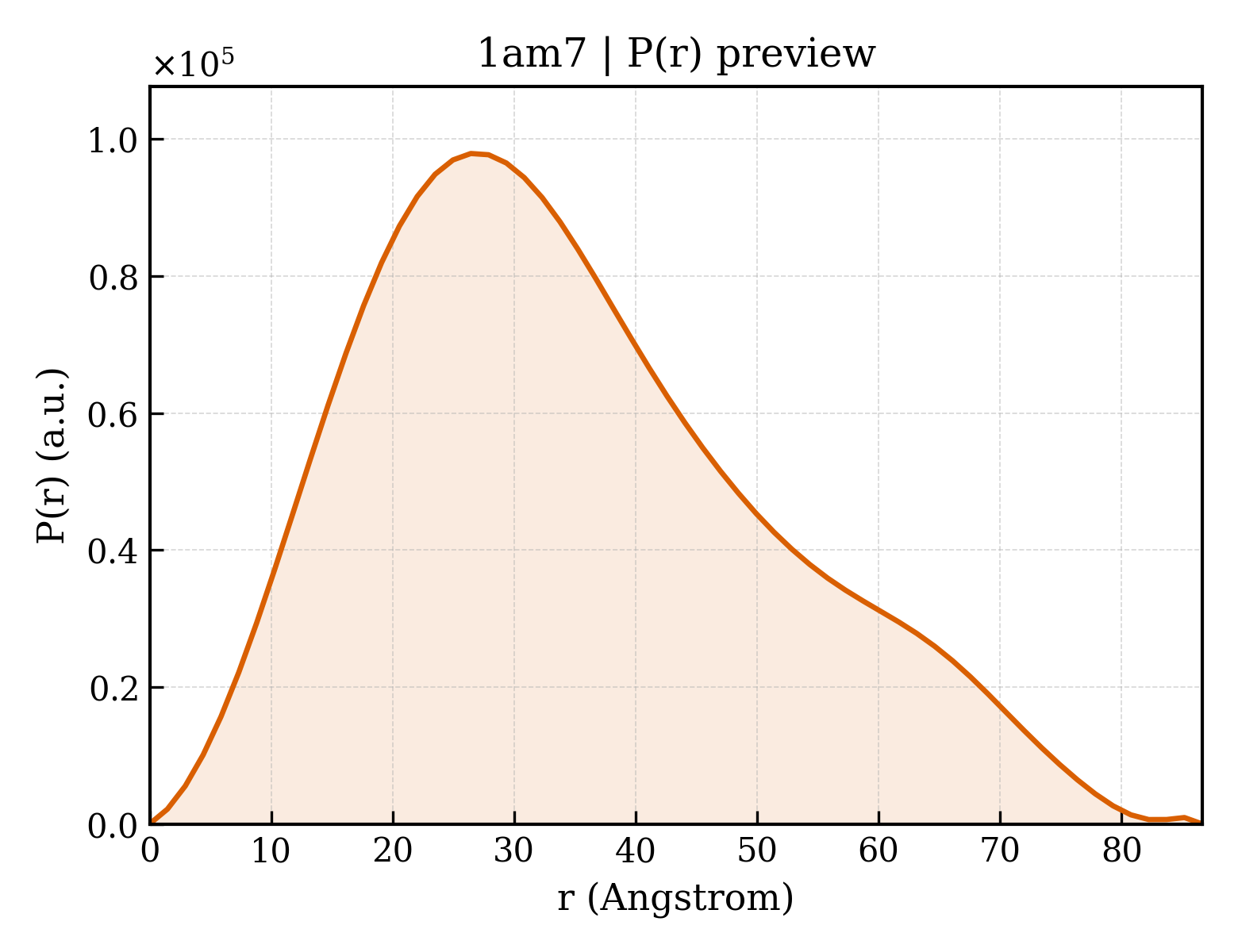

P(r) Distribution

P(r) distribution for 1am7

1. Structure Basics

entry_id1am7
deposition_date1997-06-24
titleLysozyme from bacteriophage lambda
keywordsGLYCOSIDASE, TRANSGLYCOSYLASE, EVOLUTION, LYSOZYME; GLYCOSIDASE
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier26.86
rg_electron26.33
i048183800.00
molecular_weight52278.0 kDa
excluded_volume64922 ų
envelope_volume79995 ų
shell_volume26732 ų
envelope_diameter88.3
shell_rg32.49
envelope_rg26.24
shape_rg26.32
total_rg27.03
total_atoms3684
n_residues450
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax86.7
rg_real27.04
rg_real_error0.66
i0_real4.8180e+07
i0_real_error7.7120e+05
rg_reciprocal26.99
i0_reciprocal48180000.0000
total_estimate0.8651
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary26.4
skewness0.499
kurtosis-0.388
angular_range— – 0.2950 −1
current_alpha0.0000
highest_alpha8670000.0000
n_real_points60
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.838; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.884; Smooth: 0.845

4. Crystallography & Experiment

5. Entities & Polymer Info (3)

6. Citations (7)

7. Files & Curves (10)
