SAXSdb — 1am9

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (STEROL REGULATORY ELEMENT BINDING PROTEIN 1A)

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Homooligomer	Protein 4 DNA 4	;DNA (5'-D(TPTPGPCPAPGPTPGPGPGPGPTPGPAPTPCPT )-3') ; × 2 ;DNA (5'-D(CPAPTPGPAPGPAPTPCPAPCPCPCPCPAPCPT PGPCPAPA)-3') ; × 2 MAGNESIUM ION × 2 water × 8	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SRBP1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–82； UniProt 319–400 Author chain B； PDBConstruct 1–82； UniProt 319–400 Author chain C； PDBConstruct 1–82； UniProt 319–400 Author chain D； PDBConstruct 1–82； UniProt 319–400

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1am9
Deposition date deposition_date	1997-06-25
Structure title title	HUMAN SREBP-1A BOUND TO LDL RECEPTOR PROMOTER
Keywords keywords	;STEROL REGULATORY ELEMENT BINDING PROTEIN, BASIC-HELIX-LOOP-HELIX-LEUCINE ZIPPER, SREBP, TRANSCRIPTION FACTOR, COMPLEX (TRANSCRIPTION REGULATION-DNA), TRANSCRIPTION-DNA COMPLEX ;; TRANSCRIPTION/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1am9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1am9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

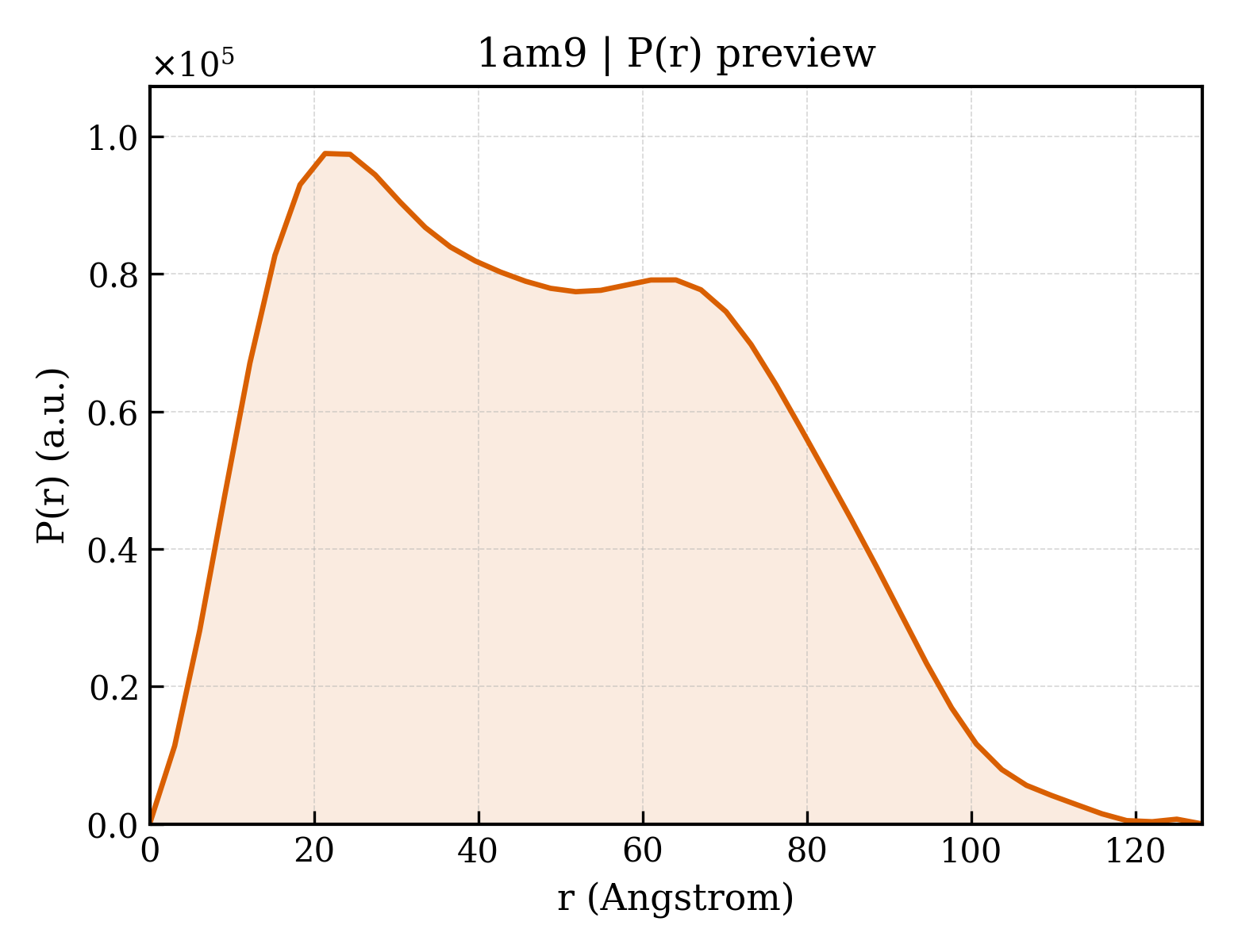

1am9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.71 Å
Rg (electron density)	38.38 Å
Total Rg	38.45 Å
Atom count	3989
Residues	389
Excluded volume	65999 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1am9__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	;DNA (5'-D(TPTPGPCPAPGPTPGPGPGPGPTPGPAPTPCP*T )-3') ;
Molecular weight formula_weight	5289.4 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	E,G
Atom count atom_count	4288

TTGCAGTGGGGTGATCT

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(CPAPTPGPAPGPAPTPCPAPCPCPCPCPAPCPT PGPCPAP*A)-3') ;
Molecular weight formula_weight	6361.1 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	F,H

CATGAGATCACCCCACTGCAA

Entity 3 Entity 3 polymer

Description description	PROTEIN (STEROL REGULATORY ELEMENT BINDING PROTEIN 1A)
Molecular weight formula_weight	9493.0 kDa
Mutation mutation	C404S
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D

QSRGEKRTAHNAIEKRYRSSINDKIIELKDLVVGTEAKLNKSAVLRKAIDYIRFLQHSNQKLKQENLSLRTAVHKSKSLKDL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	299

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1am9a_
Class class	a — All alpha proteins
Fold Fold fold	a.38 — HLH-like
Superfamily Superfamily superfamily	a.38.1 — HLH, helix-loop-helix DNA-binding domain
Family Family family	a.38.1.1 — HLH, helix-loop-helix DNA-binding domain

Domain ID domain_id	d1am9b_
Class class	a — All alpha proteins
Fold Fold fold	a.38 — HLH-like
Superfamily Superfamily superfamily	a.38.1 — HLH, helix-loop-helix DNA-binding domain
Family Family family	a.38.1.1 — HLH, helix-loop-helix DNA-binding domain

Domain ID domain_id	d1am9c_
Class class	a — All alpha proteins
Fold Fold fold	a.38 — HLH-like
Superfamily Superfamily superfamily	a.38.1 — HLH, helix-loop-helix DNA-binding domain
Family Family family	a.38.1.1 — HLH, helix-loop-helix DNA-binding domain

Domain ID domain_id	d1am9d_
Class class	a — All alpha proteins
Fold Fold fold	a.38 — HLH-like
Superfamily Superfamily superfamily	a.38.1 — HLH, helix-loop-helix DNA-binding domain
Family Family family	a.38.1.1 — HLH, helix-loop-helix DNA-binding domain

CATH v4.4 (4 domains)

Domain ID domain_id	1am9A00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	280 — MYOD Basic-Helix-Loop-Helix Domain, subunit B
Homologous superfamily homologous superfamily	10 — Helix-loop-helix DNA-binding domain

Domain ID domain_id	1am9B00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	280 — MYOD Basic-Helix-Loop-Helix Domain, subunit B
Homologous superfamily homologous superfamily	10 — Helix-loop-helix DNA-binding domain

Domain ID domain_id	1am9C00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	280 — MYOD Basic-Helix-Loop-Helix Domain, subunit B
Homologous superfamily homologous superfamily	10 — Helix-loop-helix DNA-binding domain

Domain ID domain_id	1am9D00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	280 — MYOD Basic-Helix-Loop-Helix Domain, subunit B
Homologous superfamily homologous superfamily	10 — Helix-loop-helix DNA-binding domain

▶

Unit-cell length a length_a	94.630 Å
Unit-cell length b length_b	94.630 Å
Unit-cell length c length_c	459.100 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	P 61 2 2
Space-group number int_tables_number	178
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	6.000 Å
R factor r_factor	0.2190
R_work r_work	0.2190
R_free r_free	0.2780
