SAXSdb — 1amk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRIOSE PHOSPHATE ISOMERASE

Leishmania mexicana

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	2-PHOSPHOGLYCOLIC ACID × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TPIS_LEIME
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–251； UniProt 1–251

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1amk
Deposition date deposition_date	1997-06-17
Structure title title	LEISHMANIA MEXICANA TRIOSE PHOSPHATE ISOMERASE
Keywords keywords	TIM, 2-PG, PGA, GLUCONEOGENESIS, FATTY ACID BIOSYNTHESIS; GLUCONEOGENESIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1amk__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

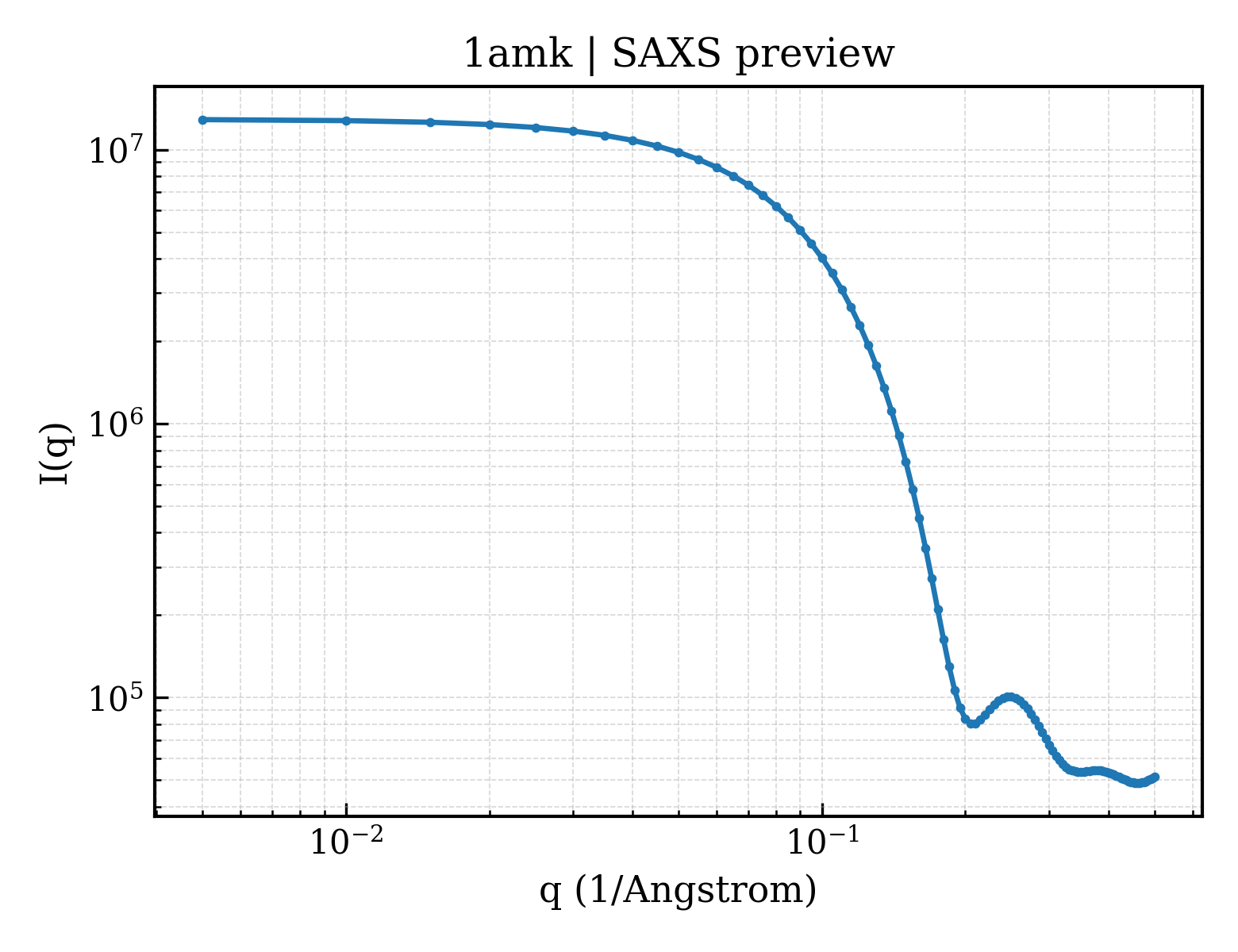

1amk__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1amk__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.68 Å
Rg (electron density)	24.79 Å
Total Rg	25.58 Å
Atom count	3830
Residues	500
Excluded volume	68507 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1amk__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	TRIOSE PHOSPHATE ISOMERASE
Molecular weight formula_weight	27209.2 kDa
EC 编号 ec_number	5.3.1.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2027

MSAKPQPIAAANWKCNGTTASIEKLVQVFNEHTISHDVQCVVAPTFVHIPLVQAKLRNPKYVISAENAIAKSGAFTGEVSMPILKDIGVHWVILGHSERRTYYGETDEIVAQKVSEACKQGFMVIACIGETLQQREANQTAKVVLSQTSAIAAKLTKDAWNQVVLAYEPVWAIGTGKVATPEQAQEVHLLLRKWVSENIGTDVAAKLRILYGGSVNAANAATLYAKPDINGFLVGGASLKPEFRDIIDATR

Source Source

Source organism organism	Leishmania mexicana
NCBI taxonomy ID ncbi_taxonomy_id	5665

Entity 2 Entity 2 non-polymer

Description description	2-PHOSPHOGLYCOLIC ACID
Molecular weight formula_weight	156.0 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	112

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1amka_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.1 — Triosephosphate isomerase (TIM)
Family Family family	c.1.1.1 — Triosephosphate isomerase (TIM)

CATH v4.4 (1 domains)

Domain ID domain_id	1amkA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

▶

Unit-cell length a length_a	99.090 Å
Unit-cell length b length_b	52.940 Å
Unit-cell length c length_c	58.850 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	118.13 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.830 Å
Low-resolution limit resolution_low	22.000 Å
R factor r_factor	—
R_work r_work	0.1070
R_free r_free	—
