1ant
BIOLOGICAL IMPLICATIONS OF A 3 ANGSTROMS STRUCTURE OF DIMERIC ANTITHROMBIN
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1ant |
| deposition_date | 1994-02-28 |
| title | BIOLOGICAL IMPLICATIONS OF A 3 ANGSTROMS STRUCTURE OF DIMERIC ANTITHROMBIN |
| keywords | SERINE PROTEASE INHIBITOR; SERINE PROTEASE INHIBITOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 37.68 Å |
| rg_electron | 37.81 Å |
| i0 | 121360000.00 |
| molecular_weight | 90580.0 kDa |
| excluded_volume | 114200 ų |
| envelope_volume | 146510 ų |
| shell_volume | 35362 ų |
| envelope_diameter | 129.4 Å |
| shell_rg | 39.51 Å |
| envelope_rg | 37.62 Å |
| shape_rg | 37.80 Å |
| total_rg | 37.97 Å |
| total_atoms | 6371 |
| n_residues | 794 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

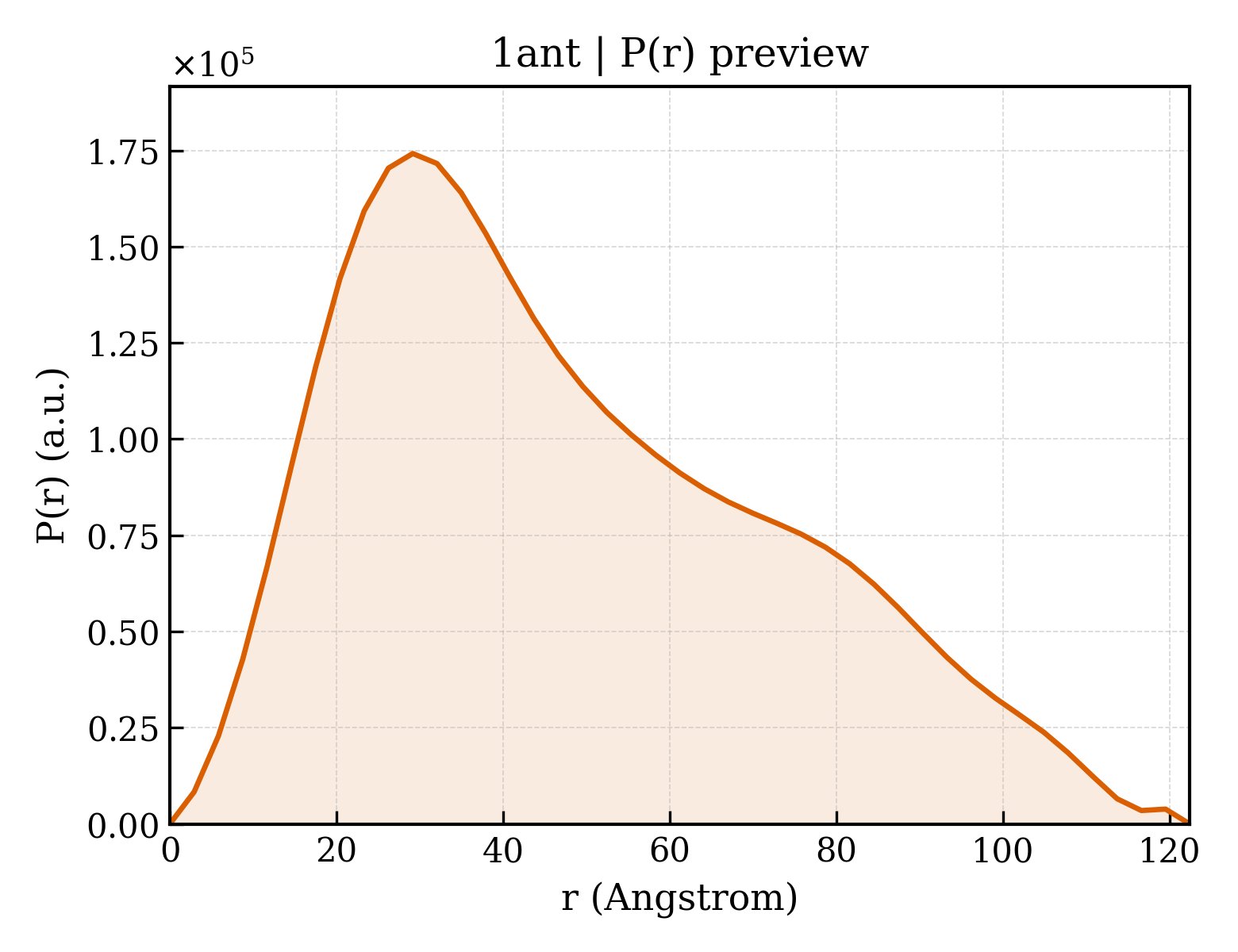

3. P(r) Analysis (GNOM)
| dmax | 122.4 Å |
| rg_real | 38.23 Å |
| rg_real_error | 1.12 Å |
| i0_real | 1.2140e+08 |
| i0_real_error | 2.0190e+06 |
| rg_reciprocal | 37.89 Å |
| i0_reciprocal | 121300000.0000 |
| total_estimate | 0.7479 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 29.1 Å |
| skewness | 0.548 |
| kurtosis | -0.551 |
| angular_range | — – 0.2100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 48870000.0000 |
| n_real_points | 43 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.644; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.692; Smooth: 0.096 |
