1aoc
JAPANESE HORSESHOE CRAB COAGULOGEN
SAXS Profile

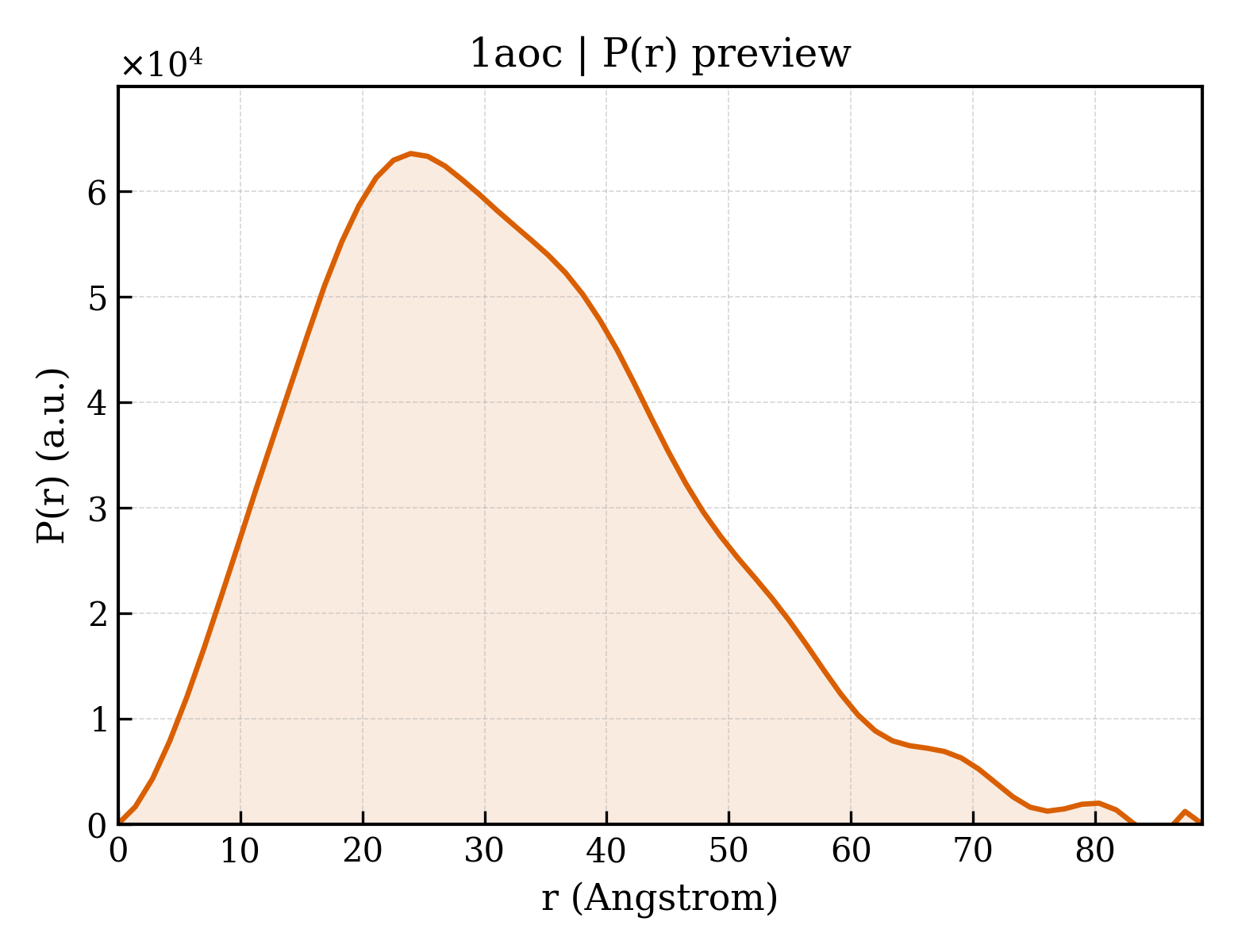

P(r) Distribution
1. Structure Basics
| entry_id | 1aoc |
| deposition_date | 1996-11-28 |
| title | JAPANESE HORSESHOE CRAB COAGULOGEN |
| keywords | COAGULATION FACTOR, CLOTTABLE PROTEIN, CYSTINE KNOT SUPERFAMILY; COAGULATION FACTOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 24.65 Å |
| rg_electron | 24.21 Å |
| i0 | 29717100.00 |
| molecular_weight | 39337.0 kDa |
| excluded_volume | 48147 ų |
| envelope_volume | 60787 ų |
| shell_volume | 22268 ų |
| envelope_diameter | 94.3 Å |
| shell_rg | 29.72 Å |
| envelope_rg | 24.57 Å |
| shape_rg | 24.21 Å |
| total_rg | 24.84 Å |
| total_atoms | 2748 |
| n_residues | 350 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 88.8 Å |
| rg_real | 24.83 Å |
| rg_real_error | 0.93 Å |
| i0_real | 2.9720e+07 |
| i0_real_error | 4.7370e+05 |
| rg_reciprocal | 24.79 Å |
| i0_reciprocal | 29720000.0000 |
| total_estimate | 0.7511 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 23.9 Å |
| skewness | 0.527 |
| kurtosis | -0.075 |
| angular_range | — – 0.3200 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3954000.0000 |
| n_real_points | 64 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.685; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.716; Smooth: 0.000 |
