1aov

APO DUCK OVOTRANSFERRIN

Method: X-RAY DIFFRACTION Dmax: 99.7 Å Quality: EXCELLENT

SAXS Profile

SAXS profile for 1aov

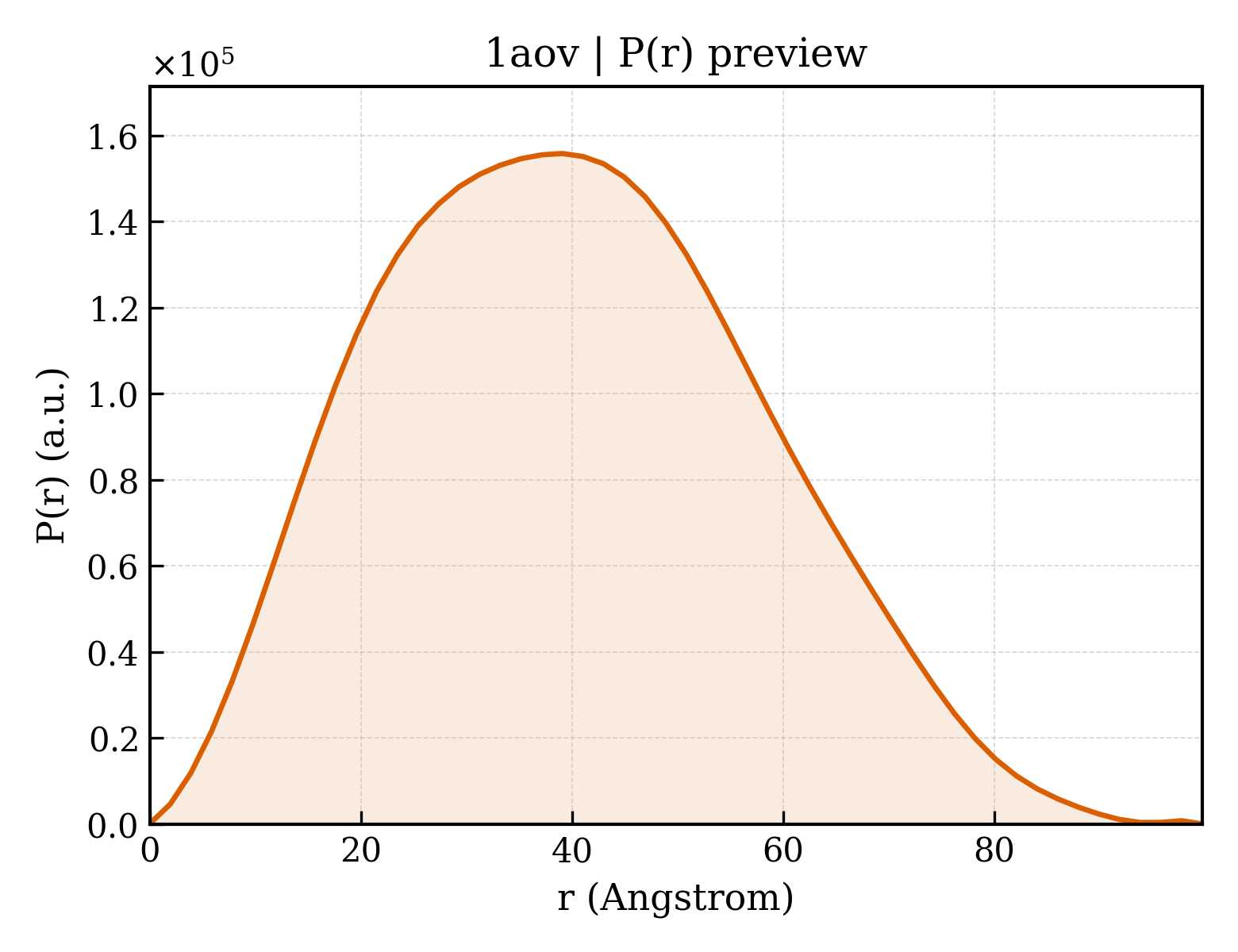

P(r) Distribution

P(r) distribution for 1aov
▼

1. Structure Basics

entry_id1aov
deposition_date1996-12-11
titleAPO DUCK OVOTRANSFERRIN
keywordsTRANSFERRIN, IRON UPTAKE, PROTEIN CRYSTALLOGRAPHY, MOLECULAR REPLACEMENT; TRANSFERRIN
methodX-RAY DIFFRACTION
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier30.90 Å
rg_electron29.98 Å
i095665200.00
molecular_weight75610.0 kDa
excluded_volume94049 ų
envelope_volume118330 ų
shell_volume33602 ų
envelope_diameter106.4 Å
shell_rg36.41 Å
envelope_rg29.67 Å
shape_rg29.93 Å
total_rg30.71 Å
total_atoms5299
n_residues686
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax99.7 Å
rg_real30.86 Å
rg_real_error0.73 Å
i0_real9.5670e+07
i0_real_error1.5290e+06
rg_reciprocal30.88 Å
i0_reciprocal95670000.0000
total_estimate0.9045
solution_quality EXCELLENT a EXCELLENT solution
n_peaks2
r_peak_primary39.1 Å
skewness0.238
kurtosis-0.526
angular_range— – 0.2550 Å−1
current_alpha0.0000
highest_alpha15130000.0000
n_real_points52
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.939; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.959
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (1)

▶

7. Files & Curves (10)
