1ap8
TRANSLATION INITIATION FACTOR EIF4E IN COMPLEX WITH M7GDP, NMR, 20 STRUCTURES

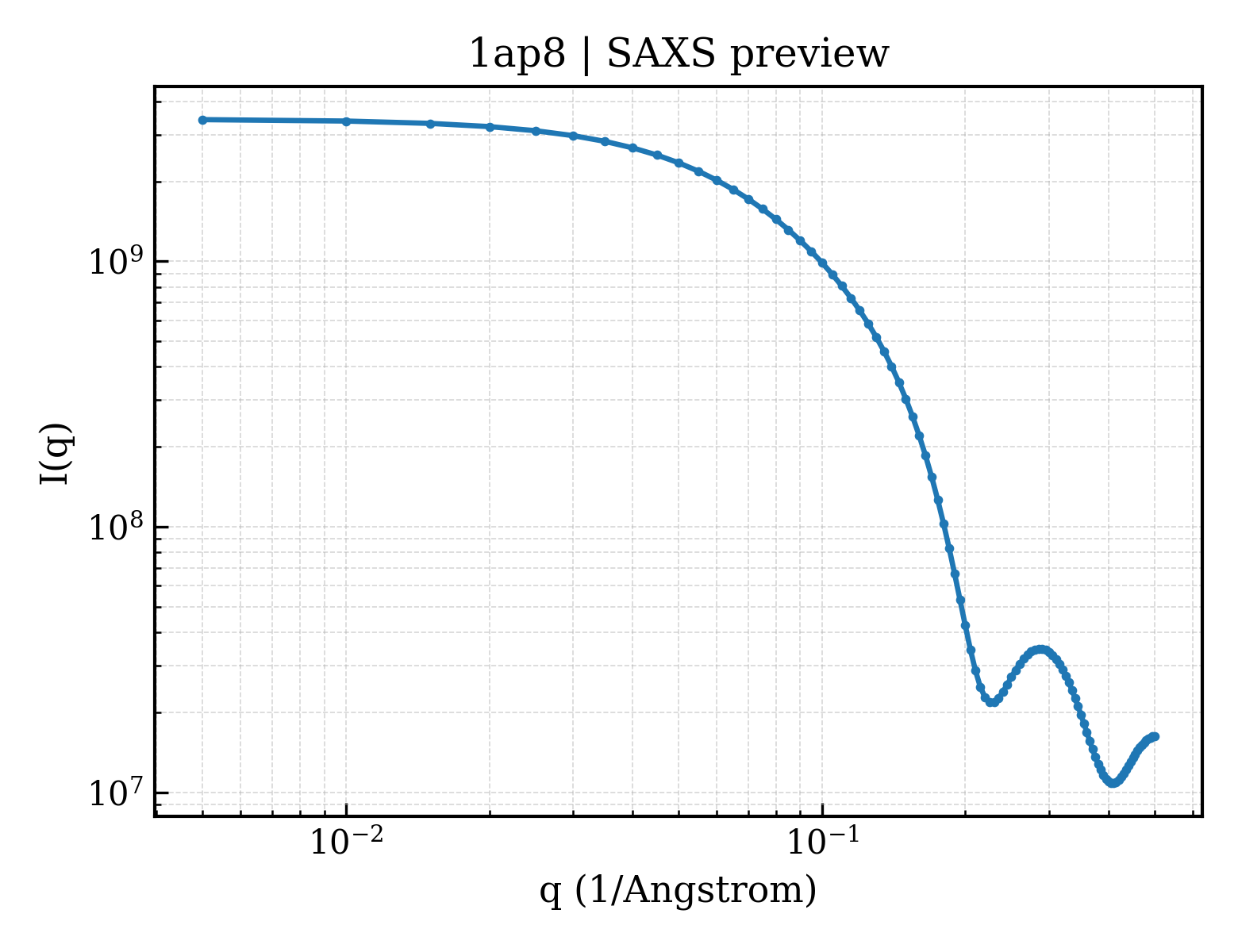

SAXS Profile

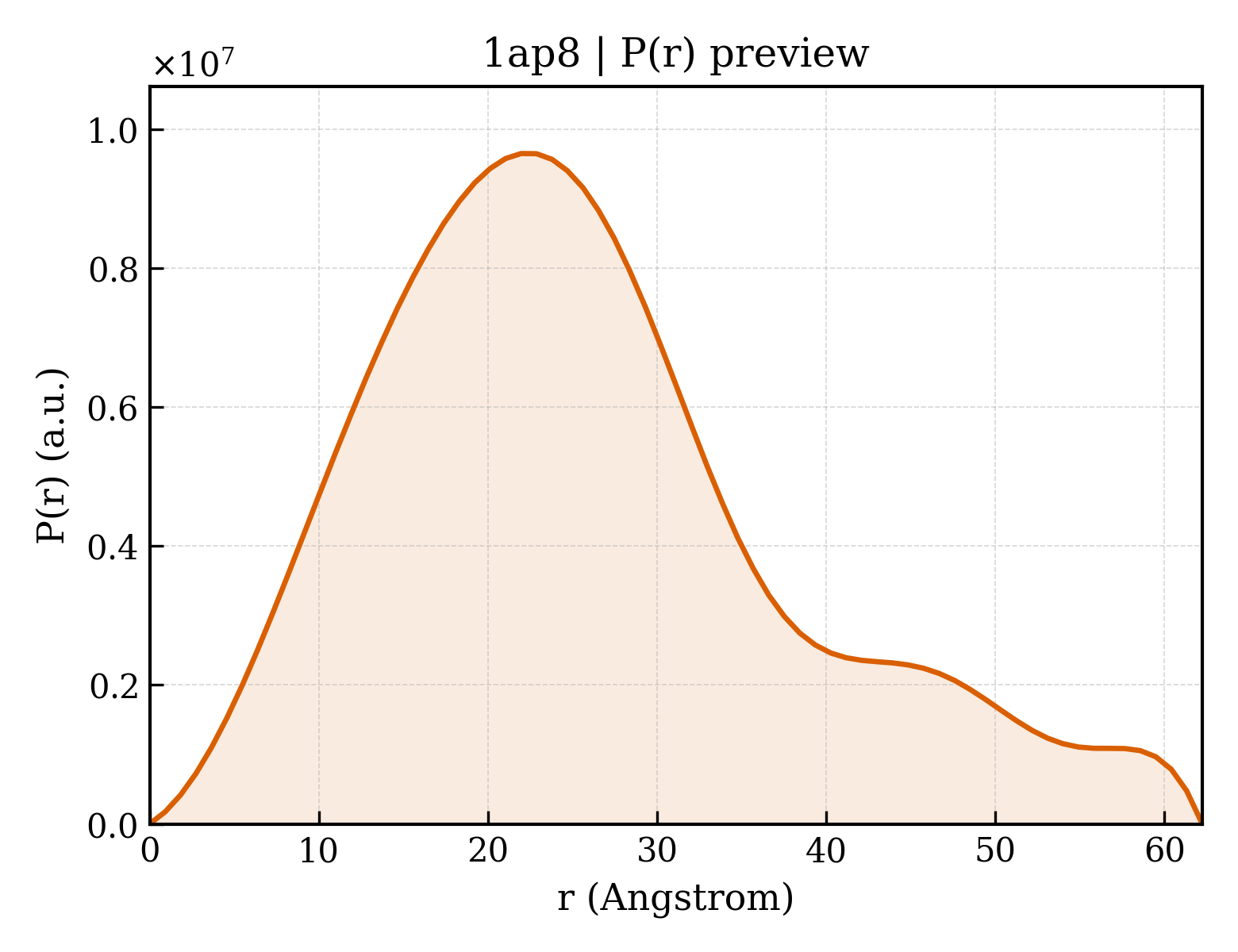

P(r) Distribution
1. Structure Basics
| entry_id | 1ap8 |
| deposition_date | 1997-07-25 |
| title | TRANSLATION INITIATION FACTOR EIF4E IN COMPLEX WITH M7GDP, NMR, 20 STRUCTURES |
| keywords | RNA CAP, TRANSLATION INITIATION FACTOR; RNA CAP |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 21.47 Å |
| rg_electron | 21.47 Å |
| i0 | 3428700000.00 |
| molecular_weight | 494070.0 kDa |
| excluded_volume | 616360 ų |
| envelope_volume | 166890 ų |
| shell_volume | 40781 ų |
| envelope_diameter | 116.6 Å |
| shell_rg | 40.14 Å |
| envelope_rg | 37.20 Å |
| shape_rg | 21.36 Å |
| total_rg | 22.21 Å |
| total_atoms | 68760 |
| n_residues | 4260 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 62.2 Å |
| rg_real | 20.02 Å |
| rg_real_error | 0.16 Å |
| i0_real | 3.2800e+09 |
| i0_real_error | 3.5300e+07 |
| rg_reciprocal | 21.98 Å |
| i0_reciprocal | 3428000000.0000 |
| total_estimate | 0.6228 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 22.0 Å |
| skewness | 0.696 |
| kurtosis | 0.133 |
| angular_range | — – 0.3700 Å−1 |
| current_alpha | 2.3400 |
| highest_alpha | 1691000.0000 |
| n_real_points | 69 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.001; Oscil: 0.732; Stabil: 0.983; Sysdev: 0.000; Positv: 1.000; Valcen: 0.962; Smooth: 0.000 |
