1apf
ANTHOPLEURIN-B, NMR, 20 STRUCTURES

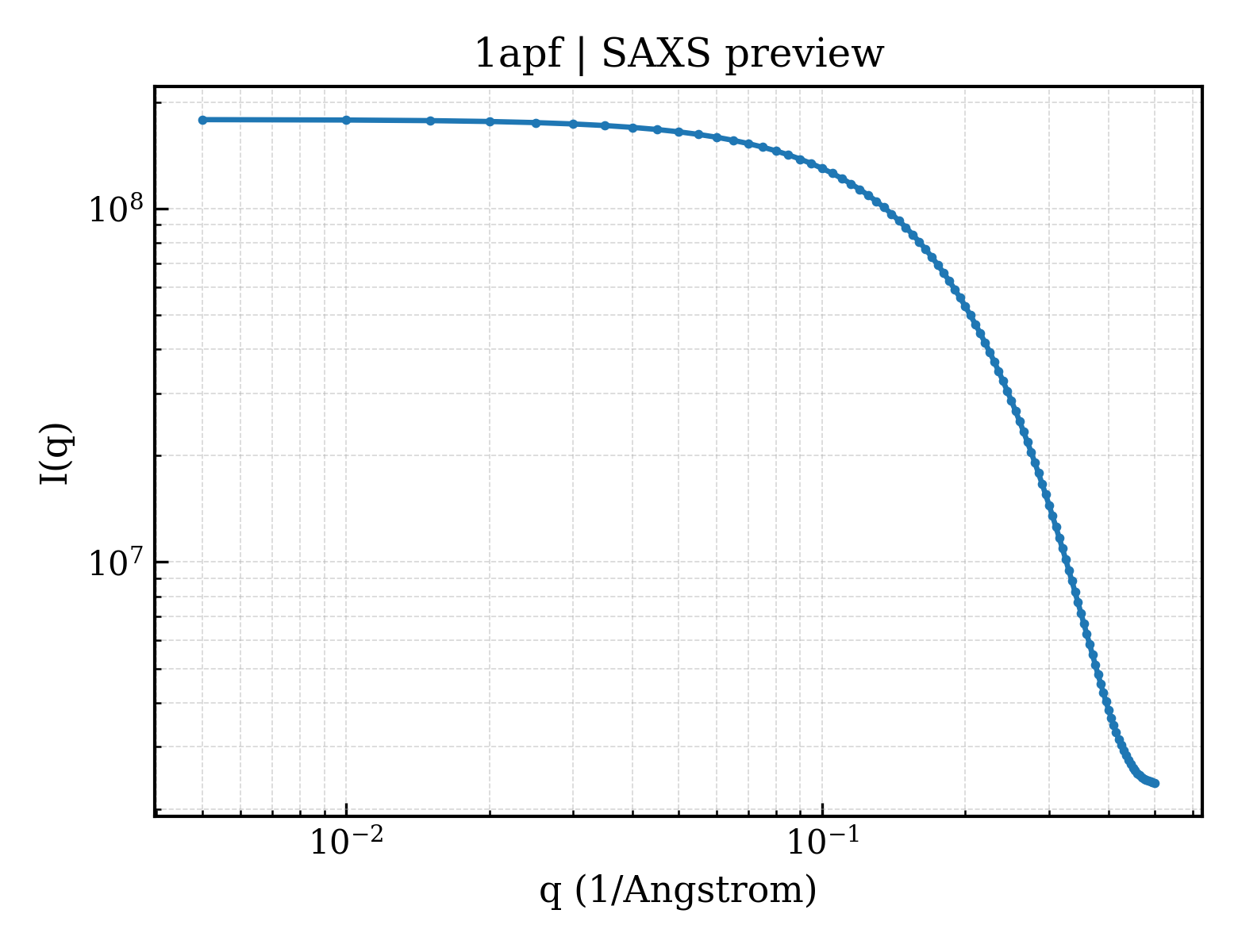

SAXS Profile

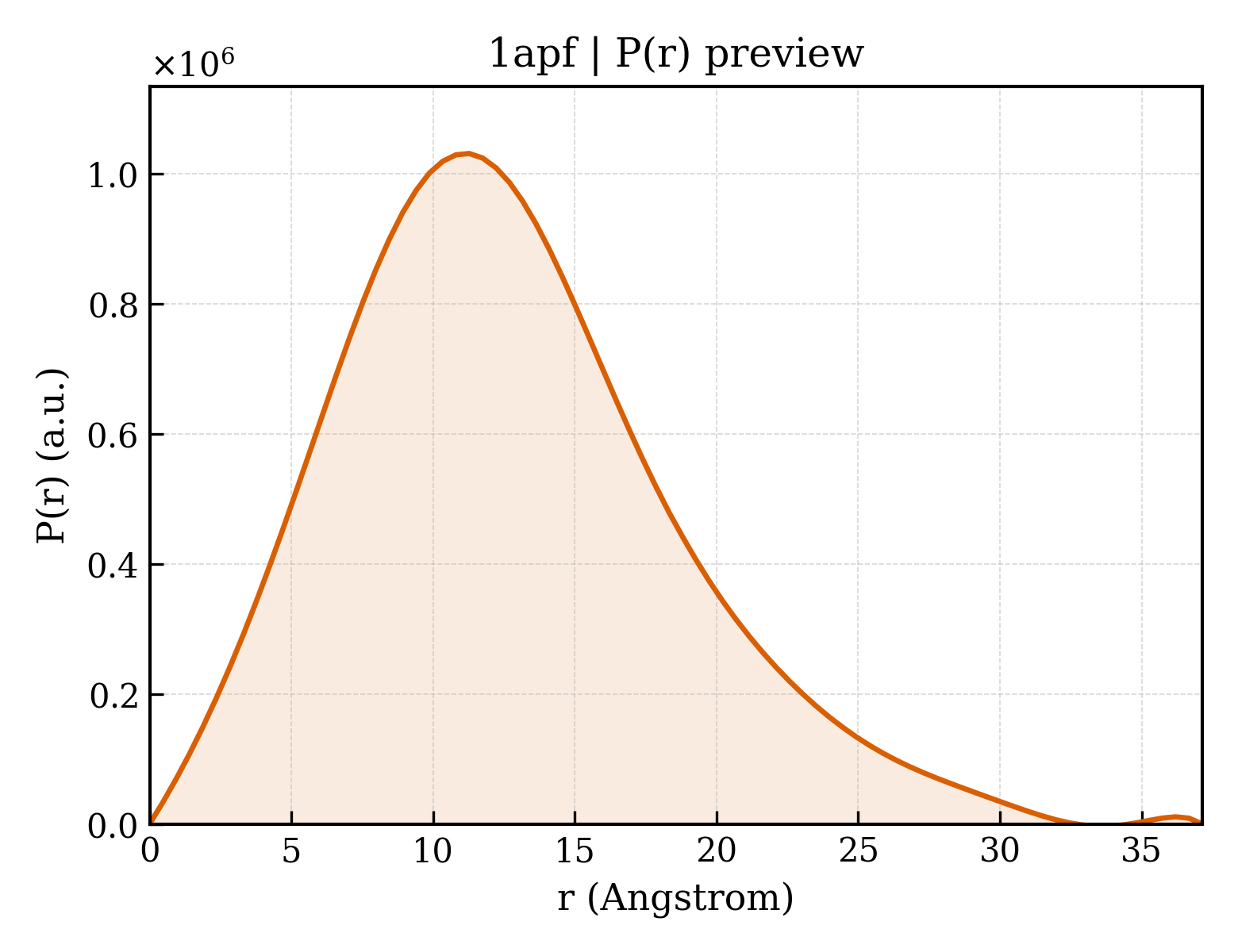

P(r) Distribution
1. Structure Basics
| entry_id | 1apf |
| deposition_date | 1995-05-30 |
| title | ANTHOPLEURIN-B, NMR, 20 STRUCTURES |
| keywords | TOXIN, SEA ANEMONE, CARDIAC STIMULANT; CARDIAC STIMULANT |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.76 Å |
| rg_electron | 10.24 Å |
| i0 | 178872000.00 |
| molecular_weight | 105540.0 kDa |
| excluded_volume | 128950 ų |
| envelope_volume | 13298 ų |
| shell_volume | 9281 ų |
| envelope_diameter | 42.7 Å |
| shell_rg | 17.89 Å |
| envelope_rg | 13.41 Å |
| shape_rg | 10.29 Å |
| total_rg | 10.31 Å |
| total_atoms | 14180 |
| n_residues | 980 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 37.1 Å |
| rg_real | 9.82 Å |
| rg_real_error | 0.45 Å |
| i0_real | 1.7890e+08 |
| i0_real_error | 1.9260e+06 |
| rg_reciprocal | 9.82 Å |
| i0_reciprocal | 178900000.0000 |
| total_estimate | 0.7935 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 11.3 Å |
| skewness | 0.554 |
| kurtosis | 0.197 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 58860.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.557; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.707; Smooth: 0.935 |
