1aqb
RETINOL-BINDING PROTEIN (RBP) FROM PIG PLASMA
SAXS Profile

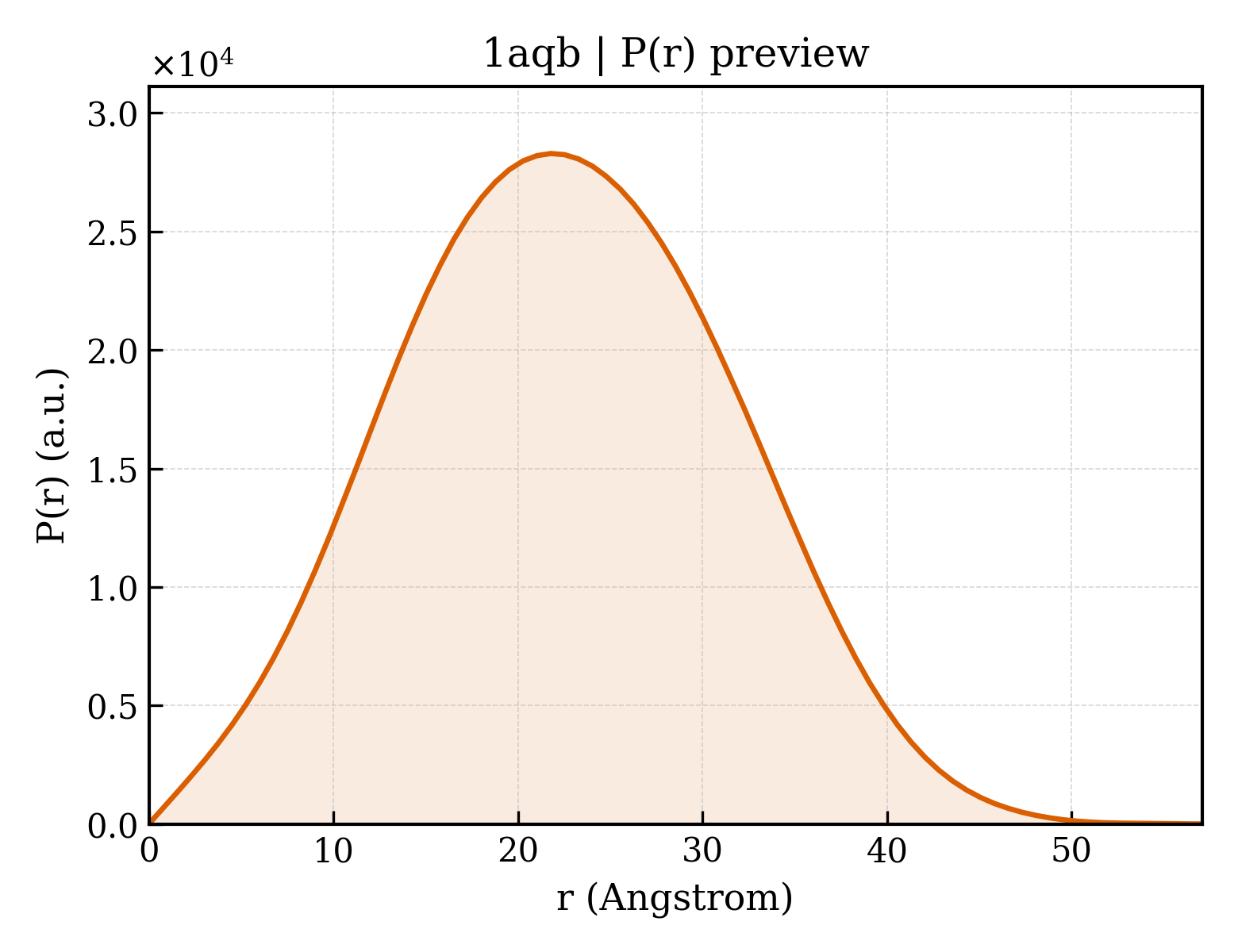

P(r) Distribution
1. Structure Basics
| entry_id | 1aqb |
| deposition_date | 1997-07-28 |
| title | RETINOL-BINDING PROTEIN (RBP) FROM PIG PLASMA |
| keywords | RETINOL TRANSPORT, RETINOIDS, VITAMIN A, CADMIUM ION; RETINOL TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.28 Å |
| rg_electron | 15.87 Å |
| i0 | 8479630.00 |
| molecular_weight | 20634.0 kDa |
| excluded_volume | 25435 ų |
| envelope_volume | 29137 ų |
| shell_volume | 15389 ų |
| envelope_diameter | 56.1 Å |
| shell_rg | 22.00 Å |
| envelope_rg | 16.29 Å |
| shape_rg | 15.82 Å |
| total_rg | 17.05 Å |
| total_atoms | 1446 |
| n_residues | 175 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 57.1 Å |
| rg_real | 17.16 Å |
| rg_real_error | 0.30 Å |
| i0_real | 8.4800e+06 |
| i0_real_error | 9.4690e+04 |
| rg_reciprocal | 17.17 Å |
| i0_reciprocal | 8480000.0000 |
| total_estimate | 0.8779 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 21.8 Å |
| skewness | 0.097 |
| kurtosis | -0.414 |
| angular_range | — – 0.4600 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1297000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.804; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.998 |
