1arc
THE PRIMARY STRUCTURE AND STRUCTURAL CHARACTERISTICS OF ACHROMOBACTER LYTICUS PROTEASE I, A LYSINE-SPECIFIC SERINE PROTEASE

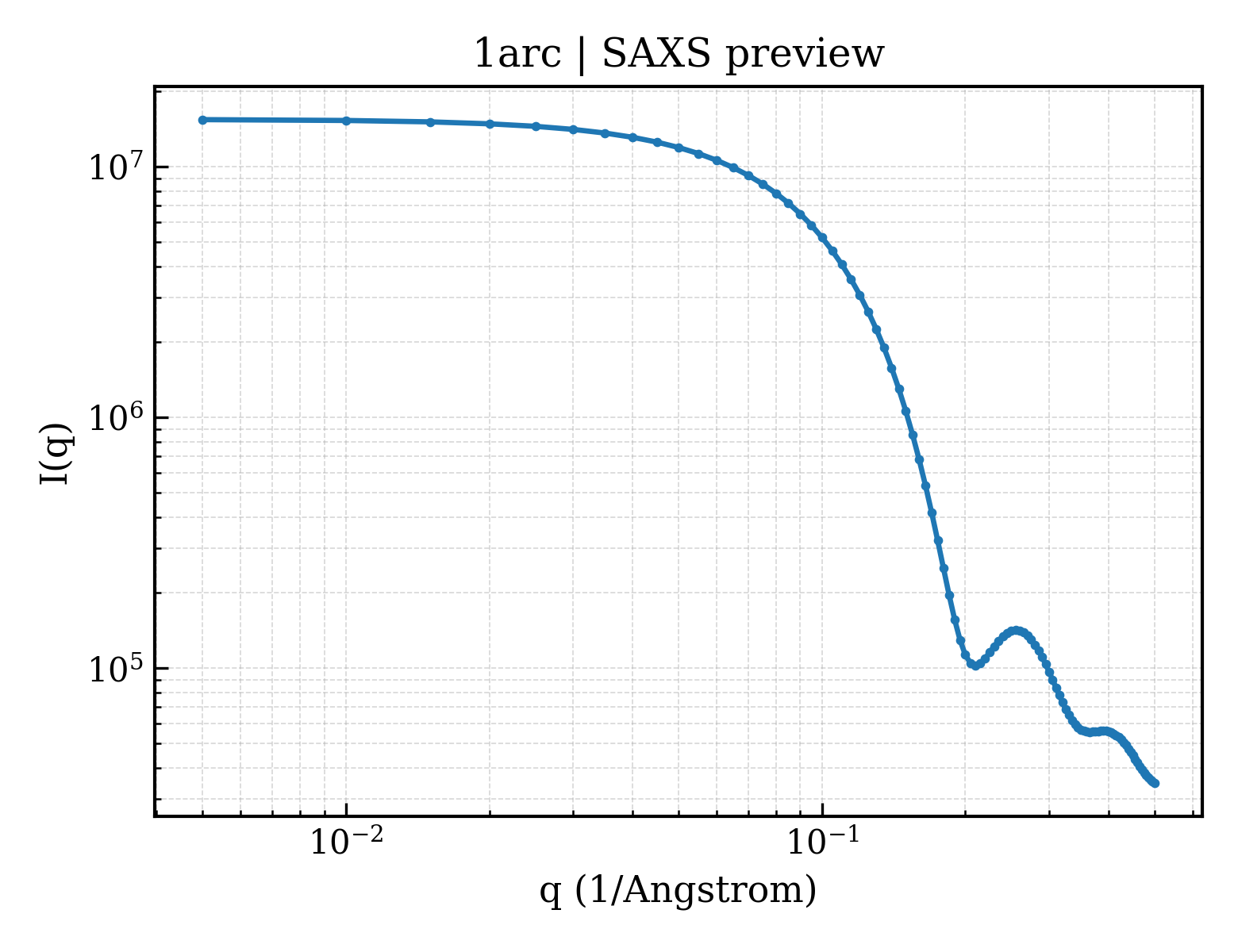

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1arc |
| deposition_date | 1993-04-15 |
| title | THE PRIMARY STRUCTURE AND STRUCTURAL CHARACTERISTICS OF ACHROMOBACTER LYTICUS PROTEASE I, A LYSINE-SPECIFIC SERINE PROTEASE |
| keywords | SERINE PROTEASE, HYDROLASE-HYDROLASE INHIBITOR complex; HYDROLASE/HYDROLASE INHIBITOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.64 Å |
| rg_electron | 16.51 Å |
| i0 | 15453200.00 |
| molecular_weight | 27646.0 kDa |
| excluded_volume | 33650 ų |
| envelope_volume | 36191 ų |
| shell_volume | 17911 ų |
| envelope_diameter | 56.3 Å |
| shell_rg | 23.12 Å |
| envelope_rg | 16.73 Å |
| shape_rg | 16.49 Å |
| total_rg | 17.48 Å |
| total_atoms | 1944 |
| n_residues | 263 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 54.2 Å |
| rg_real | 17.49 Å |
| rg_real_error | 0.24 Å |
| i0_real | 1.5450e+07 |
| i0_real_error | 1.8260e+05 |
| rg_reciprocal | 17.51 Å |
| i0_reciprocal | 15450000.0000 |
| total_estimate | 0.8985 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.1 Å |
| skewness | 0.061 |
| kurtosis | -0.494 |
| angular_range | — – 0.4500 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3165000.0000 |
| n_real_points | 76 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.904; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.977 |
