1ark
SH3 DOMAIN FROM HUMAN NEBULIN, NMR, 15 STRUCTURES
SAXS Profile

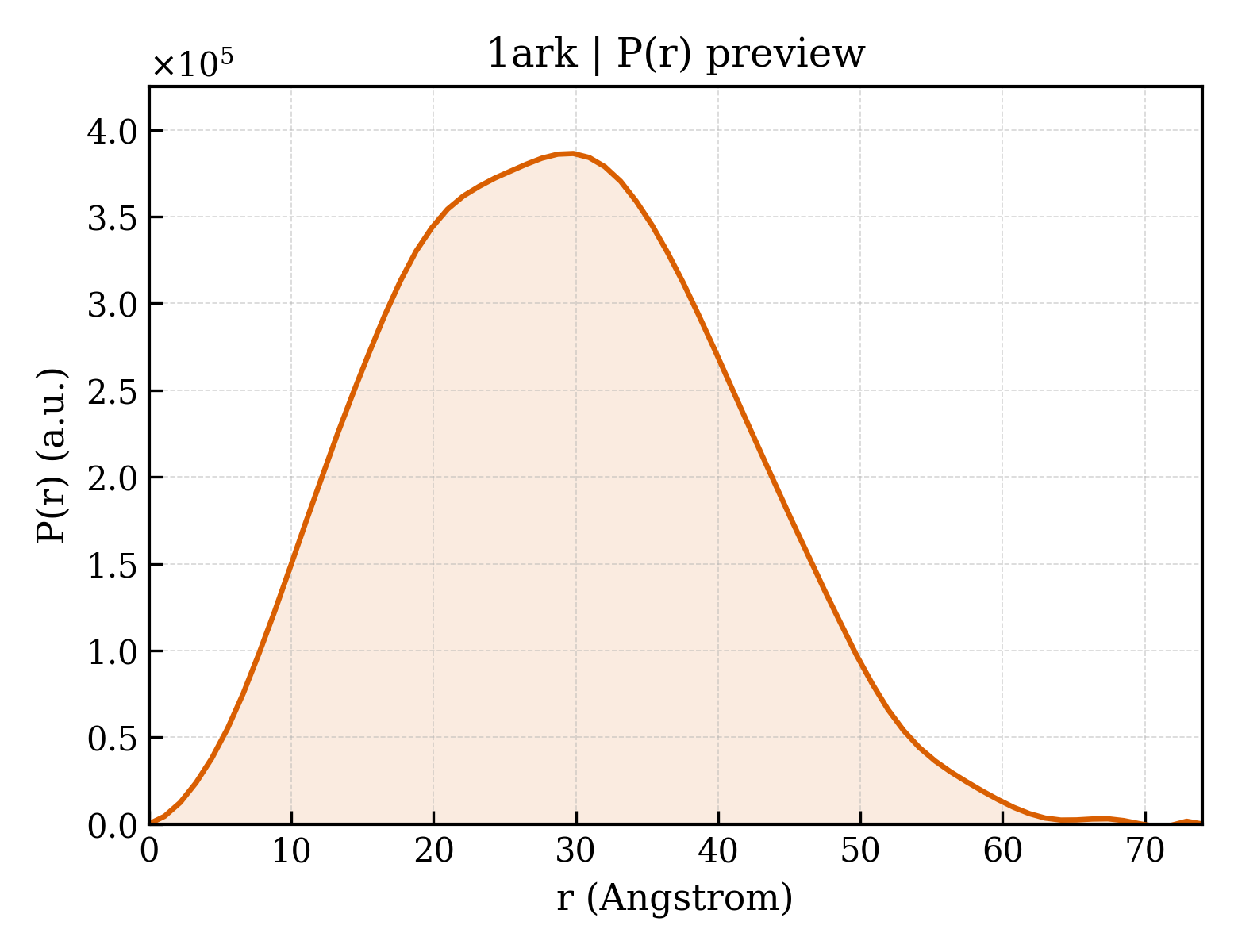

P(r) Distribution
1. Structure Basics
| entry_id | 1ark |
| deposition_date | 1997-08-07 |
| title | SH3 DOMAIN FROM HUMAN NEBULIN, NMR, 15 STRUCTURES |
| keywords | TRANSFERASE, SH3 DOMAIN, NEBULIN, Z-DISK ASSEMBLY, ACTIN-BINDING; TRANSFERASE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 22.09 Å |
| rg_electron | 21.03 Å |
| i0 | 157616000.00 |
| molecular_weight | 99081.0 kDa |
| excluded_volume | 122680 ų |
| envelope_volume | 87030 ų |
| shell_volume | 30667 ų |
| envelope_diameter | 76.4 Å |
| shell_rg | 30.89 Å |
| envelope_rg | 22.93 Å |
| shape_rg | 21.02 Å |
| total_rg | 21.78 Å |
| total_atoms | 13575 |
| n_residues | 900 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 74.0 Å |
| rg_real | 21.96 Å |
| rg_real_error | 0.45 Å |
| i0_real | 1.5760e+08 |
| i0_real_error | 2.1410e+06 |
| rg_reciprocal | 21.99 Å |
| i0_reciprocal | 157600000.0000 |
| total_estimate | 0.8042 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 29.8 Å |
| skewness | 0.186 |
| kurtosis | -0.463 |
| angular_range | — – 0.3600 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 97330000.0000 |
| n_real_points | 68 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.822; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.000 |
