1arl
CARBOXYPEPTIDASE A WITH ZN REMOVED

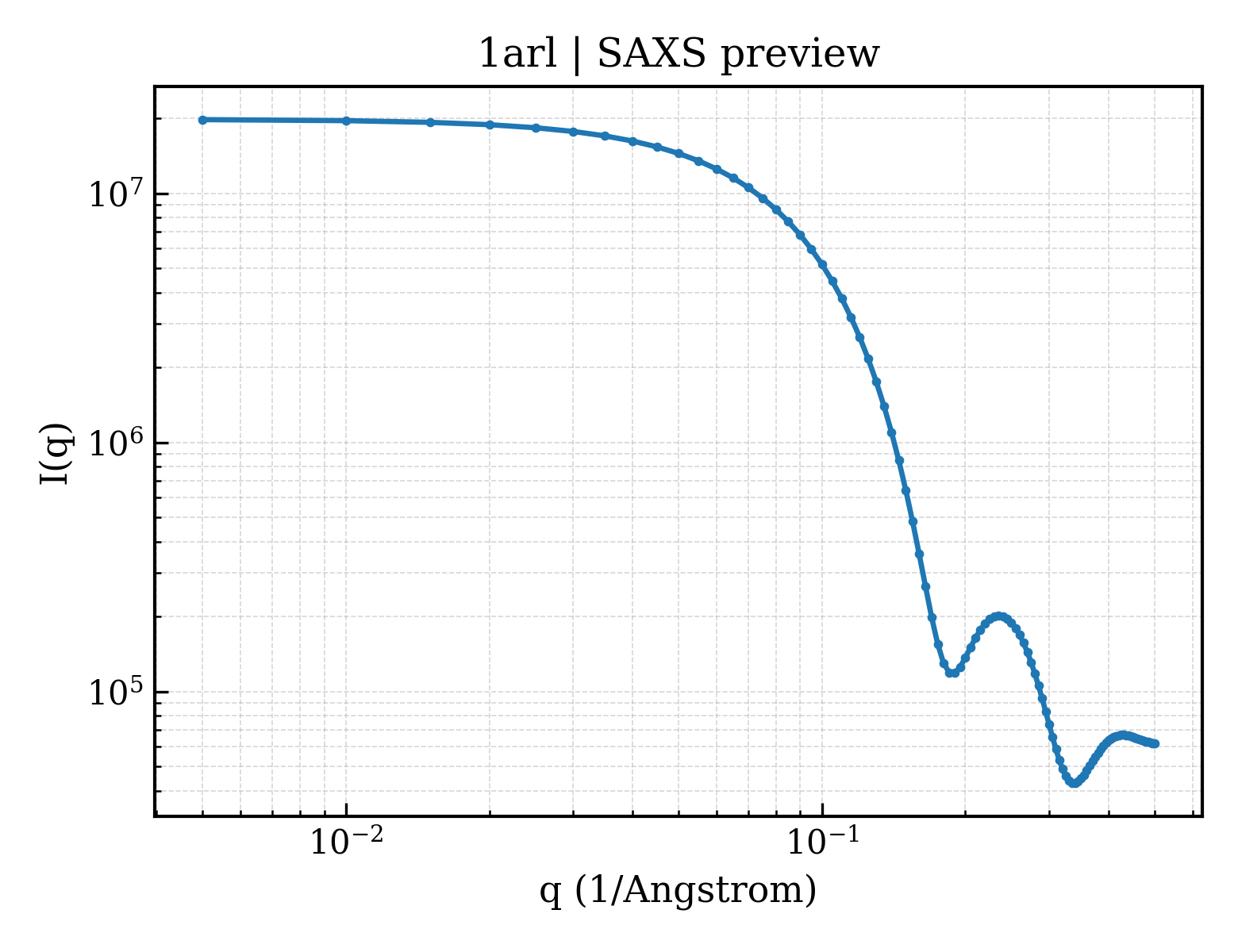

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1arl |
| deposition_date | 1994-11-22 |
| title | CARBOXYPEPTIDASE A WITH ZN REMOVED |
| keywords | METALLOPROTEINASE, HYDROLASE, CARBOXYPEPTIDASE; CARBOXYPEPTIDASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.47 Å |
| rg_electron | 18.09 Å |
| i0 | 19830900.00 |
| molecular_weight | 34409.0 kDa |
| excluded_volume | 43172 ų |
| envelope_volume | 47165 ų |
| shell_volume | 21093 ų |
| envelope_diameter | 61.7 Å |
| shell_rg | 25.13 Å |
| envelope_rg | 18.38 Å |
| shape_rg | 18.05 Å |
| total_rg | 19.18 Å |
| total_atoms | 2437 |
| n_residues | 307 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 60.3 Å |
| rg_real | 19.29 Å |
| rg_real_error | 0.35 Å |
| i0_real | 1.9830e+07 |
| i0_real_error | 2.5980e+05 |
| rg_reciprocal | 19.32 Å |
| i0_reciprocal | 19830000.0000 |
| total_estimate | 0.8116 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 26.3 Å |
| skewness | 0.064 |
| kurtosis | -0.443 |
| angular_range | — – 0.4100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 6904000.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.857; Stabil: 0.996; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.000 |
