1as5
SOLUTION STRUCTURE OF CONOTOXIN Y-PIIIE FROM CONUS PURPURASCENS, NMR, 14 STRUCTURES

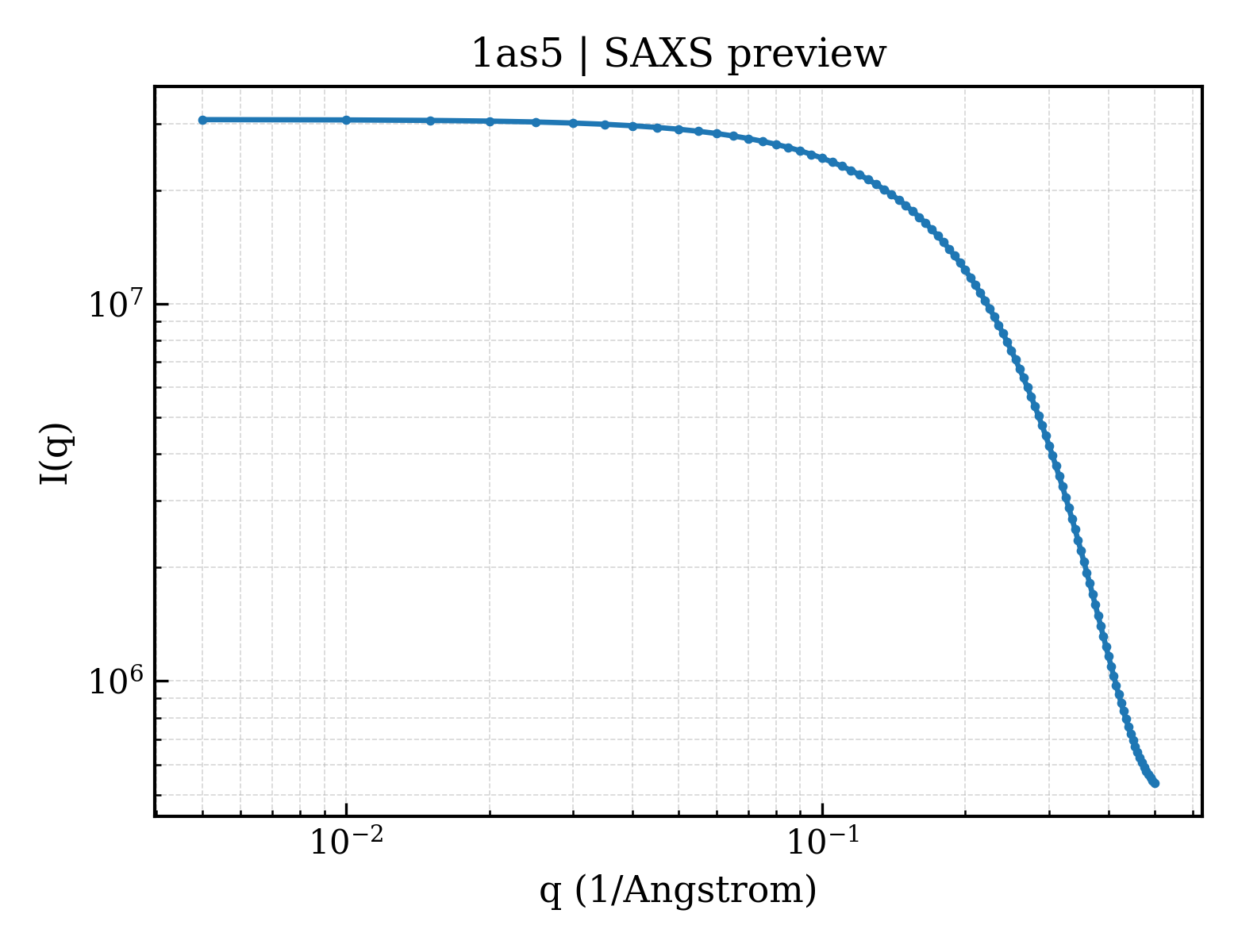

SAXS Profile

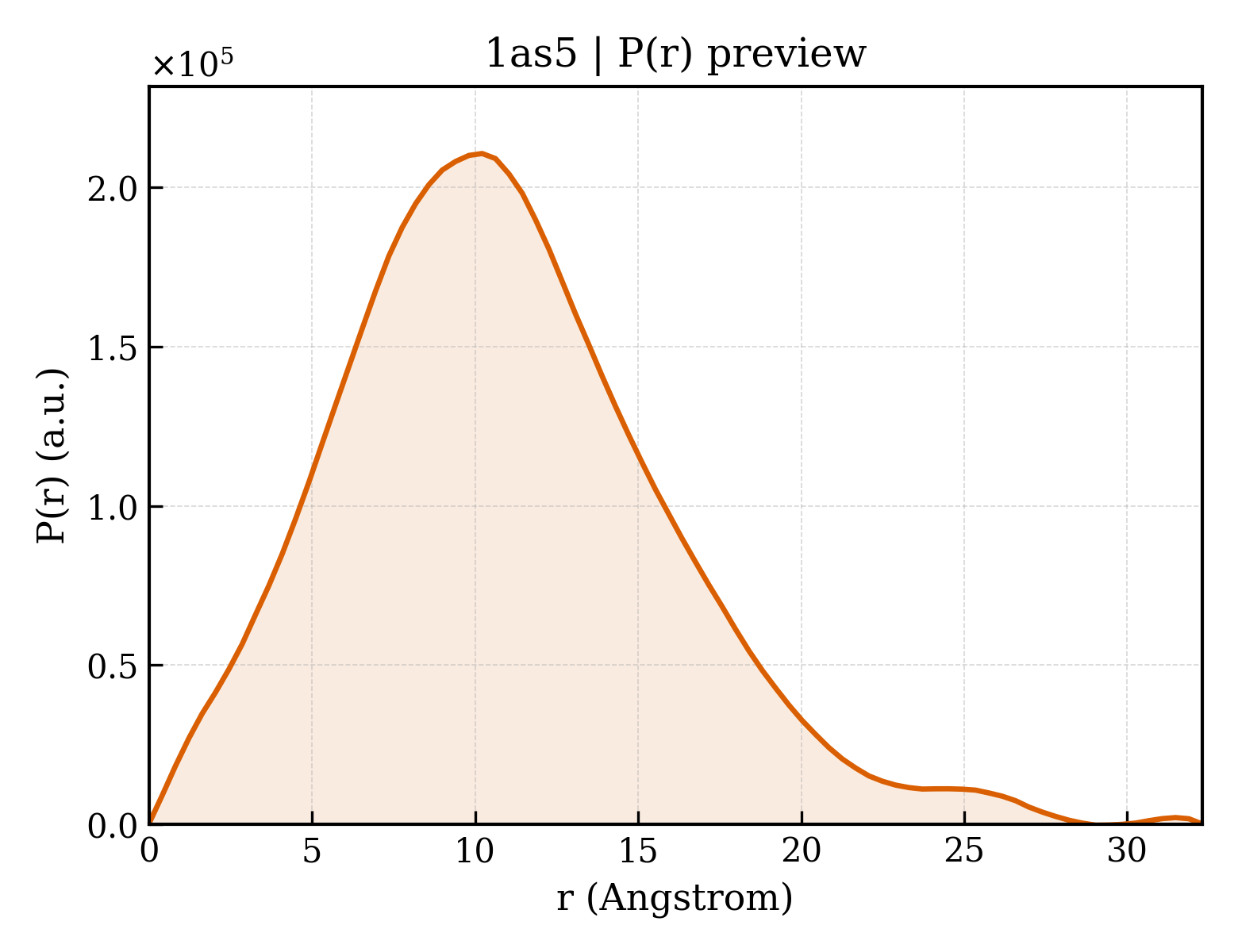

P(r) Distribution
1. Structure Basics
| entry_id | 1as5 |
| deposition_date | 1997-08-13 |
| title | SOLUTION STRUCTURE OF CONOTOXIN Y-PIIIE FROM CONUS PURPURASCENS, NMR, 14 STRUCTURES |
| keywords | CONOTOXIN, NEUROTOXIN, ACETYLCHOLINE; NEUROTOXIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 8.39 Å |
| rg_electron | 8.54 Å |
| i0 | 30749700.00 |
| molecular_weight | 38223.0 kDa |
| excluded_volume | 44935 ų |
| envelope_volume | 7684 ų |
| shell_volume | 6742 ų |
| envelope_diameter | 34.5 Å |
| shell_rg | 15.29 Å |
| envelope_rg | 10.96 Å |
| shape_rg | 8.59 Å |
| total_rg | 8.76 Å |
| total_atoms | 4998 |
| n_residues | 294 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 32.3 Å |
| rg_real | 8.43 Å |
| rg_real_error | 0.54 Å |
| i0_real | 3.0750e+07 |
| i0_real_error | 3.8970e+05 |
| rg_reciprocal | 8.43 Å |
| i0_reciprocal | 30750000.0000 |
| total_estimate | 0.7828 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 10.2 Å |
| skewness | 0.558 |
| kurtosis | 0.446 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 21620.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.493; Stabil: 0.994; Sysdev: 1.000; Positv: 1.000; Valcen: 0.763; Smooth: 0.948 |
