1atj

RECOMBINANT HORSERADISH PEROXIDASE C1A

Method: X-RAY DIFFRACTION D_max: 130.7 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PEROXIDASE C1A

Armoracia rusticana

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain A； UniProt 31–336 Chain B； UniProt 31–336 Chain C； UniProt 31–336 Chain D； UniProt 31–336 Chain E； UniProt 31–336 Chain F； UniProt 31–336	Not recorded	CA CALCIUM ION × 12 HEM PROTOPORPHYRIN IX CONTAINING FE × 6	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；16% (W/V) PEG 4000, 0.2 M ZINC ACETATE AND 0.1 M CACODYLATE BUFFER, PH 6.5	Resolution 2.15 Å R-free 0.242

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1ATJ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1GW2 RECOMBINANT HORSERADISH PEROXIDASE C1A THR171SER IN COMPLEX WITH FERULIC ACID Deposited 2002-03-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Mutation：YES	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CA CALCIUM ION × 2 FER 3-(4-HYDROXY-3-METHOXYPHENYL)-2-PROPENOIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；16% PEG 4000, 0.2 M CALCIUM ACETATE,0.1 M CACODYLATE BUFFER PH 6.5	Resolution 2.15 Å R-free 0.211
1GWO Recombinant horseradish peroxidase C1A ALA170GLN Deposited 2002-03-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Mutation：YES	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CA CALCIUM ION × 2 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；16% PEG 4000, 0.2 M CALCIUM ACETATE, 0.1 M CACODYLATE BUFFER PH 6.5	Resolution 2.07 Å R-free 0.221
1GWT RECOMBINANT HORSERADISH PEROXIDASE C1A PHE221MET Deposited 2002-03-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Mutation：YES	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CA CALCIUM ION × 2 NA SODIUM ION × 1 FER 3-(4-HYDROXY-3-METHOXYPHENYL)-2-PROPENOIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；16% (W/V) PEG 4000, 0.2 M CALCIUM ACETATE AND 0.1 M CACODYLATE BUFFER, PH 6.5	Resolution 1.70 Å R-free 0.198
1GWU RECOMBINANT HORSERADISH PEROXIDASE C1A ALA140GLY Deposited 2002-03-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Mutation：YES	NA SODIUM ION × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CA CALCIUM ION × 2 ACT ACETATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；16%(W/V)PEG4000,0.2M CALCIUM ACETATE,0.1M CACODYLATE PH6.5, pH 6.50	Resolution 1.31 Å R-free 0.193
1GX2 Recombinant horseradish peroxidase Phe209Ser complex with benzhydroxamic acid Deposited 2002-03-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Mutation：YES	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 BHO BENZHYDROXAMIC ACID × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.50	Resolution 2.20 Å R-free 0.197
1GX2 Recombinant horseradish peroxidase Phe209Ser complex with benzhydroxamic acid Deposited 2002-03-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 31–338（308 aa）	Mutation：YES	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 BHO BENZHYDROXAMIC ACID × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.50	Resolution 2.20 Å R-free 0.197
1H55 STRUCTURE OF HORSERADISH PEROXIDASE C1A COMPOUND II Deposited 2001-05-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 ACT ACETATE ION × 1 CA CALCIUM ION × 2 O OXYGEN ATOM × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；20% (W/V) PEG 4000, 0.2 M CALCIUM ACETATE, 0.1 M CACODYLATE BUFFER, PH 6.5	Resolution 1.61 Å R-free 0.210
1H57 Structure of horseradish peroxidase C1A compound III Deposited 2001-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 ACT ACETATE ION × 1 CA CALCIUM ION × 2 OXY OXYGEN MOLECULE × 1 PEO HYDROGEN PEROXIDE × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；20% (W/V) PEG 4000 0.2 M CALCIUM ACETATE, 0.1 M CACODYLATE BUFFER, PH 6.5	Resolution 1.60 Å R-free 0.196
1H58 STRUCTURE OF FERROUS HORSERADISH PEROXIDASE C1A Deposited 2001-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 ACT ACETATE ION × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；20% (W/V) PEG 4000, 0.2 M CALCIUM ACETATE, 0.1 M CACODYLATE BUFFER, PH 6.5 THE FERROUS STATE WAS FORMED BY SOAKING THE CRYSTALS FOR 30 MINUTES IN A RESERVOIR SOLUTION SUPPLEMENTED WITH 100 MM SODIUM DITHIONITE AND PEG400 BEFORE FLASH FREEZING	Resolution 1.70 Å R-free 0.200
1H5A STRUCTURE OF FERRIC HORSERADISH PEROXIDASE C1A IN COMPLEX WITH ACETATE Deposited 2001-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CA CALCIUM ION × 2 ACT ACETATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；20% (W/V) PEG 4000, 0.2 M CALCIUM ACETATE, 0.1 M CACODYLATE BUFFER, PH 6.5	Resolution 1.60 Å R-free 0.202
1H5C X-ray induced reduction of horseradish peroxidase C1A Compound III (100-200% dose) Deposited 2001-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 ACT ACETATE ION × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；20% (W/V) PEG 4000, 0.2 M CALCIUM ACETATE, 0.1 M CACODYLATE BUFFER, PH 6.5	Resolution 1.62 Å R-free 0.198
1H5D X-ray induced reduction of horseradish peroxidase C1A Compound III (0-11% dose) Deposited 2001-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 ACT ACETATE ION × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；20% (W/V) PEG 4000, 0.2 M CALCIUM ACETATE, 0.1 M CACODYLATE BUFFER, PH 6.5	Resolution 1.60 Å R-free 0.220
1H5E X-ray induced reduction of horseradish peroxidase C1A Compound III (11-22% dose) Deposited 2001-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 ACT ACETATE ION × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；20% (W/V) PEG 4000, 0.2 M CALCIUM ACETATE, 0.1 M CACODYLATE BUFFER, PH 6.5	Resolution 1.60 Å R-free 0.223
1H5F X-ray induced reduction of horseradish peroxidase C1A Compound III (22-33% dose) Deposited 2001-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 ACT ACETATE ION × 1 CA CALCIUM ION × 2 PEO HYDROGEN PEROXIDE × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；20% (W/V) PEG 4000, 0.2 M CALCIUM ACETATE, 0.1 M CACODYLATE BUFFER, PH 6.5	Resolution 1.60 Å R-free 0.220
1H5G X-ray induced reduction of horseradish peroxidase C1A Compound III (33-44% dose) Deposited 2001-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 ACT ACETATE ION × 1 CA CALCIUM ION × 2 PEO HYDROGEN PEROXIDE × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；20% (W/V) PEG 4000, 0.2 M CALCIUM ACETATE, 0.1 M CACODYLATE BUFFER, PH 6.5	Resolution 1.60 Å R-free 0.223
1H5H X-ray induced reduction of horseradish peroxidase C1A Compound III (44-56% dose) Deposited 2001-05-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 ACT ACETATE ION × 1 CA CALCIUM ION × 2 PEO HYDROGEN PEROXIDE × 11	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；20% (W/V) PEG 4000, 0.2 M CALCIUM ACETATE, 0.1 M CACODYLATE BUFFER, PH 6.5	Resolution 1.60 Å R-free 0.218
1H5I X-ray induced reduction of horseradish peroxidase C1A Compound III (56-67% dose) Deposited 2001-05-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 ACT ACETATE ION × 1 CA CALCIUM ION × 2 PEO HYDROGEN PEROXIDE × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；20% (W/V) PEG 4000, 0.2 M CALCIUM ACETATE AND 0.1 M CACODYLATE BUFFER, PH 6.5	Resolution 1.60 Å R-free 0.216
1H5J X-ray induced reduction of horseradish peroxidase C1A Compound III (67-78% dose) Deposited 2001-05-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 ACT ACETATE ION × 1 CA CALCIUM ION × 2 PEO HYDROGEN PEROXIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；20% (W/V) PEG 4000, 0.2 M CALCIUM ACETATE, 0.1 M CACODYLATE BUFFER, PH 6.5	Resolution 1.60 Å R-free 0.221
1H5K X-ray induced reduction of horseradish peroxidase C1A Compound III (78-89% dose) Deposited 2001-05-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 ACT ACETATE ION × 1 CA CALCIUM ION × 2 PEO HYDROGEN PEROXIDE × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；20% (W/V) PEG 4000, 0.2 M CALCIUM ACETATE, 0.1 M CACODYLATE BUFFER, PH 6.5	Resolution 1.60 Å R-free 0.213
1H5L X-ray induced reduction of horseradish peroxidase C1A Compound III (89-100% dose) Deposited 2001-05-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 ACT ACETATE ION × 1 CA CALCIUM ION × 2 PEO HYDROGEN PEROXIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；20% (W/V) PEG 4000, 0.2 M CALCIUM ACETATE, 0.1 M CACODYLATE BUFFER, PH 6.5	Resolution 1.60 Å R-free 0.219
1H5M X-ray induced reduction of horseradish peroxidase C1A Compound III (0-100% dose) Deposited 2001-05-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 ACT ACETATE ION × 1 CA CALCIUM ION × 2 PEO HYDROGEN PEROXIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；20% (W/V) PEG 4000, 0.2 M CALCIUM ACETATE, 0.1 M CACODYLATE BUFFER, PH 6.5	Resolution 1.60 Å R-free 0.198
1HCH Structure of horseradish peroxidase C1A compound I Deposited 2001-05-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–336（306 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 ACT ACETATE ION × 1 CA CALCIUM ION × 2 O OXYGEN ATOM × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；20% (W/V) PEG 4000, 0.2 M CALCIUM ACETATE AND 0.1 M CACODYLATE BUFFER, PH 6.5	Resolution 1.57 Å R-free 0.203
1KZM Distal Heme Pocket Mutant (R38S/H42E) of Recombinant Horseradish Peroxidase C (HRP C). Deposited 2002-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa） Fragment：Horseradish Peroxidase C1A (HRP C)	Mutation：R38S/H42E	CA CALCIUM ION × 2 CAC CACODYLATE ION × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；283 K；PEG-8000, calcium acetate, cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 283K	Resolution 2.00 Å R-free 0.203
1W4W Ferric horseradish peroxidase C1A in complex with formate Deposited 2004-08-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–353（323 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CA CALCIUM ION × 2 FMT FORMIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；20% PEG8000, 0.2M CA-ACETATE, 0.1 M NA-CACODYLATE PH 6.5, FERULIC ACID AS ADDITIVE STREAK SEEDING, HANGING DROP, 4DEGC	Resolution 1.55 Å R-free 0.215
1W4Y Ferrous horseradish peroxidase C1A in complex with carbon monoxide Deposited 2004-08-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–353（323 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CA CALCIUM ION × 2 CMO CARBON MONOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；20% PEG8000, 0.2 M CA-ACETATE, 0.1 M NA-CACODYLATE PH 6.5, FERULIC ACID AS ADDITIVE, HANGING DROP, STREAK SEEDING, 4DEGC	Resolution 1.60 Å R-free 0.211
2ATJ RECOMBINANT HORSERADISH PEROXIDASE COMPLEX WITH BENZHYDROXAMIC ACID Deposited 1997-08-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–337（307 aa）	Not recorded	CA CALCIUM ION × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 BHO BENZHYDROXAMIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.50	Resolution 2.00 Å R-free 0.198
2ATJ RECOMBINANT HORSERADISH PEROXIDASE COMPLEX WITH BENZHYDROXAMIC ACID Deposited 1997-08-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 31–337（307 aa）	Not recorded	CA CALCIUM ION × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 BHO BENZHYDROXAMIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.50	Resolution 2.00 Å R-free 0.198
2YLJ Horse Radish Peroxidase, mutant S167Y Deposited 2011-06-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–336（306 aa） Fragment：RESIDUES 31-336	Mutation：YES	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CA CALCIUM ION × 2 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7	Resolution 1.69 Å R-free 0.189
3ATJ HEME LIGAND MUTANT OF RECOMBINANT HORSERADISH PEROXIDASE IN COMPLEX WITH BENZHYDROXAMIC ACID Deposited 1998-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 31–338（308 aa） Chain B 31–338（308 aa）	Mutation：F221M Mutation：F221M	CA CALCIUM ION × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 2 BHO BENZHYDROXAMIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.5	Resolution 2.20 Å R-free 0.203
4ATJ DISTAL HEME POCKET MUTANT (H42E) OF RECOMBINANT HORSERADISH PEROXIDASE IN COMPLEX WITH BENZHYDROXAMIC ACID Deposited 1999-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 30–338（309 aa）	Mutation：H42E	CA CALCIUM ION × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 BHO BENZHYDROXAMIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.5	Resolution 2.50 Å R-free 0.194
4ATJ DISTAL HEME POCKET MUTANT (H42E) OF RECOMBINANT HORSERADISH PEROXIDASE IN COMPLEX WITH BENZHYDROXAMIC ACID Deposited 1999-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 30–338（309 aa）	Mutation：H42E	CA CALCIUM ION × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 BHO BENZHYDROXAMIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.5	Resolution 2.50 Å R-free 0.194
6ATJ RECOMBINANT HORSERADISH PEROXIDASE C COMPLEX WITH FERULIC ACID Deposited 1999-04-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Not recorded	CA CALCIUM ION × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 FER 3-(4-HYDROXY-3-METHOXYPHENYL)-2-PROPENOIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；16% (W/V) PEG 4000, 0.2 M CALCIUM ACETATE AND 0.1 M CACODYLATE BUFFER, PH 6.5	Resolution 2.00 Å R-free 0.199
7ATJ RECOMBINANT HORSERADISH PEROXIDASE C1A COMPLEX WITH CYANIDE AND FERULIC ACID Deposited 1999-04-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Not recorded	CA CALCIUM ION × 2 CYN CYANIDE ION × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 FER 3-(4-HYDROXY-3-METHOXYPHENYL)-2-PROPENOIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；16% (W/V) PEG 4000, 0.2 M CALCIUM ACETATE AND 0.1 M CACODYLATE BUFFER, PH 6.5	Resolution 1.47 Å R-free 0.203
9H1M Recombinant ferric horseradish peroxidase C1A Deposited 2024-10-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–338（308 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CA CALCIUM ION × 2 EDO 1,2-ETHANEDIOL × 5 2HP DIHYDROGENPHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277.15 K；25% (w/v) PEG 1500, 100 mM SPG (2:7:7, succinic acid:sodium hydrogen phosphate:glycine buffer pH 8.5	Resolution 1.63 Å R-free 0.189

31 other PDB entries and 34 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PER1A_ARMRU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–306； UniProt 31–336 Author chain B； PDBConstruct 1–306； UniProt 31–336 Author chain C； PDBConstruct 1–306； UniProt 31–336 Author chain D； PDBConstruct 1–306； UniProt 31–336 Author chain E； PDBConstruct 1–306； UniProt 31–336 Author chain F； PDBConstruct 1–306； UniProt 31–336

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

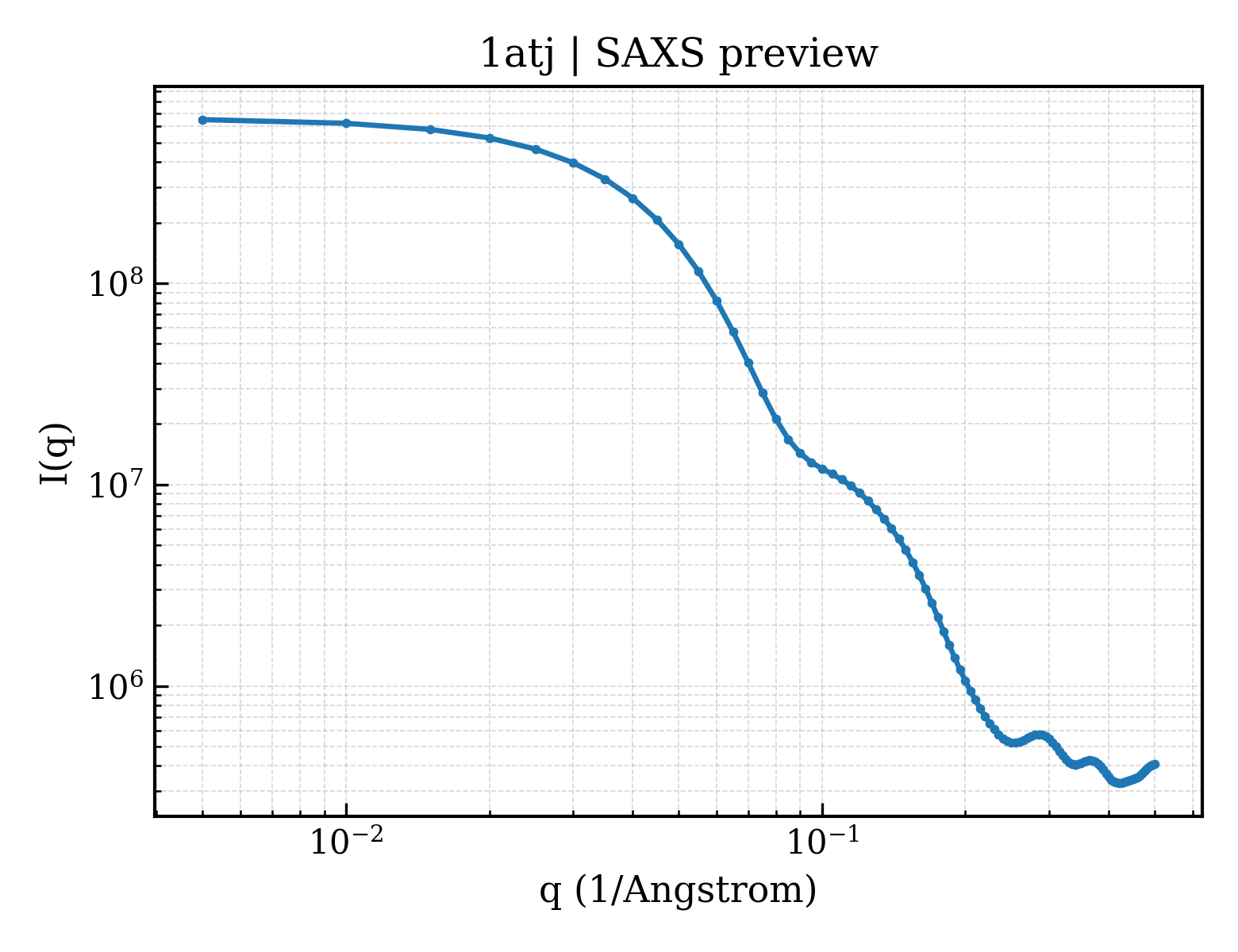

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1atj
Deposition date deposition_date	1997-08-14
Structure title title	RECOMBINANT HORSERADISH PEROXIDASE C1A
Keywords keywords	PEROXIDASE, OXIDOREDUCTASE, GLYCOPROTEIN; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	40.90 Å
Radius of gyration Rg (electron density) rg_electron	40.45 Å
Forward intensity I(0) i0	658307000.00
Molecular weight molecular_weight	206370.0 kDa
Excluded volume excluded_volume	256450 Å³
Envelope volume envelope_volume	331400 Å³
Hydration-shell volume shell_volume	67903 Å³
Envelope diameter envelope_diameter	136.1 Å
Shell Rg shell_rg	46.45 Å
Envelope Rg envelope_rg	39.79 Å
Shape Rg shape_rg	40.44 Å
Total Rg total_rg	40.77 Å
Total atoms total_atoms	17640
Residues n_residues	1836
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	130.7 Å
Rg (real space) rg_real	40.76 Å
Rg uncertainty (real space) rg_real_error	0.83 Å
I(0) (real space) i0_real	6.5830e+08
I(0) uncertainty (real space) i0_real_error	1.0260e+07
Rg (reciprocal space) rg_reciprocal	40.90 Å
I(0) (reciprocal space) i0_reciprocal	658400000.0000
Solution quality estimate total_estimate	0.8949
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	53.6 Å
Skewness Skewness skewness	0.175
Kurtosis Kurtosis kurtosis	-0.465
Angular range angular_range	— – 0.1950 Å⁻¹
Current regularization parameter α current_alpha	0.0001
Highest regularization parameter α highest_alpha	75390000.0000
Real-space data points n_real_points	40
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.914; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.888

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	PEROXIDASE C1A
Molecular weight formula_weight	33747.0 kDa
EC 编号 ec_number	1.11.1.7
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	18528

QLTPTFYDNSCPNVSNIVRDTIVNELRSDPRIAASILRLHFHDCFVNGCDASILLDNTTSFRTEKDAFGNANSARGFPVIDRMKAAVESACPRTVSCADLLTIAAQQSVTLAGGPSWRVPLGRRDSLQAFLDLANANLPAPFFTLPQLKDSFRNVGLNRSSDLVALSGGHTFGKNQCRFIMDRLYNFSNTGLPDPTLNTTYLQTLRGLCPLNGNLSALVDFDLRTPTIFDNKYYVNLEEQKGLIQSDQELFSSPNATDTIPLVRSFANSTQTFFNAFVEAMDRMGNITPLTGTQGQIRLNCRVVNS

来源 Source

来源生物 organism	Armoracia rusticana
NCBI Class编号 ncbi_taxonomy_id	3704
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 3 Entity 3 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	888

▼

7. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1atja_
Class class	a — All alpha proteins
Fold Fold fold	a.93 — Heme-dependent peroxidases
Superfamily Superfamily superfamily	a.93.1 — Heme-dependent peroxidases
Family Family family	a.93.1.1 — CCP-like

Domain ID domain_id	d1atjb_
Class class	a — All alpha proteins
Fold Fold fold	a.93 — Heme-dependent peroxidases
Superfamily Superfamily superfamily	a.93.1 — Heme-dependent peroxidases
Family Family family	a.93.1.1 — CCP-like

Domain ID domain_id	d1atjc_
Class class	a — All alpha proteins
Fold Fold fold	a.93 — Heme-dependent peroxidases
Superfamily Superfamily superfamily	a.93.1 — Heme-dependent peroxidases
Family Family family	a.93.1.1 — CCP-like

Domain ID domain_id	d1atjd_
Class class	a — All alpha proteins
Fold Fold fold	a.93 — Heme-dependent peroxidases
Superfamily Superfamily superfamily	a.93.1 — Heme-dependent peroxidases
Family Family family	a.93.1.1 — CCP-like

Domain ID domain_id	d1atje_
Class class	a — All alpha proteins
Fold Fold fold	a.93 — Heme-dependent peroxidases
Superfamily Superfamily superfamily	a.93.1 — Heme-dependent peroxidases
Family Family family	a.93.1.1 — CCP-like

Domain ID domain_id	d1atjf_
Class class	a — All alpha proteins
Fold Fold fold	a.93 — Heme-dependent peroxidases
Superfamily Superfamily superfamily	a.93.1 — Heme-dependent peroxidases
Family Family family	a.93.1.1 — CCP-like

CATH v4.4 (12 domains)

Domain ID domain_id	1atjA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	520 — Peroxidase; domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1atjA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	420 — Peroxidase; domain 2
Homologous superfamily homologous superfamily	10 — Peroxidase, domain 2

Domain ID domain_id	1atjB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	520 — Peroxidase; domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1atjB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	420 — Peroxidase; domain 2
Homologous superfamily homologous superfamily	10 — Peroxidase, domain 2

Domain ID domain_id	1atjC01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	520 — Peroxidase; domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1atjC02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	420 — Peroxidase; domain 2
Homologous superfamily homologous superfamily	10 — Peroxidase, domain 2

Domain ID domain_id	1atjD01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	520 — Peroxidase; domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1atjD02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	420 — Peroxidase; domain 2
Homologous superfamily homologous superfamily	10 — Peroxidase, domain 2

Domain ID domain_id	1atjE01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	520 — Peroxidase; domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1atjE02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	420 — Peroxidase; domain 2
Homologous superfamily homologous superfamily	10 — Peroxidase, domain 2

Domain ID domain_id	1atjF01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	520 — Peroxidase; domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1atjF02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	420 — Peroxidase; domain 2
Homologous superfamily homologous superfamily	10 — Peroxidase, domain 2

▶

8. Citations (2)

▶

Unit-cell length a length_a	159.170 Å
Unit-cell length b length_b	159.170 Å
Unit-cell length c length_c	114.270 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	36

Space group space_group	P 31 1 2
Space-group number int_tables_number	151
Crystal system crystal_system	—

Resolution resolution	2.150 Å
Low-resolution limit resolution_low	100.000 Å
R factor r_factor	0.2220
R_work r_work	0.2220
R_free r_free	0.2420

fit	/app/data/saxs_computation/at/1atj/1atj.fit
pddf	/app/data/pr_computation/at/1atj/1atj.pr.out
profile	/app/data/saxs_computation/at/1atj/1atj.dat
