SAXSdb — 1auo

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CARBOXYLESTERASE

Pseudomonas fluorescens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–218 Chain B； UniProt 1–218	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；pH 7.0	Resolution 1.80 Å R-free 0.273

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1AUO	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AUR PMSF-INHIBITED CARBOXYLESTERASE FROM PSEUDOMONAS FLUORESCENS Deposited 1997-09-01	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–218（218 aa） Chain B 1–218（218 aa）	Not recorded	PMS phenylmethanesulfonic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.0	Resolution 2.50 Å R-free 0.254

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EST2_PSEFL
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–218； UniProt 1–218 Author chain B； PDBConstruct 1–218； UniProt 1–218

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1auo
Deposition date deposition_date	1997-09-01
Structure title title	CARBOXYLESTERASE FROM PSEUDOMONAS FLUORESCENS
Keywords keywords	HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.92 Å
Radius of gyration Rg (electron density) rg_electron	25.27 Å
Forward intensity I(0) i0	37162800.00
Molecular weight molecular_weight	47743.0 kDa
Excluded volume excluded_volume	59973 Å³
Envelope volume envelope_volume	70988 Å³
Hydration-shell volume shell_volume	24289 Å³
Envelope diameter envelope_diameter	86.1 Å
Shell Rg shell_rg	31.59 Å
Envelope Rg envelope_rg	25.22 Å
Shape Rg shape_rg	25.24 Å
Total Rg total_rg	26.10 Å
Total atoms total_atoms	3364
Residues n_residues	436
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	84.2 Å
Rg (real space) rg_real	26.04 Å
Rg uncertainty (real space) rg_real_error	0.60 Å
I(0) (real space) i0_real	3.7160e+07
I(0) uncertainty (real space) i0_real_error	5.2300e+05
Rg (reciprocal space) rg_reciprocal	26.00 Å
I(0) (reciprocal space) i0_reciprocal	37160000.0000
Solution quality estimate total_estimate	0.8692
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	26.2 Å
Skewness Skewness skewness	0.459
Kurtosis Kurtosis kurtosis	-0.423
Angular range angular_range	— – 0.3050 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	6656000.0000
Real-space data points n_real_points	62
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.821; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.938; Smooth: 0.897

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1auoa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.14 — Carboxylesterase/thioesterase 1

Domain ID domain_id	d1auob_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.14 — Carboxylesterase/thioesterase 1

CATH v4.4 (2 domains)

Domain ID domain_id	1auoA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	1auoB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	82.040 Å
Unit-cell length b length_b	82.040 Å
Unit-cell length c length_c	145.380 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2080
R_work r_work	0.2080
R_free r_free	0.2730

Description description	CARBOXYLESTERASE
Molecular weight formula_weight	23901.2 kDa
EC 编号 ec_number	3.1.1.1
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3599

CARBOXYLESTERASE FROM PSEUDOMONAS FLUORESCENS

1. Protein Identity and Related Structures Protein Identity & Related Structures

CARBOXYLESTERASE

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

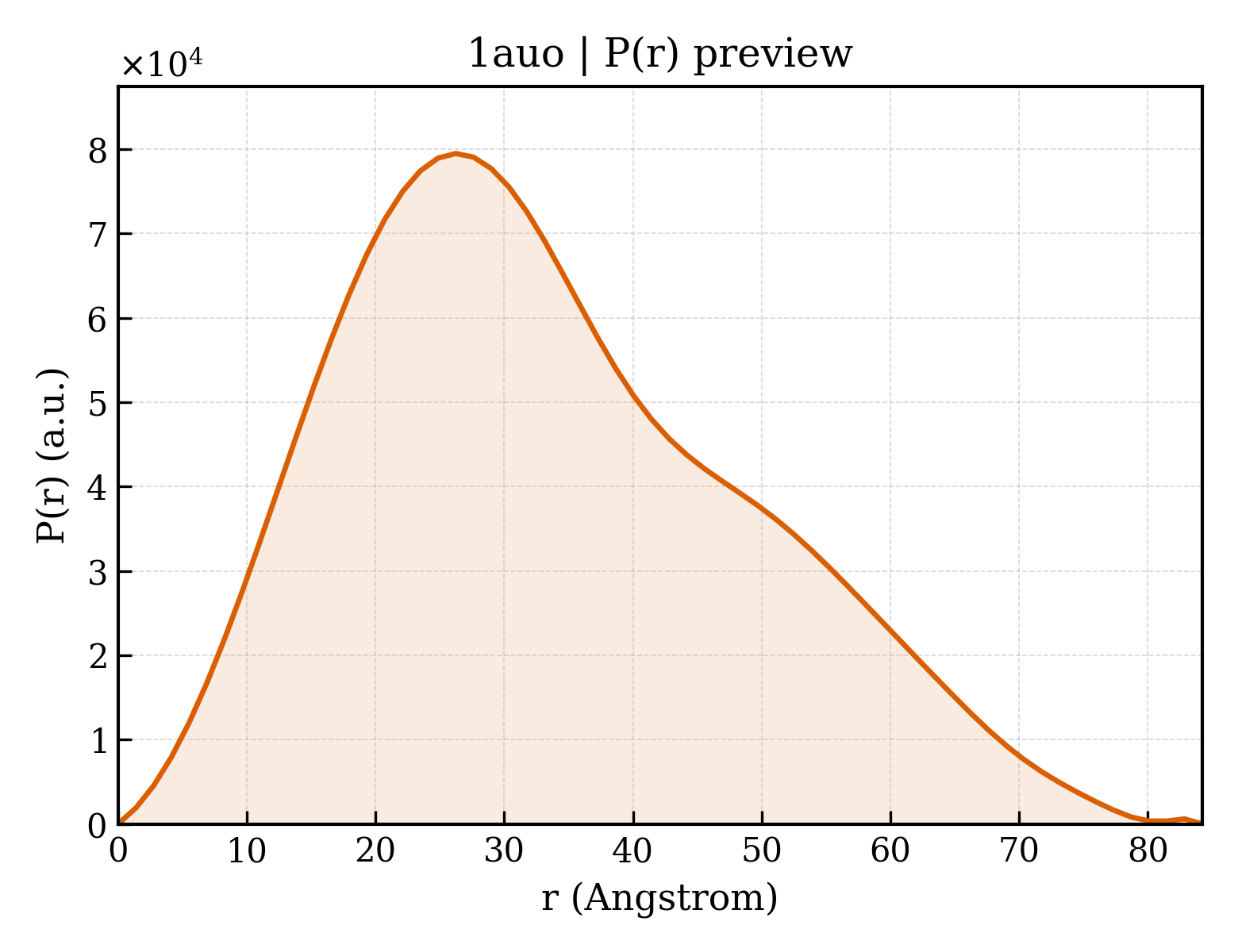

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Pseudomonas fluorescens
NCBI Class编号 ncbi_taxonomy_id	294
宿主生物 host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	235

fit	/app/data/saxs_computation/au/1auo/1auo.fit
pddf	/app/data/pr_computation/au/1auo/1auo.pr.out
profile	/app/data/saxs_computation/au/1auo/1auo.dat
