SAXSdb — 1aur

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CARBOXYLESTERASE

Pseudomonas fluorescens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–218 Chain B； UniProt 1–218	Not recorded	PMS phenylmethanesulfonic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；pH 7.0	Resolution 2.50 Å R-free 0.254

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1AUR	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AUO CARBOXYLESTERASE FROM PSEUDOMONAS FLUORESCENS Deposited 1997-09-01	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–218（218 aa） Chain B 1–218（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.0	Resolution 1.80 Å R-free 0.273

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EST2_PSEFL
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–218； UniProt 1–218 Author chain B； PDBConstruct 1–218； UniProt 1–218

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1aur
Deposition date deposition_date	1997-09-01
Structure title title	PMSF-INHIBITED CARBOXYLESTERASE FROM PSEUDOMONAS FLUORESCENS
Keywords keywords	HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.90 Å
Radius of gyration Rg (electron density) rg_electron	25.26 Å
Forward intensity I(0) i0	37558400.00
Molecular weight molecular_weight	48053.0 kDa
Excluded volume excluded_volume	60352 Å³
Envelope volume envelope_volume	71094 Å³
Hydration-shell volume shell_volume	24296 Å³
Envelope diameter envelope_diameter	86.3 Å
Shell Rg shell_rg	31.62 Å
Envelope Rg envelope_rg	25.27 Å
Shape Rg shape_rg	25.23 Å
Total Rg total_rg	26.08 Å
Total atoms total_atoms	3384
Residues n_residues	436
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

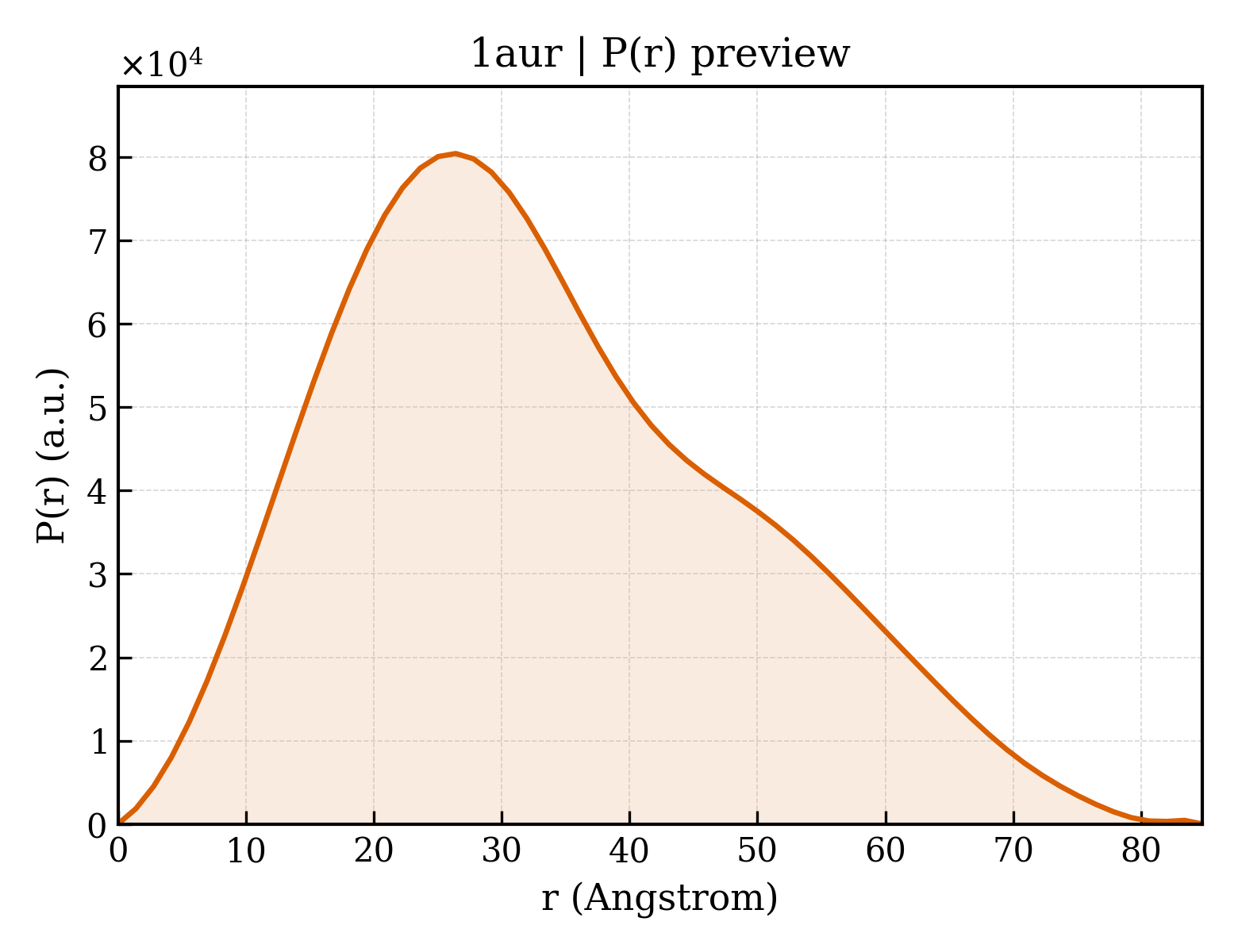

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	84.8 Å
Rg (real space) rg_real	26.03 Å
Rg uncertainty (real space) rg_real_error	0.72 Å
I(0) (real space) i0_real	3.7560e+07
I(0) uncertainty (real space) i0_real_error	5.9590e+05
Rg (reciprocal space) rg_reciprocal	25.99 Å
I(0) (reciprocal space) i0_reciprocal	37560000.0000
Solution quality estimate total_estimate	0.8655
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	26.4 Å
Skewness Skewness skewness	0.466
Kurtosis Kurtosis kurtosis	-0.416
Angular range angular_range	— – 0.3050 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	7202000.0000
Real-space data points n_real_points	62
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.805; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.930; Smooth: 0.903

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	CARBOXYLESTERASE
Molecular weight formula_weight	23901.2 kDa
EC 编号 ec_number	3.1.1.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3578

MTEPLILQPAKPADACVIWLHGLGADRYDFMPVAEALQESLLTTRFVLPQAPTRPVTINGGYEMPSWYDIKAMSPARSISLEELEVSAKMVTDLIEAQKRTGIDASRIFLAGFSQGGAVVFHTAFINWQGPLGGVIALSTYAPTFGDELELSASQQRIPALCLHGQYDDVVQNAMGRSAFEHLKSRGVTVTWQEYPMGHEVLPQEIHDIGAWLAARLG

来源 Source

来源生物 organism	Pseudomonas fluorescens
NCBI Class编号 ncbi_taxonomy_id	294
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	phenylmethanesulfonic acid
Molecular weight formula_weight	172.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	194

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1aura_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.14 — Carboxylesterase/thioesterase 1

Domain ID domain_id	d1aurb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.14 — Carboxylesterase/thioesterase 1

CATH v4.4 (2 domains)

Domain ID domain_id	1aurA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	1aurB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	81.490 Å
Unit-cell length b length_b	81.490 Å
Unit-cell length c length_c	144.530 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.1810
R_work r_work	0.1810
R_free r_free	0.2540

fit	/app/data/saxs_computation/au/1aur/1aur.fit
pddf	/app/data/pr_computation/au/1aur/1aur.pr.out
profile	/app/data/saxs_computation/au/1aur/1aur.dat
