1aw2

TRIOSEPHOSPHATE ISOMERASE OF VIBRIO MARINUS

Method: X-RAY DIFFRACTION D_max: 175.5 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRIOSEPHOSPHATE ISOMERASE

Moritella marina

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–256 Chain B； UniProt 1–256	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；100MM TRIETHANOLAMINE/HCL 100MM AMMONIUM SULFATE, 1MM DTT, EDTA, NAN3 1.26M SODIUM CITRATE PH 7.0	Resolution 2.65 Å R-free 0.219
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 1–256 Chain E； UniProt 1–256	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；100MM TRIETHANOLAMINE/HCL 100MM AMMONIUM SULFATE, 1MM DTT, EDTA, NAN3 1.26M SODIUM CITRATE PH 7.0	Resolution 2.65 Å R-free 0.219
3	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain G； UniProt 1–256 Chain H； UniProt 1–256	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；100MM TRIETHANOLAMINE/HCL 100MM AMMONIUM SULFATE, 1MM DTT, EDTA, NAN3 1.26M SODIUM CITRATE PH 7.0	Resolution 2.65 Å R-free 0.219
4	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain J； UniProt 1–256 Chain K； UniProt 1–256	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；100MM TRIETHANOLAMINE/HCL 100MM AMMONIUM SULFATE, 1MM DTT, EDTA, NAN3 1.26M SODIUM CITRATE PH 7.0	Resolution 2.65 Å R-free 0.219

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1AW2	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AW1 TRIOSEPHOSPHATE ISOMERASE OF VIBRIO MARINUS COMPLEXED WITH 2-PHOSPHOGLYCOLATE Deposited 1997-10-09	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–256（256 aa） Chain B 1–256（256 aa）	Not recorded	PGA 2-PHOSPHOGLYCOLIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；100MM TRIETHANOLAMINE/HCL 2.OM AMMONIUM SULFATE, 1MM DTT, EDTA, NAN3 20MM PGA PH 7.5	Resolution 2.70 Å R-free 0.215
1AW1 TRIOSEPHOSPHATE ISOMERASE OF VIBRIO MARINUS COMPLEXED WITH 2-PHOSPHOGLYCOLATE Deposited 1997-10-09	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain D 1–256（256 aa） Chain E 1–256（256 aa）	Not recorded	PGA 2-PHOSPHOGLYCOLIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；100MM TRIETHANOLAMINE/HCL 2.OM AMMONIUM SULFATE, 1MM DTT, EDTA, NAN3 20MM PGA PH 7.5	Resolution 2.70 Å R-free 0.215
1AW1 TRIOSEPHOSPHATE ISOMERASE OF VIBRIO MARINUS COMPLEXED WITH 2-PHOSPHOGLYCOLATE Deposited 1997-10-09	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain G 1–256（256 aa） Chain H 1–256（256 aa）	Not recorded	PGA 2-PHOSPHOGLYCOLIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；100MM TRIETHANOLAMINE/HCL 2.OM AMMONIUM SULFATE, 1MM DTT, EDTA, NAN3 20MM PGA PH 7.5	Resolution 2.70 Å R-free 0.215
1AW1 TRIOSEPHOSPHATE ISOMERASE OF VIBRIO MARINUS COMPLEXED WITH 2-PHOSPHOGLYCOLATE Deposited 1997-10-09	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain J 1–256（256 aa） Chain K 1–256（256 aa）	Not recorded	PGA 2-PHOSPHOGLYCOLIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；100MM TRIETHANOLAMINE/HCL 2.OM AMMONIUM SULFATE, 1MM DTT, EDTA, NAN3 20MM PGA PH 7.5	Resolution 2.70 Å R-free 0.215

1 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TPIS_VIBMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–256； UniProt 1–256 Author chain B； PDBConstruct 1–256； UniProt 1–256 Author chain D； PDBConstruct 1–256； UniProt 1–256 Author chain E； PDBConstruct 1–256； UniProt 1–256 Author chain G； PDBConstruct 1–256； UniProt 1–256 Author chain H； PDBConstruct 1–256； UniProt 1–256 Author chain J； PDBConstruct 1–256； UniProt 1–256 Author chain K； PDBConstruct 1–256； UniProt 1–256

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

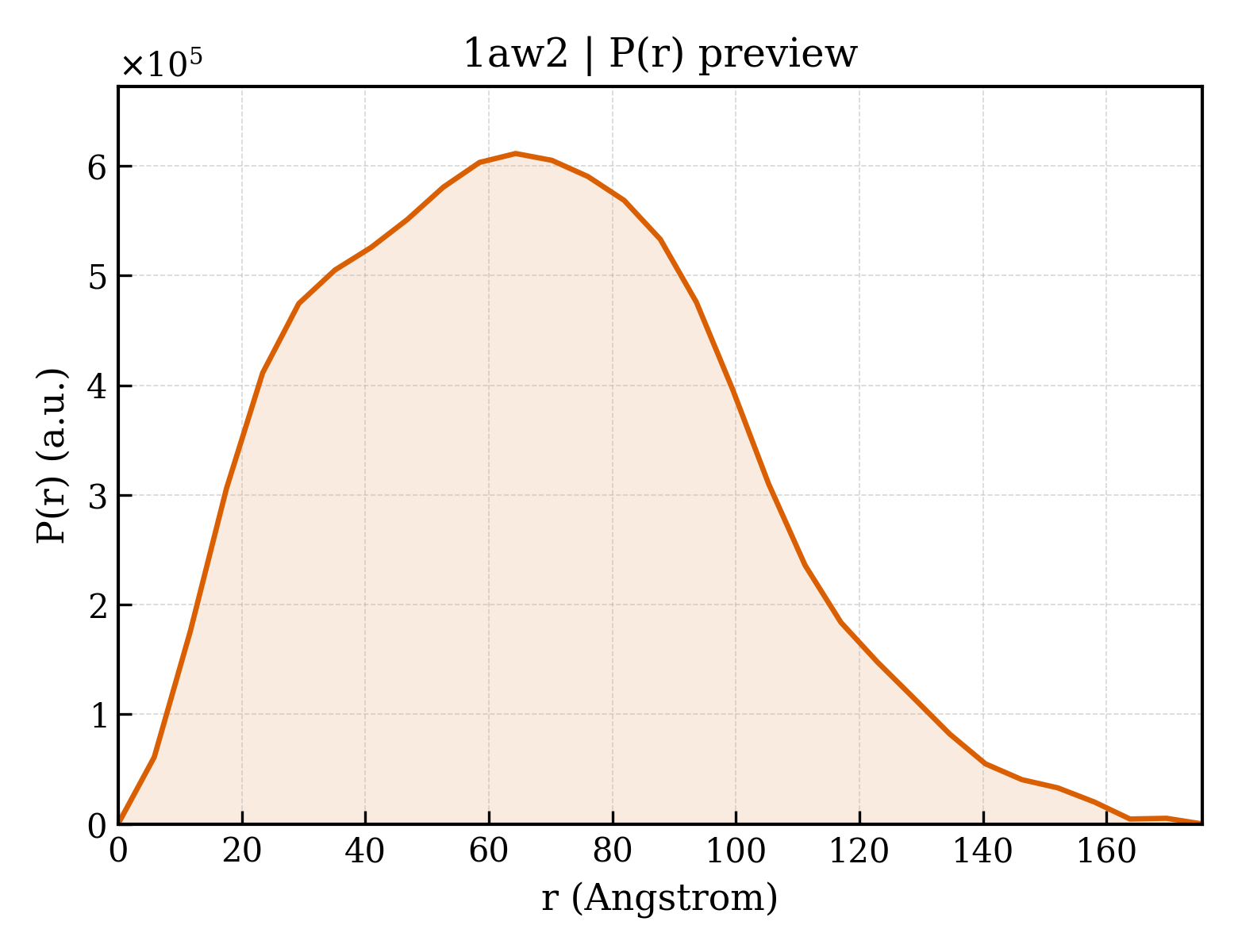

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1aw2
Deposition date deposition_date	1997-10-09
Structure title title	TRIOSEPHOSPHATE ISOMERASE OF VIBRIO MARINUS
Keywords keywords	ISOMERASE, PSYCHROPHILIC, VIBRIO MARINUS; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	52.01 Å
Radius of gyration Rg (electron density) rg_electron	52.09 Å
Forward intensity I(0) i0	676996000.00
Molecular weight molecular_weight	212790.0 kDa
Excluded volume excluded_volume	265020 Å³
Envelope volume envelope_volume	361210 Å³
Hydration-shell volume shell_volume	60166 Å³
Envelope diameter envelope_diameter	183.3 Å
Shell Rg shell_rg	51.14 Å
Envelope Rg envelope_rg	51.57 Å
Shape Rg shape_rg	52.10 Å
Total Rg total_rg	52.03 Å
Total atoms total_atoms	14964
Residues n_residues	2036
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	175.5 Å
Rg (real space) rg_real	52.14 Å
Rg uncertainty (real space) rg_real_error	2.47 Å
I(0) (real space) i0_real	6.7700e+08
I(0) uncertainty (real space) i0_real_error	1.4700e+07
Rg (reciprocal space) rg_reciprocal	51.89 Å
I(0) (reciprocal space) i0_reciprocal	676800000.0000
Solution quality estimate total_estimate	0.6374
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	64.4 Å
Skewness Skewness skewness	0.319
Kurtosis Kurtosis kurtosis	-0.401
Angular range angular_range	— – 0.1500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	24260000.0000
Real-space data points n_real_points	31
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.866; Stabil: 1.000; Sysdev: 0.062; Positv: 1.000; Valcen: 0.979; Smooth: 0.520

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	TRIOSEPHOSPHATE ISOMERASE
Molecular weight formula_weight	26766.2 kDa
EC 编号 ec_number	5.3.1.1
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,D,E,G,H,J,K
Atom count atom_count	15136

MRHPVVMGNWKLNGSKEMVVDLLNGLNAELEGVTGVDVAVAPPALFVDLAERTLTEAGSAIILGAQNTDLNNSGAFTGDMSPAMLKEFGATHIIIGHSERREYHAESDEFVAKKFAFLKENGLTPVLCIGESDAQNEAGETMAVCARQLDAVINTQGVEALEGAIIAYEPIWAIGTGKAATAEDAQRIHAQIRAHIAEKSEAVAKNVVIQYGGSVKPENAAAYFAQPDIDGALVGGAALDAKSFAAIAKAAAEAKA

来源 Source

来源生物 organism	Moritella marina
NCBI Class编号 ncbi_taxonomy_id	90736
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	172

▼

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1aw2a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.1 — Triosephosphate isomerase (TIM)
Family Family family	c.1.1.1 — Triosephosphate isomerase (TIM)

Domain ID domain_id	d1aw2b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.1 — Triosephosphate isomerase (TIM)
Family Family family	c.1.1.1 — Triosephosphate isomerase (TIM)

Domain ID domain_id	d1aw2d_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.1 — Triosephosphate isomerase (TIM)
Family Family family	c.1.1.1 — Triosephosphate isomerase (TIM)

Domain ID domain_id	d1aw2e_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.1 — Triosephosphate isomerase (TIM)
Family Family family	c.1.1.1 — Triosephosphate isomerase (TIM)

Domain ID domain_id	d1aw2g_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.1 — Triosephosphate isomerase (TIM)
Family Family family	c.1.1.1 — Triosephosphate isomerase (TIM)

Domain ID domain_id	d1aw2h_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.1 — Triosephosphate isomerase (TIM)
Family Family family	c.1.1.1 — Triosephosphate isomerase (TIM)

Domain ID domain_id	d1aw2j_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.1 — Triosephosphate isomerase (TIM)
Family Family family	c.1.1.1 — Triosephosphate isomerase (TIM)

Domain ID domain_id	d1aw2k_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.1 — Triosephosphate isomerase (TIM)
Family Family family	c.1.1.1 — Triosephosphate isomerase (TIM)

CATH v4.4 (8 domains)

Domain ID domain_id	1aw2A00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	1aw2B00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	1aw2D00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	1aw2E00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	1aw2G00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	1aw2H00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	1aw2J00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	1aw2K00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

▶

8. Citations (1)

▶

Unit-cell length a length_a	89.660 Å
Unit-cell length b length_b	137.820 Å
Unit-cell length c length_c	89.540 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.94 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.650 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2000
R_work r_work	0.2000
R_free r_free	0.2190
