1awd

FERREDOXIN [2FE-2S] OXIDIZED FORM FROM CHLORELLA FUSCA

Method: X-RAY DIFFRACTION D_max: 40.1 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

FERREDOXIN

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–94	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8；1.3 M SODIUM CITRATE, 0.1 M GLYCINE AT PH 8.0	Resolution 1.40 Å R-free 0.181

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	FER_CHLFU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–94； UniProt 1–94

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

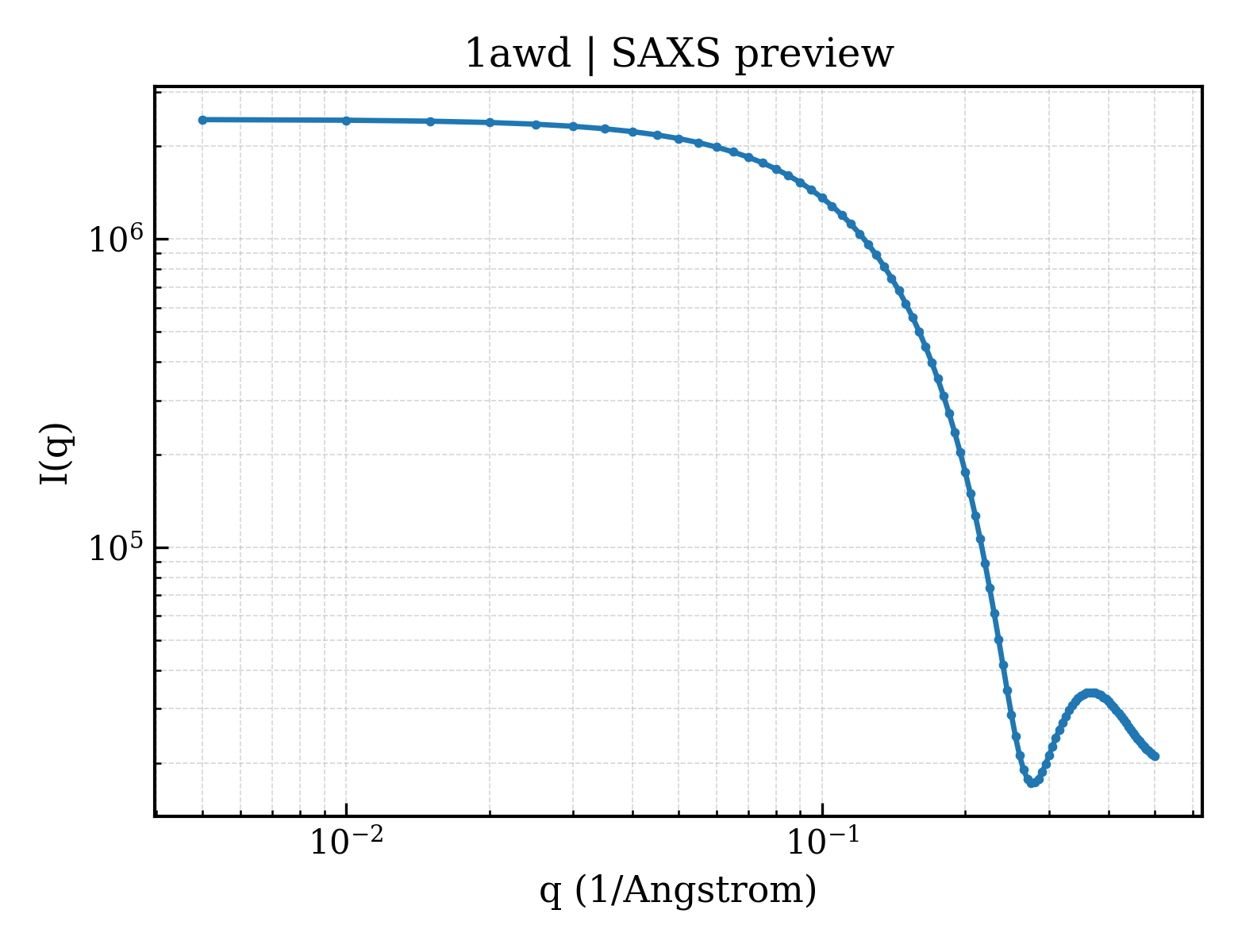

SAXS scattering curve SAXS Profile

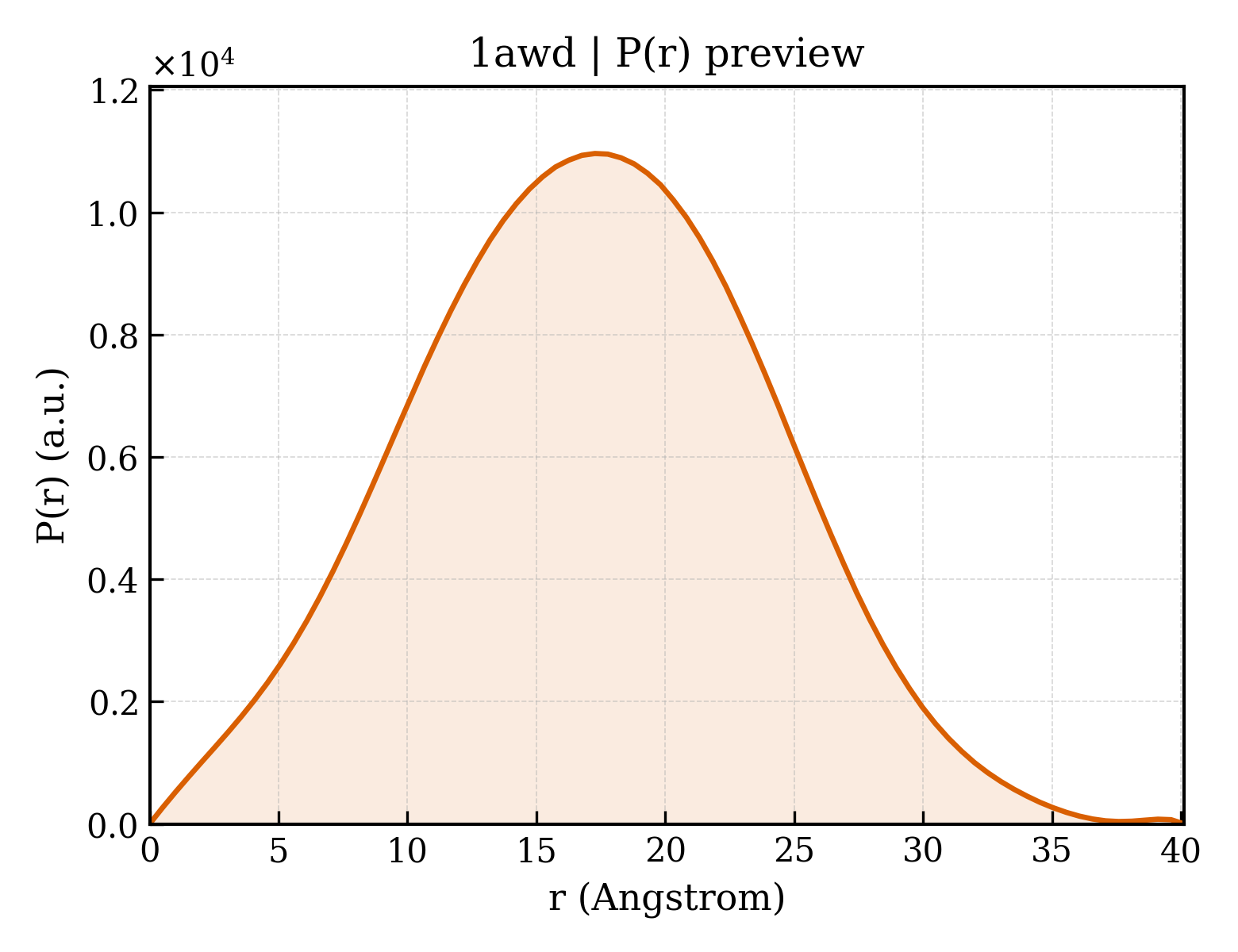

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1awd
Deposition date deposition_date	1997-10-01
Structure title title	FERREDOXIN [2FE-2S] OXIDIZED FORM FROM CHLORELLA FUSCA
Keywords keywords	ELECTRON TRANSPORT, EUKARYOTIC, GREEN ALGA, ELECTRON TRANSFER, METALLOPROTEIN; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	13.14 Å
Radius of gyration Rg (electron density) rg_electron	11.77 Å
Forward intensity I(0) i0	2441850.00
Molecular weight molecular_weight	10184.0 kDa
Excluded volume excluded_volume	12409 Å³
Envelope volume envelope_volume	13420 Å³
Hydration-shell volume shell_volume	9759 Å³
Envelope diameter envelope_diameter	38.7 Å
Shell Rg shell_rg	17.42 Å
Envelope Rg envelope_rg	12.01 Å
Shape Rg shape_rg	11.81 Å
Total Rg total_rg	12.94 Å
Total atoms total_atoms	703
Residues n_residues	94
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	40.1 Å
Rg (real space) rg_real	13.03 Å
Rg uncertainty (real space) rg_real_error	0.20 Å
I(0) (real space) i0_real	2.4420e+06
I(0) uncertainty (real space) i0_real_error	2.4330e+04
Rg (reciprocal space) rg_reciprocal	13.03 Å
I(0) (reciprocal space) i0_reciprocal	2442000.0000
Solution quality estimate total_estimate	0.8964
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	17.3 Å
Skewness Skewness skewness	0.050
Kurtosis Kurtosis kurtosis	-0.366
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	391300.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.894; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.988

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1awda_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.4 — 2Fe-2S ferredoxin-like
Family Family family	d.15.4.1 — 2Fe-2S ferredoxin-related

CATH v4.4 (1 domains)

Domain ID domain_id	1awdA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	30 — Beta-grasp domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	112.440 Å
Unit-cell length b length_b	112.440 Å
Unit-cell length c length_c	112.440 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	I 4 3 2
Space-group number int_tables_number	211
Crystal system crystal_system	—

Resolution resolution	1.400 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1464
R_work r_work	—
R_free r_free	0.1811

Description description	FERREDOXIN
Molecular weight formula_weight	10026.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	838

FERREDOXIN [2FE-2S] OXIDIZED FORM FROM CHLORELLA FUSCA

1. Protein Identity and Related Structures Protein Identity & Related Structures

FERREDOXIN

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 water

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

CATH v4.4 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

Description description	FE2/S2 (INORGANIC) CLUSTER
Molecular weight formula_weight	175.8 kDa
Source method src_method	syn
Copy count entity_count	1

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	126

fit	/app/data/saxs_computation/aw/1awd/1awd.fit
pddf	/app/data/pr_computation/aw/1awd/1awd.pr.out
profile	/app/data/saxs_computation/aw/1awd/1awd.dat
