1axd
STRUCTURE OF GLUTATHIONE S-TRANSFERASE-I BOUND WITH THE LIGAND LACTOYLGLUTATHIONE

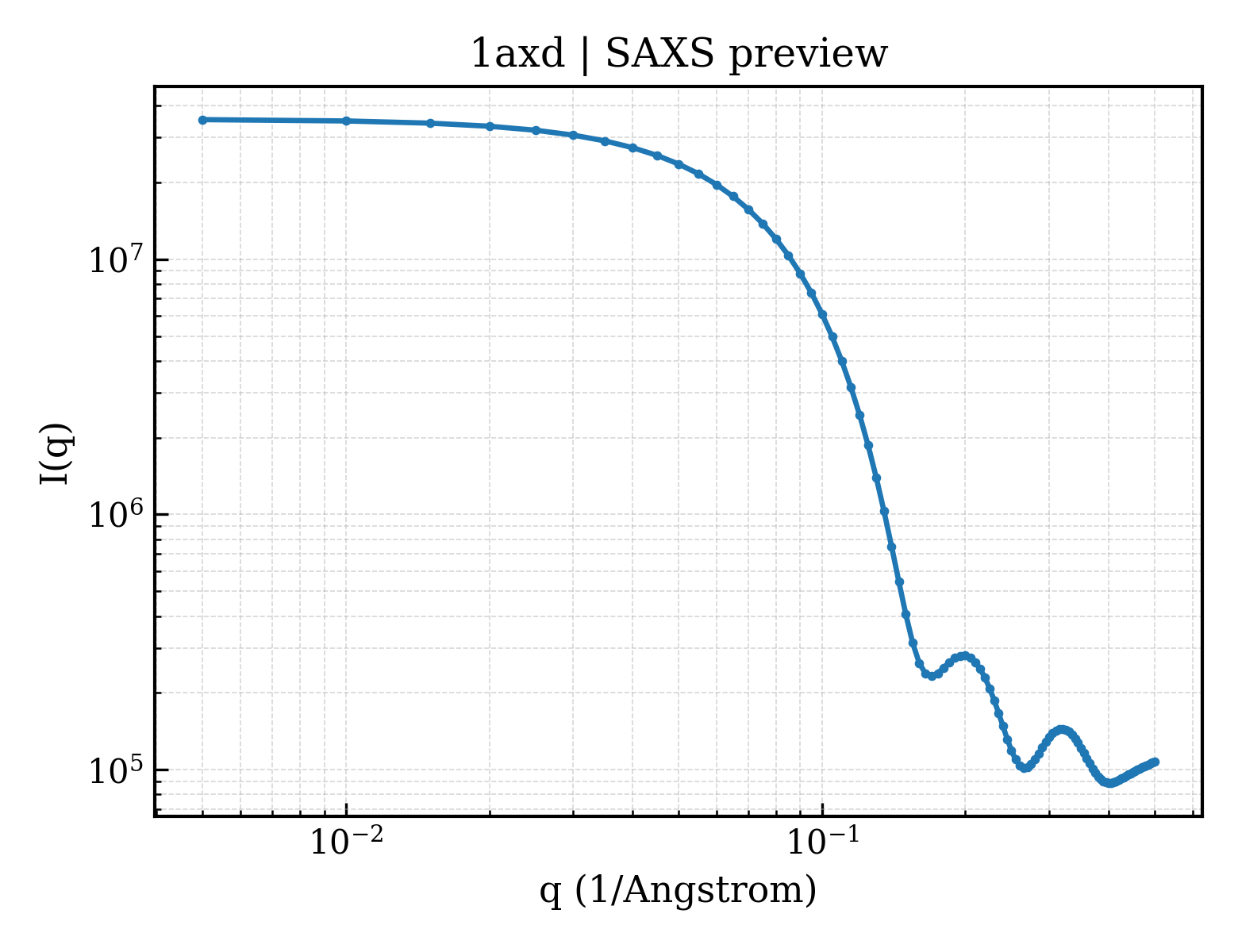

SAXS Profile

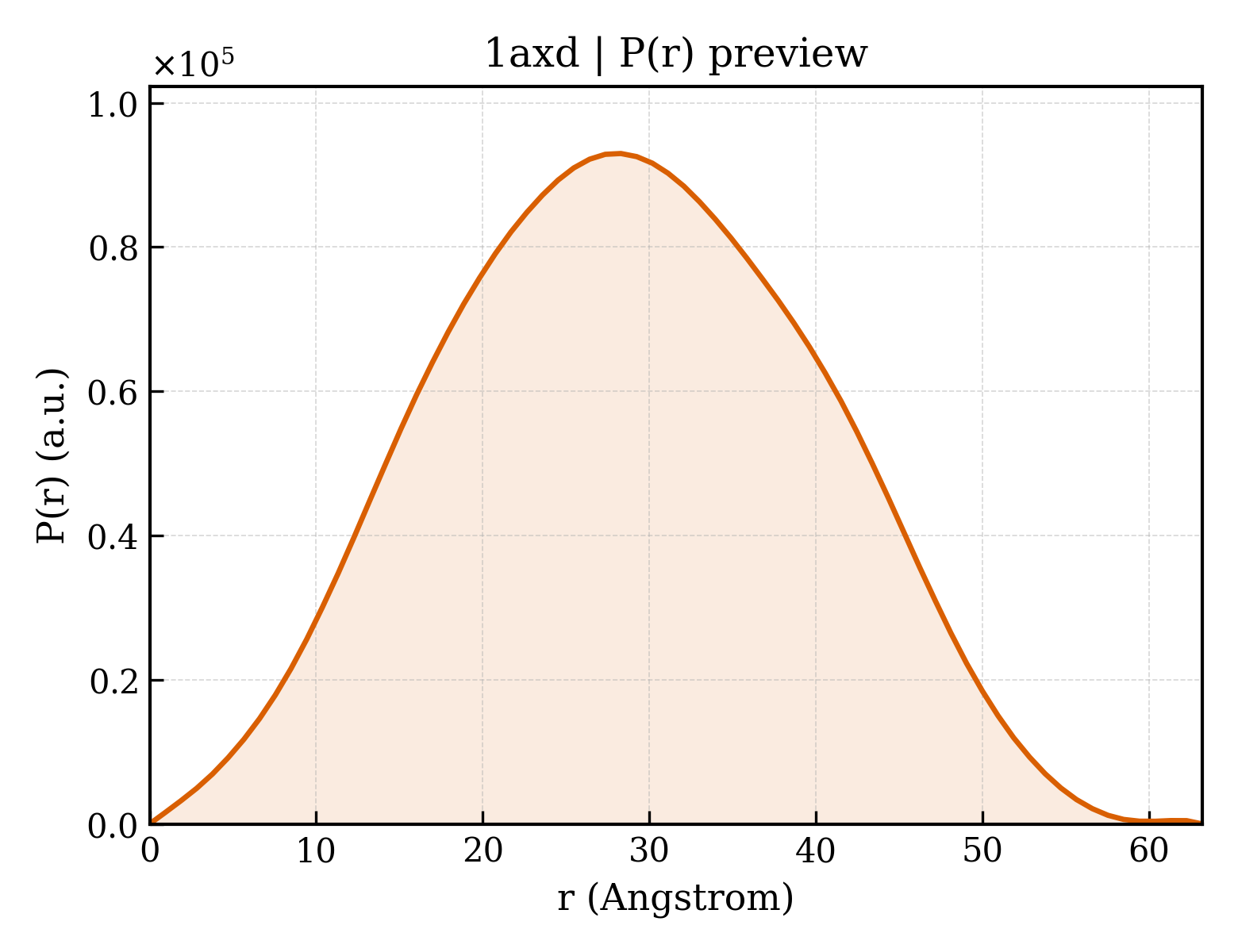

P(r) Distribution
1. Structure Basics
| entry_id | 1axd |
| deposition_date | 1997-10-15 |
| title | STRUCTURE OF GLUTATHIONE S-TRANSFERASE-I BOUND WITH THE LIGAND LACTOYLGLUTATHIONE |
| keywords | TRANSFERASE, HERBICIDE DETOXIFICATION, TRANSFERASE-TRANSFERASE INHIBITOR COMPLEX; TRANSFERASE/TRANSFERASE INHIBITOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 21.98 Å |
| rg_electron | 20.91 Å |
| i0 | 35328100.00 |
| molecular_weight | 47363.0 kDa |
| excluded_volume | 59829 ų |
| envelope_volume | 68336 ų |
| shell_volume | 26149 ų |
| envelope_diameter | 64.2 Å |
| shell_rg | 28.46 Å |
| envelope_rg | 20.95 Å |
| shape_rg | 20.91 Å |
| total_rg | 21.83 Å |
| total_atoms | 4026 |
| n_residues | 420 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 63.2 Å |
| rg_real | 21.77 Å |
| rg_real_error | 0.28 Å |
| i0_real | 3.5330e+07 |
| i0_real_error | 3.9420e+05 |
| rg_reciprocal | 21.81 Å |
| i0_reciprocal | 35330000.0000 |
| total_estimate | 0.9135 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 28.3 Å |
| skewness | 0.035 |
| kurtosis | -0.570 |
| angular_range | — – 0.3600 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 7063000.0000 |
| n_real_points | 68 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.967; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.972; Smooth: 0.997 |
