1axh
ATRACOTOXIN-HVI FROM HADRONYCHE VERSUTA (AUSTRALIAN FUNNEL-WEB SPIDER, NMR, 20 STRUCTURES

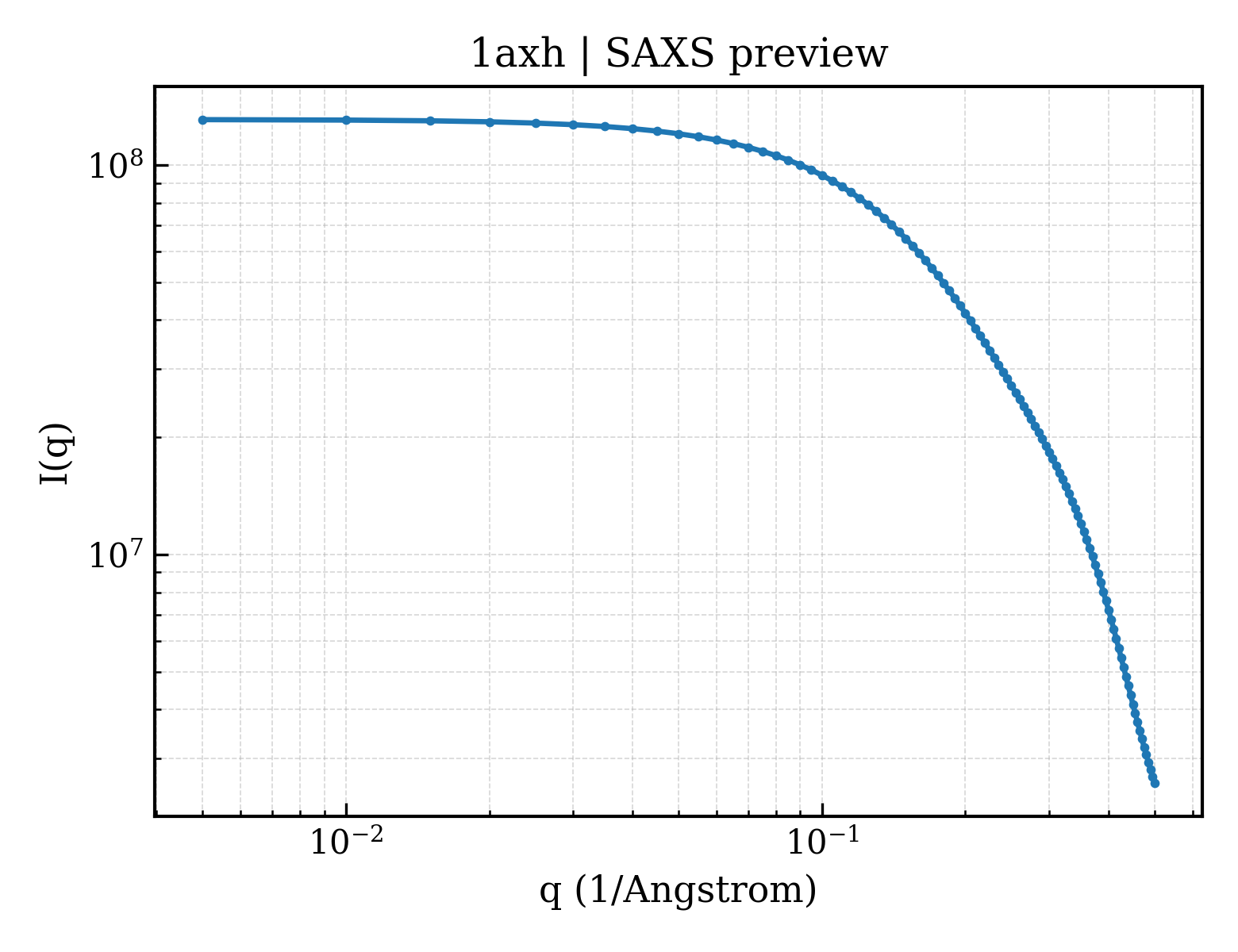

SAXS Profile

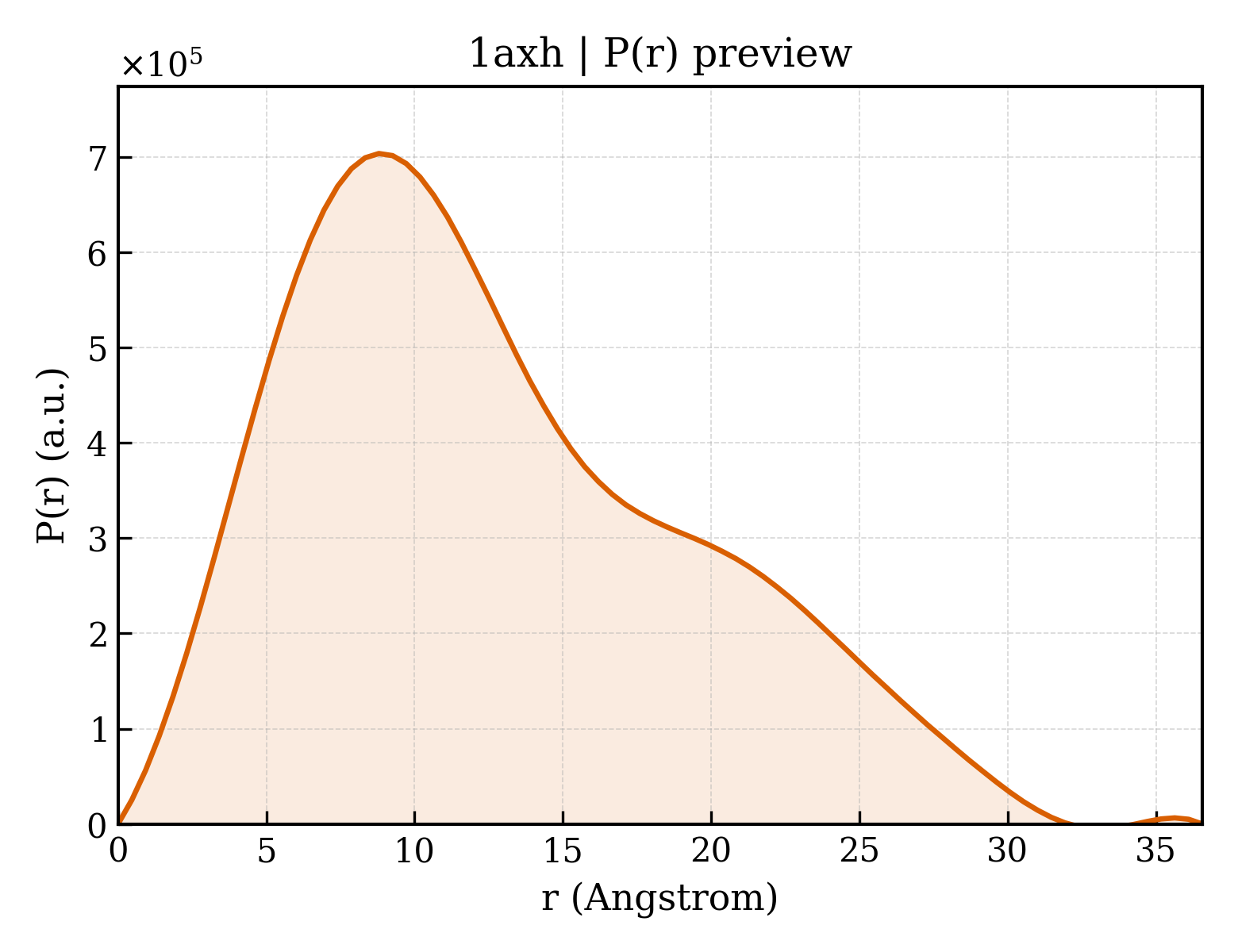

P(r) Distribution
1. Structure Basics
| entry_id | 1axh |
| deposition_date | 1996-11-04 |
| title | ATRACOTOXIN-HVI FROM HADRONYCHE VERSUTA (AUSTRALIAN FUNNEL-WEB SPIDER, NMR, 20 STRUCTURES |
| keywords | NEUROTOXIN, INSECTICIDAL TOXIN, CYSTINE KNOT, FUNNEL-WEB; NEUROTOXIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.94 Å |
| rg_electron | 10.06 Å |
| i0 | 130951000.00 |
| molecular_weight | 81089.0 kDa |
| excluded_volume | 95146 ų |
| envelope_volume | 8156 ų |
| shell_volume | 6679 ų |
| envelope_diameter | 40.4 Å |
| shell_rg | 16.06 Å |
| envelope_rg | 12.20 Å |
| shape_rg | 10.11 Å |
| total_rg | 10.07 Å |
| total_atoms | 10480 |
| n_residues | 740 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 36.6 Å |
| rg_real | 10.10 Å |
| rg_real_error | 0.39 Å |
| i0_real | 1.3100e+08 |
| i0_real_error | 1.5680e+06 |
| rg_reciprocal | 10.09 Å |
| i0_reciprocal | 131000000.0000 |
| total_estimate | 0.7446 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 8.8 Å |
| skewness | 0.566 |
| kurtosis | -0.427 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 14540.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.506; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.229; Smooth: 0.929 |
