1axj
FMN-BINDING PROTEIN FROM DESULFOVIBRIO VULGARIS (MIYAZAKI F), NMR, 20 STRUCTURES

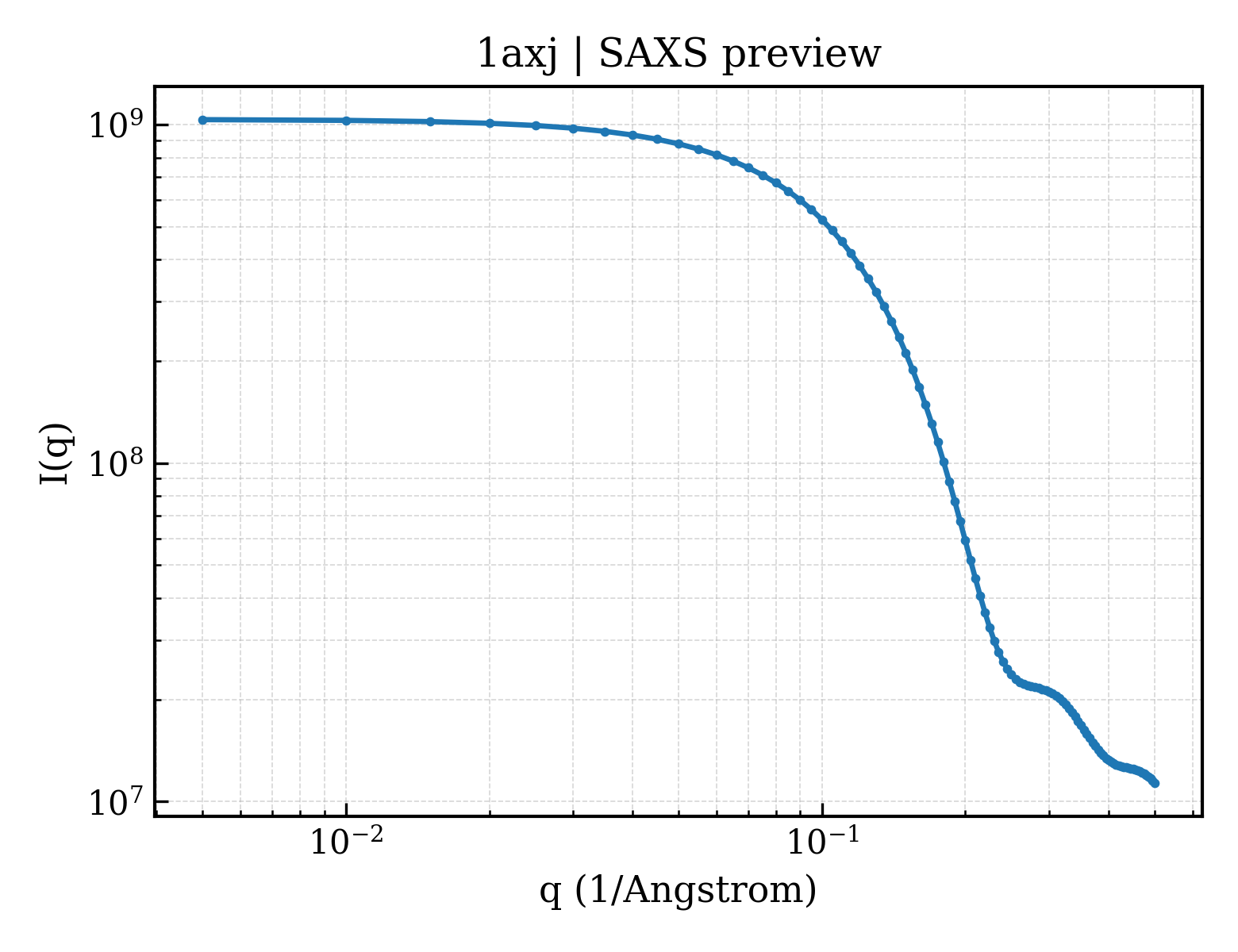

SAXS Profile

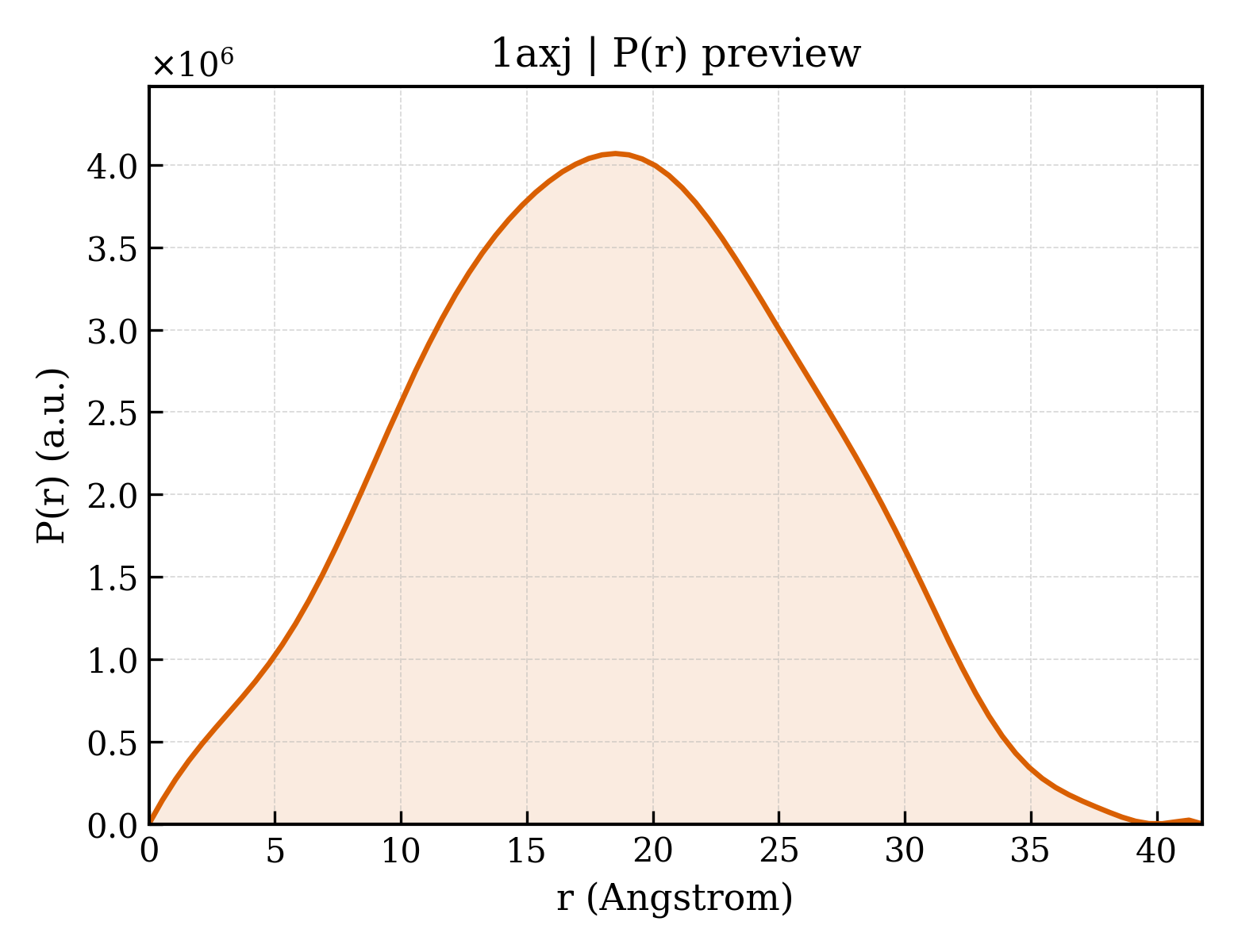

P(r) Distribution
1. Structure Basics
| entry_id | 1axj |
| deposition_date | 1997-10-16 |
| title | FMN-BINDING PROTEIN FROM DESULFOVIBRIO VULGARIS (MIYAZAKI F), NMR, 20 STRUCTURES |
| keywords | FMN-BINDING PROTEIN, BINDING PROTEIN; BINDING PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.19 Å |
| rg_electron | 13.75 Å |
| i0 | 1037020000.00 |
| molecular_weight | 271910.0 kDa |
| excluded_volume | 339960 ų |
| envelope_volume | 24573 ų |
| shell_volume | 13900 ų |
| envelope_diameter | 48.9 Å |
| shell_rg | 20.80 Å |
| envelope_rg | 15.18 Å |
| shape_rg | 13.75 Å |
| total_rg | 13.87 Å |
| total_atoms | 38320 |
| n_residues | 2440 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 41.8 Å |
| rg_real | 14.09 Å |
| rg_real_error | 0.25 Å |
| i0_real | 1.0370e+09 |
| i0_real_error | 1.1180e+07 |
| rg_reciprocal | 14.09 Å |
| i0_reciprocal | 1037000000.0000 |
| total_estimate | 0.9079 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 18.5 Å |
| skewness | 0.025 |
| kurtosis | -0.552 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 183300.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.974; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.885 |
