MATURE OXY-COPE CATALYTIC ANTIBODY WITH HAPTEN

entry_id	1axs
deposition_date	1997-10-20
title	MATURE OXY-COPE CATALYTIC ANTIBODY WITH HAPTEN
keywords	OXY-COPE, CATALYTIC ANTIBODY, FAB FRAGMENT; CATALYTIC ANTIBODY
method	X-RAY DIFFRACTION

rg_guinier	44.38 Å
rg_electron	44.79 Å
i0	140575000.00
molecular_weight	95854.0 kDa
excluded_volume	119070 ų
envelope_volume	168470 ų
shell_volume	33203 ų
envelope_diameter	147.5 Å
shell_rg	46.01 Å
envelope_rg	43.08 Å
shape_rg	44.84 Å
total_rg	44.67 Å
total_atoms	6702
n_residues	864
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	137.5 Å
rg_real	44.87 Å
rg_real_error	1.26 Å
i0_real	1.4060e+08
i0_real_error	2.6840e+06
rg_reciprocal	44.38 Å
i0_reciprocal	140500000.0000
total_estimate	0.7527
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	30.6 Å
skewness	0.397
kurtosis	-0.809
angular_range	— – 0.1800 Å−1
current_alpha	0.0000
highest_alpha	7158000.0000
n_real_points	37
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.754; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.516; Smooth: 0.002

Unit Cell

length_a	42.780 Å
length_b	81.500 Å
length_c	128.200 Å
angle_alpha	90.00 °
angle_beta	93.43 °
angle_gamma	90.00 °
z_pdb	4

Symmetry

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

Refinement

resolution	2.600 Å
resolution_low	20.000 Å
r_factor	0.2000
r_work	0.2000
r_free	0.3050

Diffraction

temperature

94.0 K

Files (7)

• pr_distribution /app/data/pr_computation/ax/1axs/pr_distribution.json
• pr_output /app/data/pr_computation/ax/1axs/1axs.pr.out

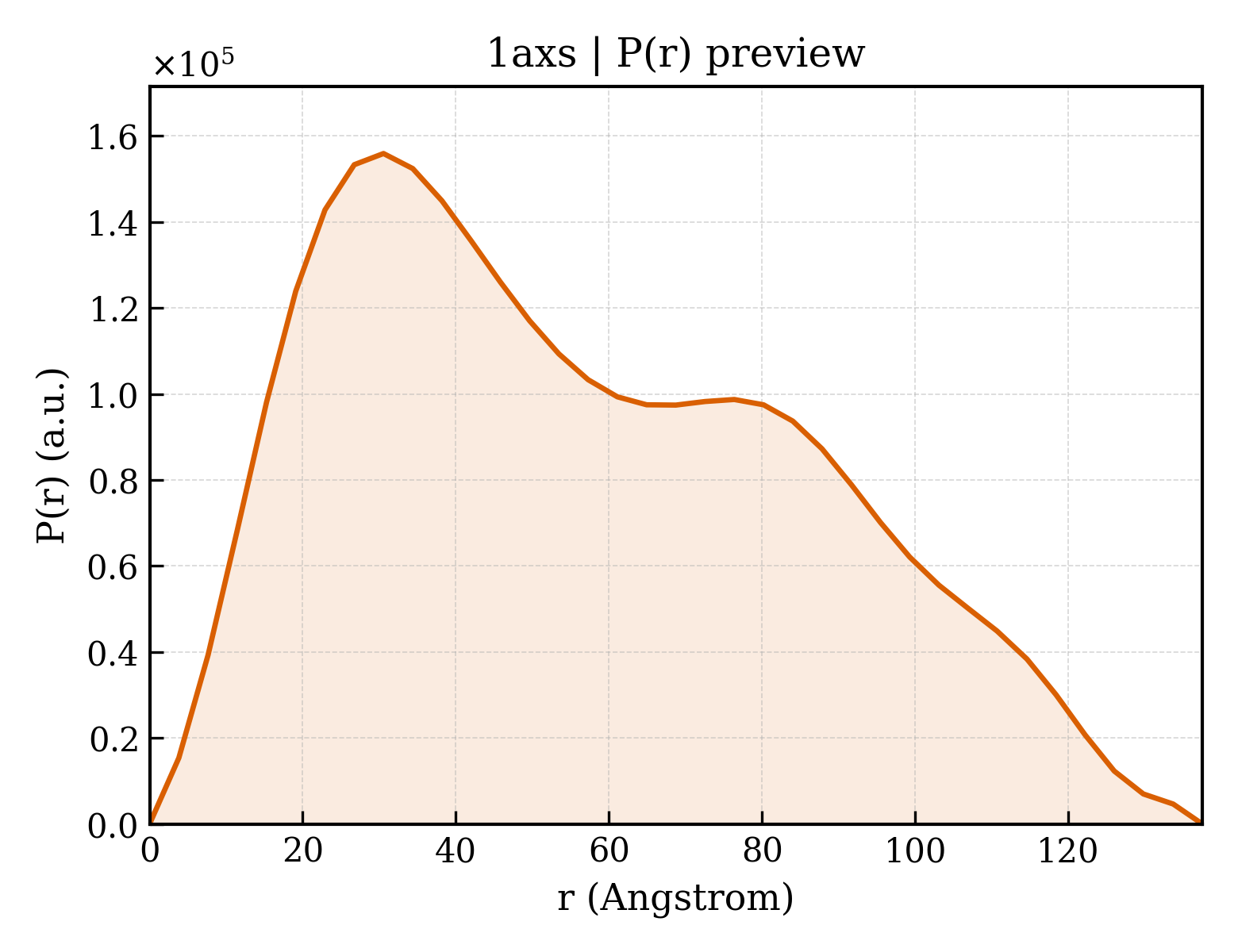

• pr_plot /app/data/visualization/pr_computation/ax/1axs/1axs_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/ax/1axs/1axs.dat
• saxs_fit /app/data/saxs_computation/ax/1axs/1axs.fit
• saxs_log /app/data/saxs_computation/ax/1axs/1axs.log

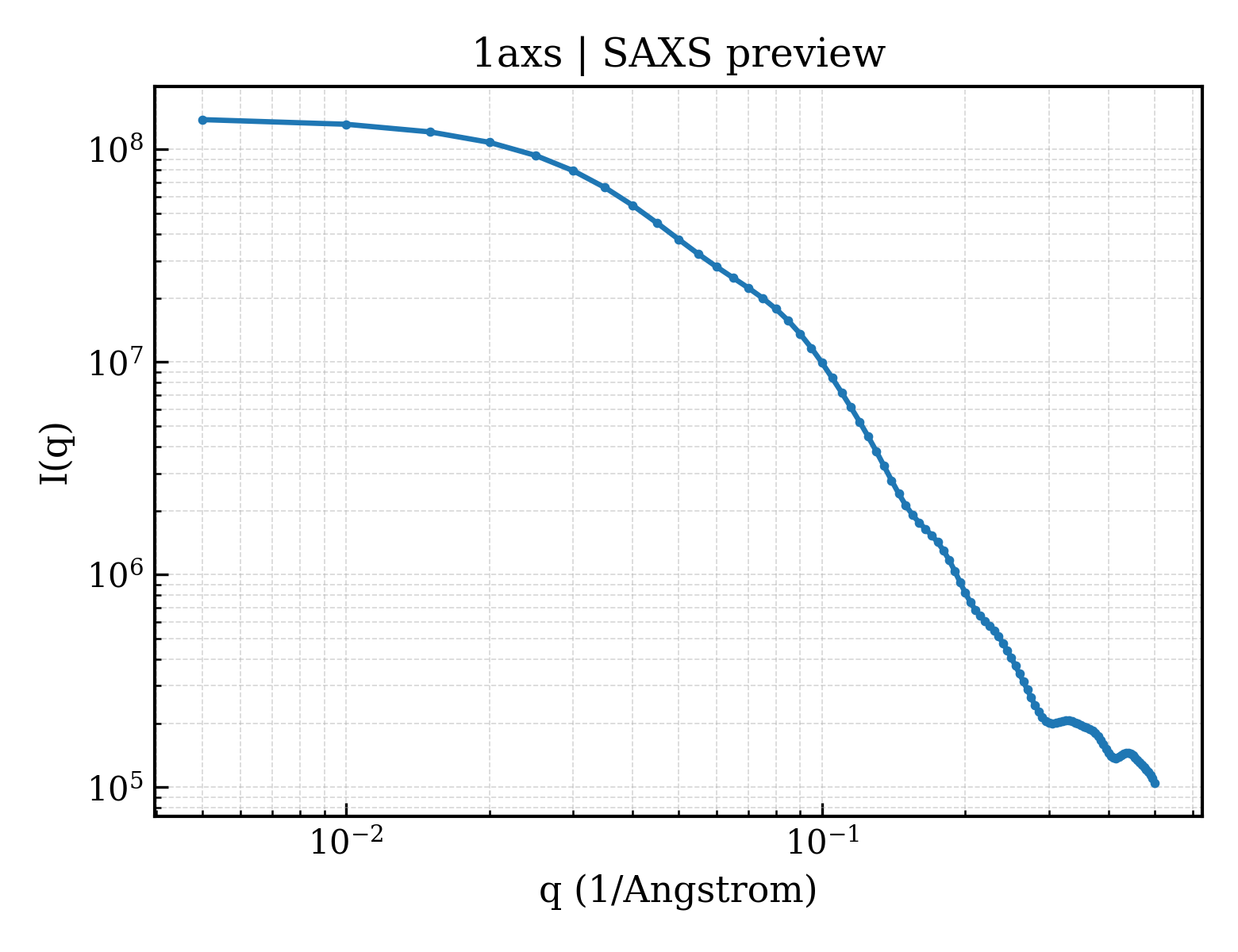

• saxs_plot /app/data/visualization/saxs_computation/ax/1axs/1axs_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/ax/1axs/1axs.fit
pddf	/app/data/pr_computation/ax/1axs/1axs.pr.out
profile	/app/data/saxs_computation/ax/1axs/1axs.dat
