1azw
PROLINE IMINOPEPTIDASE FROM XANTHOMONAS CAMPESTRIS PV. CITRI
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1azw |
| deposition_date | 1997-11-22 |
| title | PROLINE IMINOPEPTIDASE FROM XANTHOMONAS CAMPESTRIS PV. CITRI |
| keywords | AMINOPEPTIDASE, PROLINE IMINOPEPTIDASE, SERINE PROTEASE, XANTHOMONAS CAMPESTRIS; AMINOPEPTIDASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 29.72 Å |
| rg_electron | 29.46 Å |
| i0 | 83384700.00 |
| molecular_weight | 70924.0 kDa |
| excluded_volume | 88098 ų |
| envelope_volume | 104160 ų |
| shell_volume | 30746 ų |
| envelope_diameter | 101.0 Å |
| shell_rg | 35.15 Å |
| envelope_rg | 29.39 Å |
| shape_rg | 29.42 Å |
| total_rg | 30.09 Å |
| total_atoms | 5028 |
| n_residues | 626 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

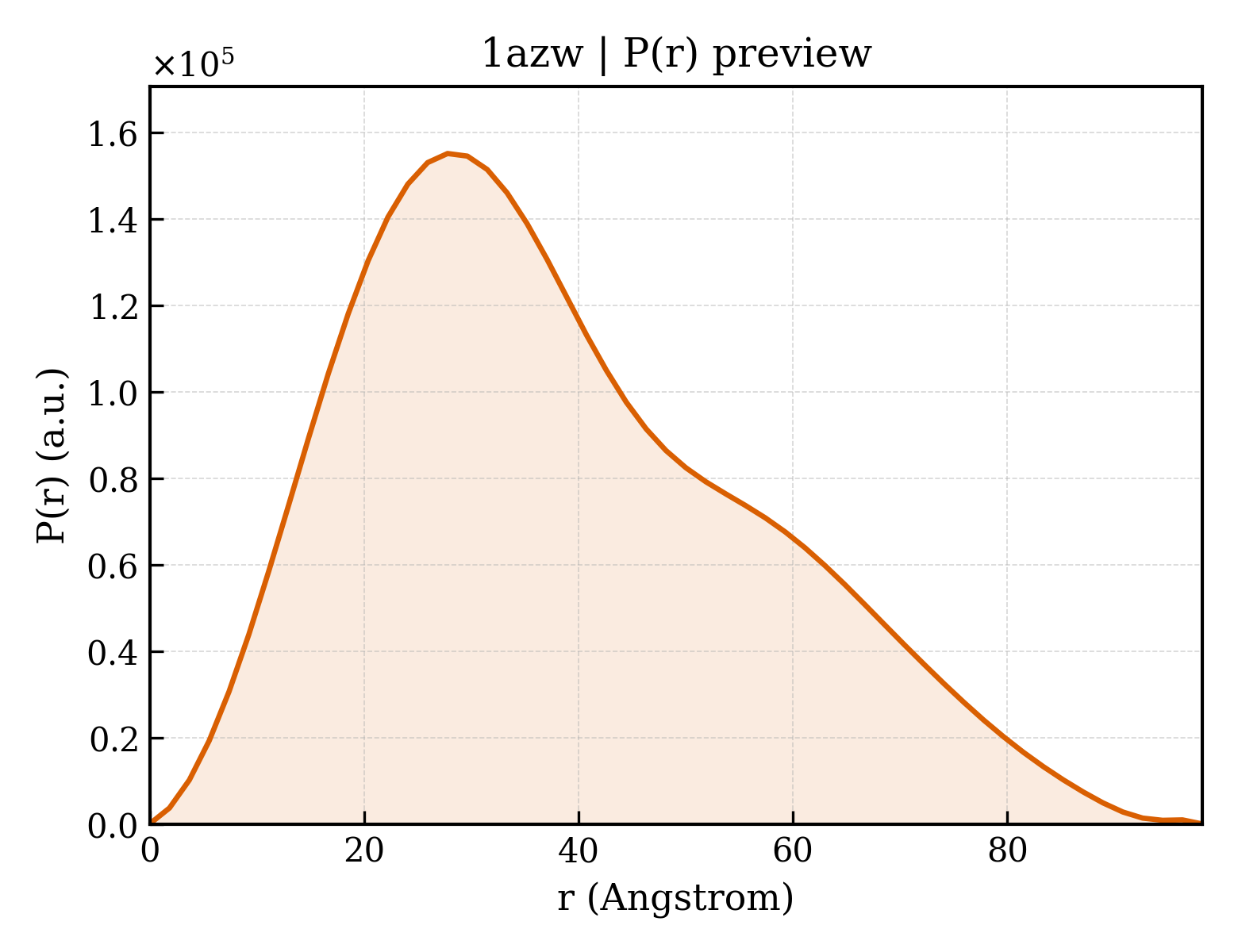

3. P(r) Analysis (GNOM)
| dmax | 98.2 Å |
| rg_real | 29.94 Å |
| rg_real_error | 0.79 Å |
| i0_real | 8.3380e+07 |
| i0_real_error | 1.2260e+06 |
| rg_reciprocal | 29.85 Å |
| i0_reciprocal | 83380000.0000 |
| total_estimate | 0.8329 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 27.8 Å |
| skewness | 0.521 |
| kurtosis | -0.410 |
| angular_range | — – 0.2650 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 31680000.0000 |
| n_real_points | 54 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.738; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.878; Smooth: 0.733 |
