1azy

STRUCTURAL AND THEORETICAL STUDIES SUGGEST DOMAIN MOVEMENT PRODUCES AN ACTIVE CONFORMATION OF THYMIDINE PHOSPHORYLASE

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

THYMIDINE PHOSPHORYLASE

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TYPH_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–440； UniProt 2–440 Author chain B； PDBConstruct 2–440； UniProt 2–440

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1azy
Deposition date deposition_date	1997-11-24
Structure title title	STRUCTURAL AND THEORETICAL STUDIES SUGGEST DOMAIN MOVEMENT PRODUCES AN ACTIVE CONFORMATION OF THYMIDINE PHOSPHORYLASE
Keywords keywords	GLYCOSYLTRANSFERASE, THYMIDINE PHOSPHORYLASE, SALVAGE PATHWAY; GLYCOSYLTRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1azy__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1azy__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

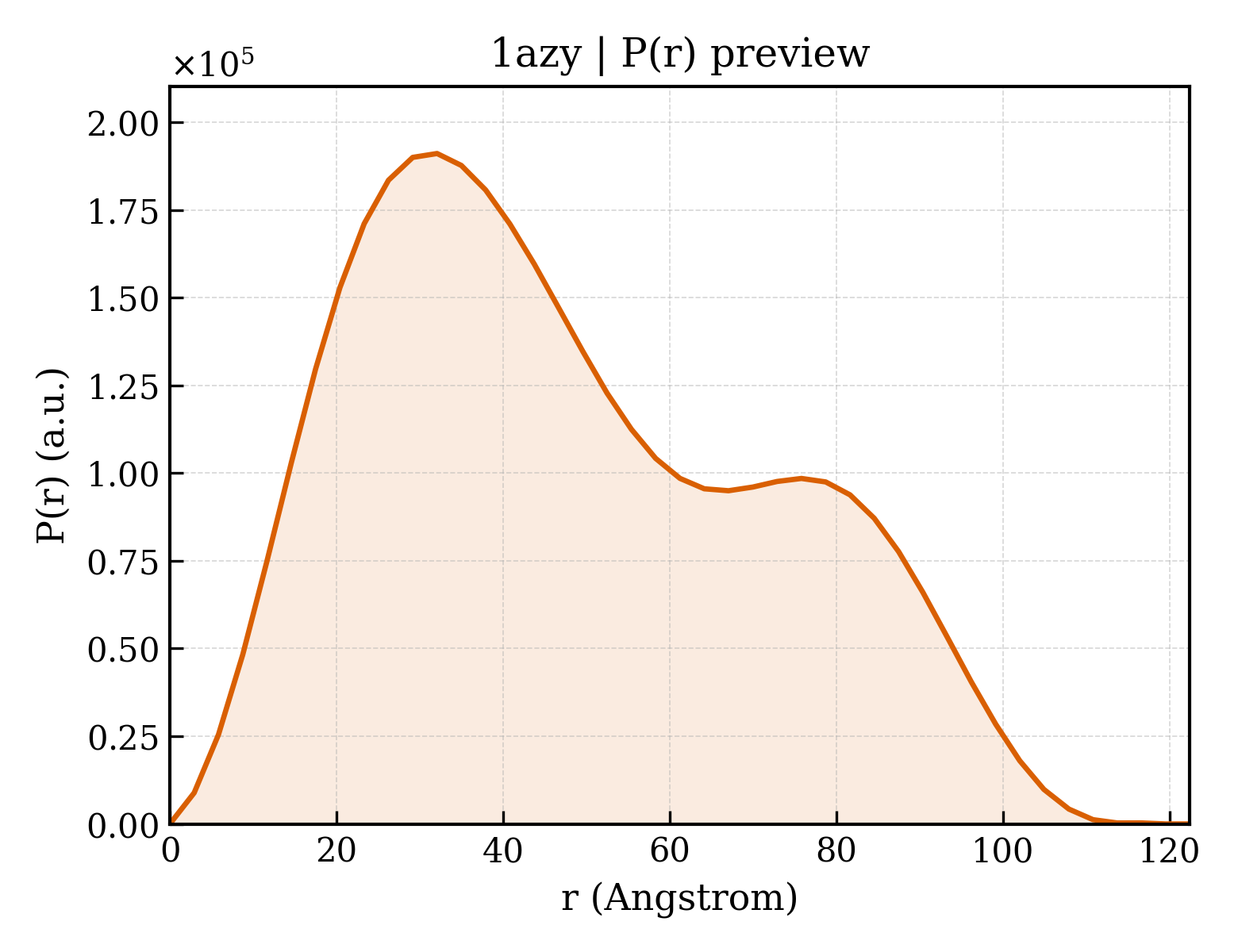

1azy__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.40 Å
Rg (electron density)	37.36 Å
Total Rg	37.51 Å
Atom count	6612
Residues	880
Excluded volume	118020 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1azy__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▼

6. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1azya1
Class class	a — All alpha proteins
Fold Fold fold	a.46 — Methionine synthase domain-like
Superfamily Superfamily superfamily	a.46.2 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain
Family Family family	a.46.2.1 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain

Domain ID domain_id	d1azya2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.27 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Superfamily Superfamily superfamily	c.27.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Family Family family	c.27.1.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	d1azya3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.41 — alpha/beta-Hammerhead
Superfamily Superfamily superfamily	d.41.3 — Pyrimidine nucleoside phosphorylase C-terminal domain
Family Family family	d.41.3.1 — Pyrimidine nucleoside phosphorylase C-terminal domain

Domain ID domain_id	d1azya4
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1azyb1
Class class	a — All alpha proteins
Fold Fold fold	a.46 — Methionine synthase domain-like
Superfamily Superfamily superfamily	a.46.2 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain
Family Family family	a.46.2.1 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain

Domain ID domain_id	d1azyb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.27 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Superfamily Superfamily superfamily	c.27.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Family Family family	c.27.1.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	d1azyb3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.41 — alpha/beta-Hammerhead
Superfamily Superfamily superfamily	d.41.3 — Pyrimidine nucleoside phosphorylase C-terminal domain
Family Family family	d.41.3.1 — Pyrimidine nucleoside phosphorylase C-terminal domain

Domain ID domain_id	d1azyb4
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (6 domains)

Domain ID domain_id	1azyA01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	970 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain C

Domain ID domain_id	1azyA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1030 — Pyrimidine Nucleoside Phosphorylase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	1azyA03
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1170 — Aldehyde Oxidoreductase; domain 3
Homologous superfamily homologous superfamily	30 — Pyrimidine nucleoside phosphorylase-like, C-terminal domain

Domain ID domain_id	1azyB01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	970 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain C

Domain ID domain_id	1azyB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1030 — Pyrimidine Nucleoside Phosphorylase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	1azyB03
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1170 — Aldehyde Oxidoreductase; domain 3
Homologous superfamily homologous superfamily	30 — Pyrimidine nucleoside phosphorylase-like, C-terminal domain

▶

Unit-cell length a length_a	52.000 Å
Unit-cell length b length_b	78.000 Å
Unit-cell length c length_c	116.500 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	91.50 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2040
R_work r_work	0.2040
R_free r_free	0.2760

Description description	THYMIDINE PHOSPHORYLASE
Molecular weight formula_weight	47241.0 kDa
EC 编号 ec_number	2.4.2.4
Source method src_method	nat
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6612
