SAXSdb — 1b04

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (DNA LIGASE)

Geobacillus stearothermophilus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–318	Fragment：ADENYLATION DOMAIN Mutation：K114A	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：pH 4.6；pH 4.6	Resolution 2.80 Å R-free 0.310
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 1–318	Fragment：ADENYLATION DOMAIN Mutation：K114A	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：pH 4.6；pH 4.6	Resolution 2.80 Å R-free 0.310

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	DNLJ_BACST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–318； UniProt 1–318 Author chain B； PDBConstruct 1–318； UniProt 1–318

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1b04
Deposition date deposition_date	1998-11-16
Structure title title	STRUCTURE OF THE ADENYLATION DOMAIN OF AN NAD+ DEPENDENT LIGASE
Keywords keywords	LIGASE, DNA REPLICATION; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.50 Å
Radius of gyration Rg (electron density) rg_electron	28.81 Å
Forward intensity I(0) i0	82371600.00
Molecular weight molecular_weight	69962.0 kDa
Excluded volume excluded_volume	87108 Å³
Envelope volume envelope_volume	111400 Å³
Hydration-shell volume shell_volume	33255 Å³
Envelope diameter envelope_diameter	106.7 Å
Shell Rg shell_rg	34.84 Å
Envelope Rg envelope_rg	28.74 Å
Shape Rg shape_rg	28.80 Å
Total Rg total_rg	29.43 Å
Total atoms total_atoms	4936
Residues n_residues	621
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	101.4 Å
Rg (real space) rg_real	29.56 Å
Rg uncertainty (real space) rg_real_error	0.95 Å
I(0) (real space) i0_real	8.2370e+07
I(0) uncertainty (real space) i0_real_error	1.5570e+06
Rg (reciprocal space) rg_reciprocal	29.54 Å
I(0) (reciprocal space) i0_reciprocal	82370000.0000
Solution quality estimate total_estimate	0.8687
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	31.9 Å
Skewness Skewness skewness	0.453
Kurtosis Kurtosis kurtosis	-0.125
Angular range angular_range	— – 0.2700 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	13510000.0000
Real-space data points n_real_points	55
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.802; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.902

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1b04a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.142 — ATP-grasp
Superfamily Superfamily superfamily	d.142.2 — DNA ligase/mRNA capping enzyme, catalytic domain
Family Family family	d.142.2.2 — Adenylation domain of NAD+-dependent DNA ligase

Domain ID domain_id	d1b04b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.142 — ATP-grasp
Superfamily Superfamily superfamily	d.142.2 — DNA ligase/mRNA capping enzyme, catalytic domain
Family Family family	d.142.2.2 — Adenylation domain of NAD+-dependent DNA ligase

CATH v4.4 (6 domains)

Domain ID domain_id	1b04A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
Homologous superfamily homologous superfamily	30 — DNA ligase/mRNA capping enzyme

Domain ID domain_id	1b04A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1490 — Dna Ligase; domain 1
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	1b04A03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	610 — Helix hairpin bin

Domain ID domain_id	1b04B01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
Homologous superfamily homologous superfamily	30 — DNA ligase/mRNA capping enzyme

Domain ID domain_id	1b04B02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1490 — Dna Ligase; domain 1
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	1b04B03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	610 — Helix hairpin bin

▶

8. Citations (1)

▶

Unit-cell length a length_a	95.720 Å
Unit-cell length b length_b	95.720 Å
Unit-cell length c length_c	225.890 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2300
R_work r_work	0.2300
R_free r_free	0.3100

Description description	PROTEIN (DNA LIGASE)
Molecular weight formula_weight	35832.4 kDa
EC 编号 ec_number	6.5.1.2
Mutation mutation	K114A
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5126

STRUCTURE OF THE ADENYLATION DOMAIN OF AN NAD+ DEPENDENT LIGASE

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (DNA LIGASE)

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

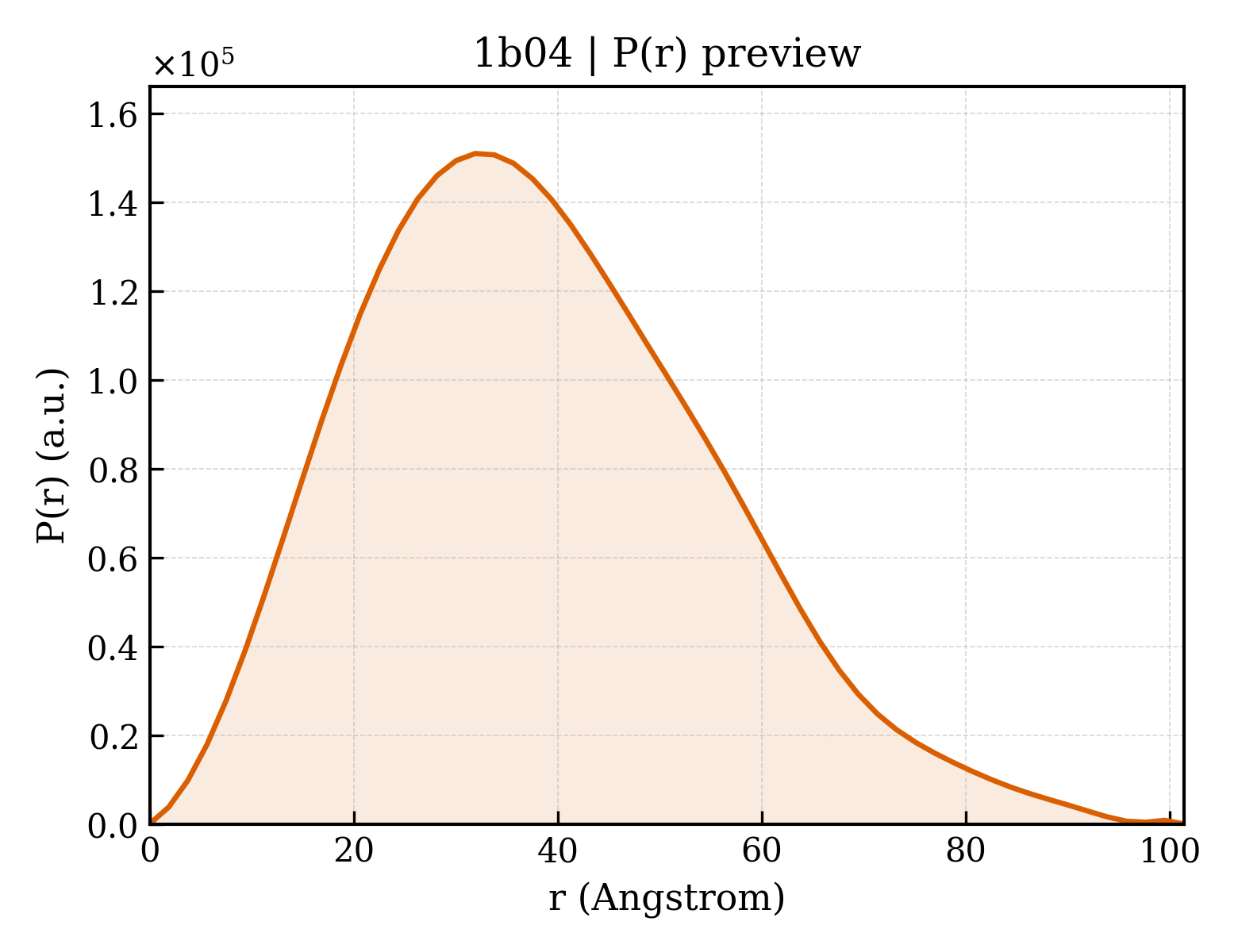

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (2 domains)

CATH v4.4 (6 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Geobacillus stearothermophilus
NCBI Class编号 ncbi_taxonomy_id	1422
宿主生物 host_organism	Escherichia coli BL21

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	190

fit	/app/data/saxs_computation/b0/1b04/1b04.fit
pddf	/app/data/pr_computation/b0/1b04/1b04.pr.out
profile	/app/data/saxs_computation/b0/1b04/1b04.dat
