1b32
OLIGO-PEPTIDE BINDING PROTEIN (OPPA) COMPLEXED WITH KMK

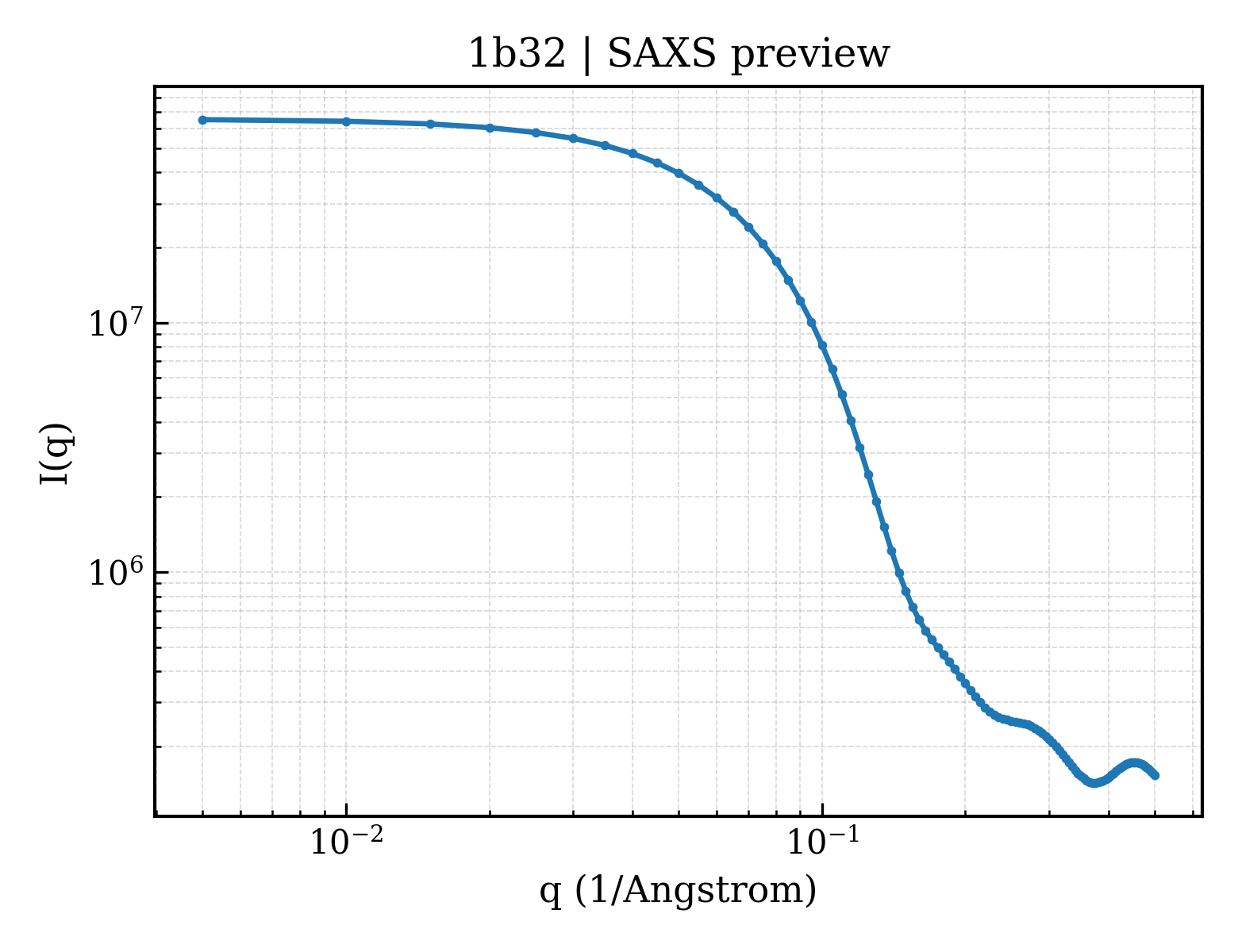

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1b32 |
| deposition_date | 1998-12-15 |
| title | OLIGO-PEPTIDE BINDING PROTEIN (OPPA) COMPLEXED WITH KMK |
| keywords | COMPLEX (PEPTIDE TRANSPORT-PEPTIDE), PEPTIDE TRANSPORT, PEPTIDE BINDING PROTEIN; PEPTIDE BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 24.40 Å |
| rg_electron | 23.15 Å |
| i0 | 65438500.00 |
| molecular_weight | 61525.0 kDa |
| excluded_volume | 75456 ų |
| envelope_volume | 84843 ų |
| shell_volume | 29802 ų |
| envelope_diameter | 79.9 Å |
| shell_rg | 30.95 Å |
| envelope_rg | 23.31 Å |
| shape_rg | 22.96 Å |
| total_rg | 24.51 Å |
| total_atoms | 4228 |
| n_residues | 520 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 76.2 Å |
| rg_real | 24.27 Å |
| rg_real_error | 0.33 Å |
| i0_real | 6.5440e+07 |
| i0_real_error | 8.3420e+05 |
| rg_reciprocal | 24.30 Å |
| i0_reciprocal | 65440000.0000 |
| total_estimate | 0.9025 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 1 |
| r_peak_primary | 73.8 Å |
| skewness | 0.216 |
| kurtosis | -0.402 |
| angular_range | — – 0.3250 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 9636000.0000 |
| n_real_points | 64 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.913; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.992 |
