SAXSdb — 1b4k

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (5-AMINOLEVULINIC ACID DEHYDRATASE)

Pseudomonas aeruginosa

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 8	SULFATE ION × 8 MAGNESIUM ION × 4 LAEVULINIC ACID × 8 water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HEM2_PSEAE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–337； UniProt 1–337 Author chain B； PDBConstruct 1–337； UniProt 1–337

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1b4k
Deposition date deposition_date	1998-12-22
Structure title title	High resolution crystal structure of a MG2-dependent 5-aminolevulinic acid dehydratase
Keywords keywords	LYASE, HEME BIOSYNTHESIS, MAGNESIUM, LEVULINIC ACID; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1b4k__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

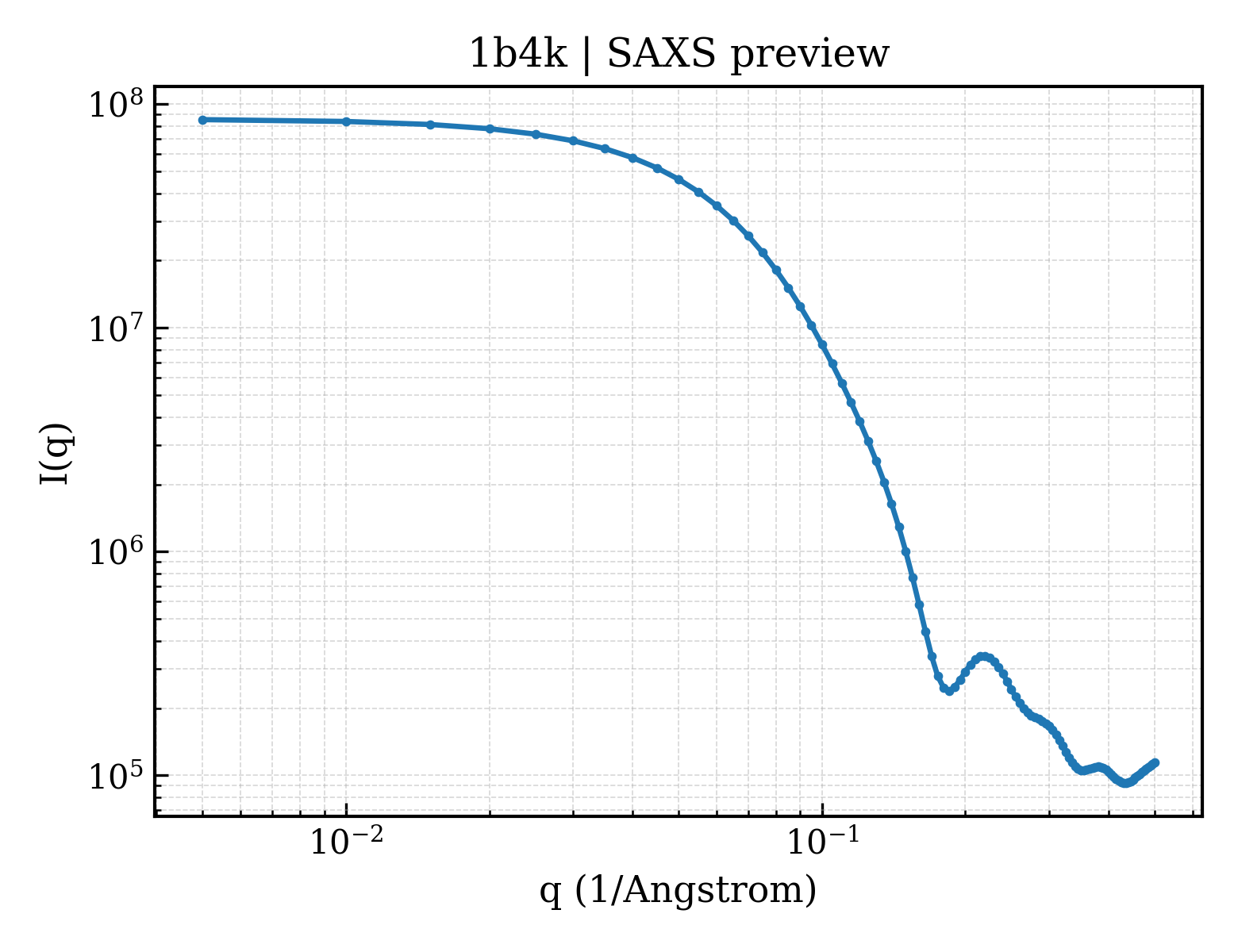

1b4k__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1b4k__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	39.95 Å
Rg (electron density)	39.05 Å
Total Rg	39.47 Å
Atom count	20128
Residues	2584
Excluded volume	356380 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1b4k__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	PROTEIN (5-AMINOLEVULINIC ACID DEHYDRATASE)
Molecular weight formula_weight	37077.9 kDa
EC 编号 ec_number	4.2.1.24
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5604

MSFTPANRAYPYTRLRRNRRDDFSRRLVRENVLTVDDLILPVFVLDGVNQRESIPSMPGVERLSIDQLLIEAEEWVALGIPALALFPVTPVEKKSLDAAEAYNPEGIAQRATRALRERFPELGIITDVALDPFTTHGQDGILDDDGYVLNDVSIDVLVRQALSHAEAGAQVVAPSDMMDGRIGAIREALESAGHTNVRIMAYSAKYASAYYGPFRDAVGSASNLGKGNKATYQMDPANSDEALHEVAADLAEGADMVMVKPGMPYLDIVRRVKDEFRAPTFVYQVSGEYAMHMGAIQNGWLAESVILESLTAFKRAGADGILTYFAKQAAEQLRRGR

Source Source

Source organism organism	Pseudomonas aeruginosa
NCBI taxonomy ID ncbi_taxonomy_id	208964
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	LAEVULINIC ACID
Molecular weight formula_weight	116.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	572

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1b4ka_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.10 — Aldolase
Family Family family	c.1.10.3 — 5-aminolaevulinate dehydratase, ALAD (porphobilinogen synthase)

Domain ID domain_id	d1b4kb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.10 — Aldolase
Family Family family	c.1.10.3 — 5-aminolaevulinate dehydratase, ALAD (porphobilinogen synthase)

CATH v4.4 (2 domains)

Domain ID domain_id	1b4kA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	1b4kB00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

▶

Unit-cell length a length_a	128.240 Å
Unit-cell length b length_b	128.240 Å
Unit-cell length c length_c	86.220 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 4 21 2
Space-group number int_tables_number	90
Crystal system crystal_system	—

Resolution resolution	1.670 Å
Low-resolution limit resolution_low	51.300 Å
R factor r_factor	—
R_work r_work	0.1780
R_free r_free	0.2080
