1b4q
Solution structure of human thioltransferase complex with glutathione

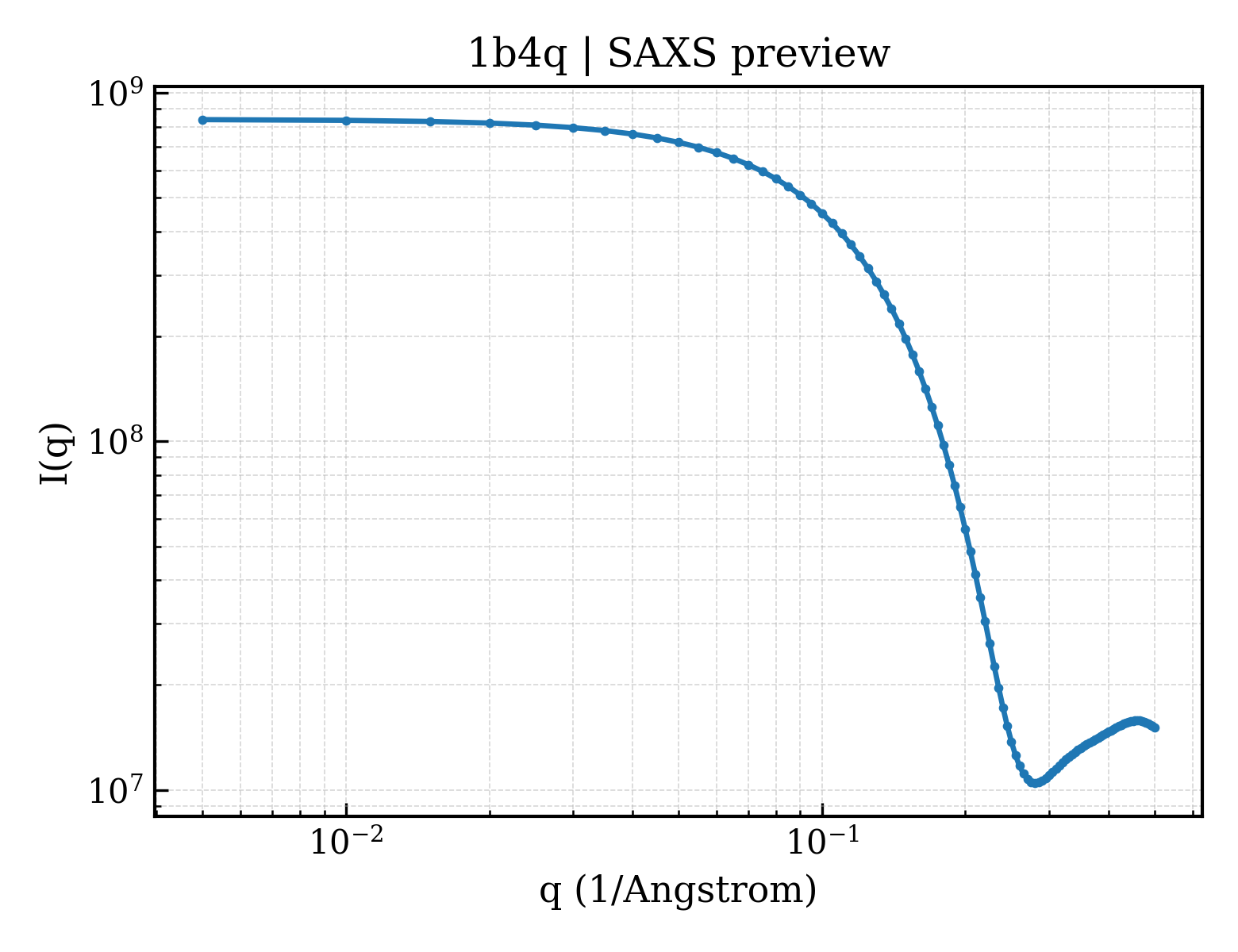

SAXS Profile

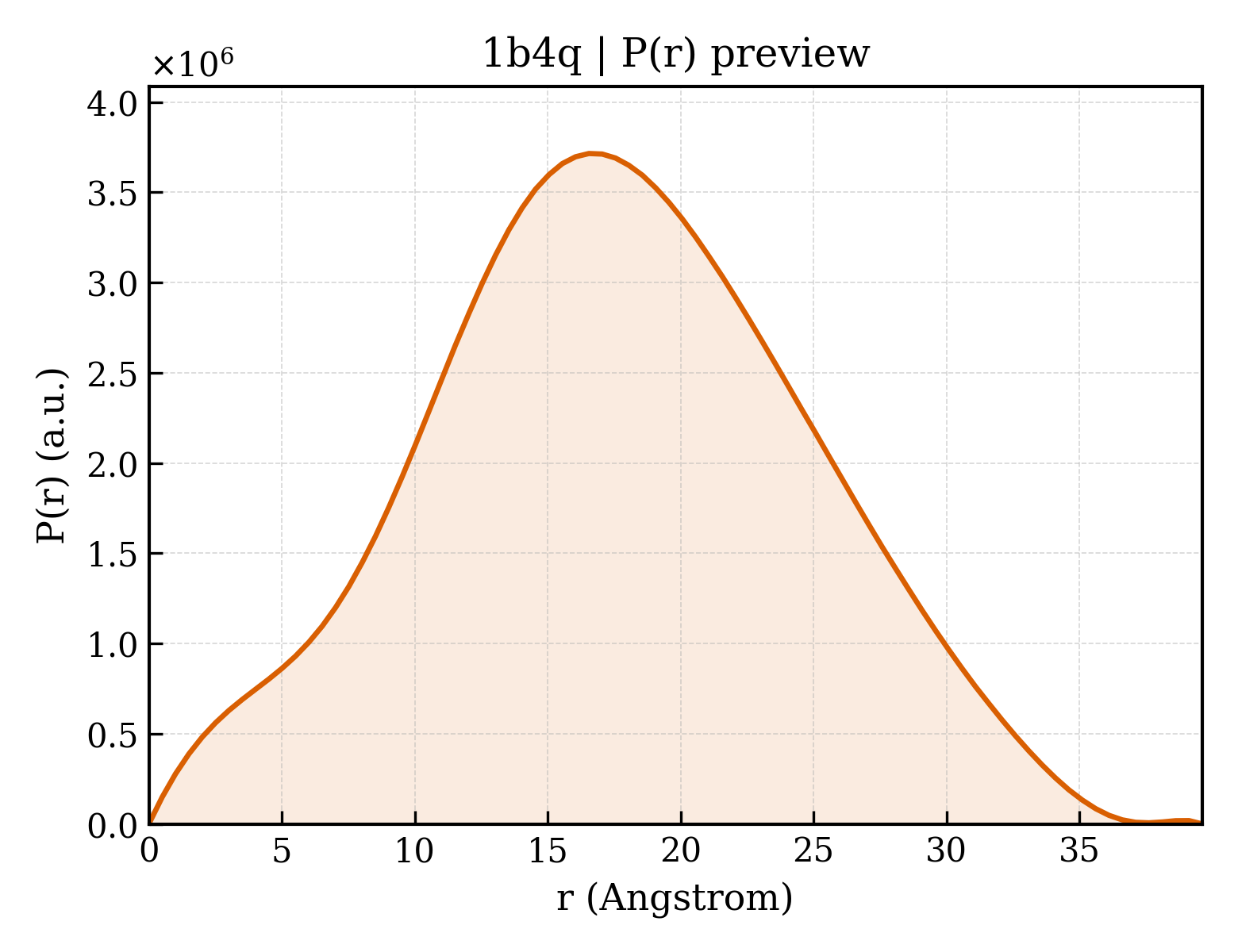

P(r) Distribution
1. Structure Basics
| entry_id | 1b4q |
| deposition_date | 1998-12-25 |
| title | Solution structure of human thioltransferase complex with glutathione |
| keywords | HUMAN THIOLTRANSFERASE, DISULFIDE INTERMEDIATE, GLUTATHIONE, OXIDOREDUCTASE; OXIDOREDUCTASE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.53 Å |
| rg_electron | 13.06 Å |
| i0 | 839311000.00 |
| molecular_weight | 249680.0 kDa |
| excluded_volume | 314740 ų |
| envelope_volume | 20513 ų |
| shell_volume | 12477 ų |
| envelope_diameter | 45.6 Å |
| shell_rg | 19.73 Å |
| envelope_rg | 14.17 Å |
| shape_rg | 13.04 Å |
| total_rg | 13.22 Å |
| total_atoms | 35637 |
| n_residues | 2205 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 39.6 Å |
| rg_real | 13.43 Å |
| rg_real_error | 0.16 Å |
| i0_real | 8.3930e+08 |
| i0_real_error | 7.3430e+06 |
| rg_reciprocal | 13.44 Å |
| i0_reciprocal | 839300000.0000 |
| total_estimate | 0.9036 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 16.6 Å |
| skewness | 0.029 |
| kurtosis | -0.415 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 170100.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.930; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.976 |
