1b4t

H48C YEAST CU(II)/ZN SUPEROXIDE DISMUTASE ROOM TEMPERATURE (298K) STRUCTURE

Method: X-RAY DIFFRACTION D_max: 51.0 Å Quality: GOOD

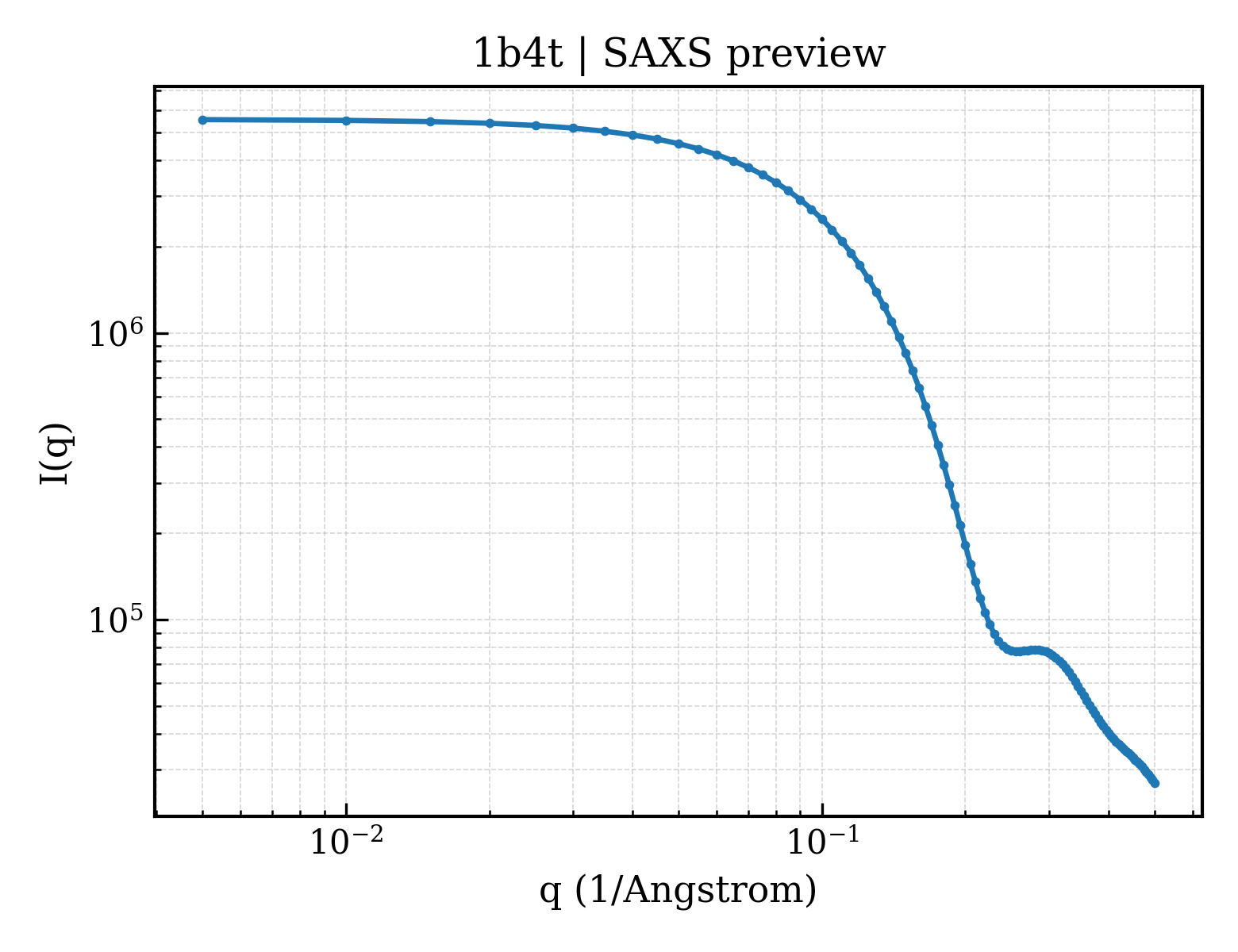

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1b4t
deposition_date	1998-12-23
title	H48C YEAST CU(II)/ZN SUPEROXIDE DISMUTASE ROOM TEMPERATURE (298K) STRUCTURE
keywords	SUPEROXIDE ACCEPTOR, COPPER, ZINC, OXIDOREDUCTASE; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	15.35 Å
rg_electron	14.25 Å
i0	5558430.00
molecular_weight	15849.0 kDa
excluded_volume	19368 Å³
envelope_volume	21774 Å³
shell_volume	12881 Å³
envelope_diameter	50.1 Å
shell_rg	20.10 Å
envelope_rg	14.65 Å
shape_rg	14.27 Å
total_rg	15.33 Å
total_atoms	1105
n_residues	153
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	51.0 Å
rg_real	15.24 Å
rg_real_error	0.27 Å
i0_real	5.5580e+06
i0_real_error	5.5860e+04
rg_reciprocal	15.25 Å
i0_reciprocal	5558000.0000
total_estimate	0.8837
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	20.0 Å
skewness	0.121
kurtosis	-0.413
angular_range	— – 0.5000 Å⁻¹
current_alpha	0.0000
highest_alpha	729800.0000
n_real_points	80
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.828; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 1.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	PROTEIN (CU/ZN SUPEROXIDE DISMUTASE)
formula_weight	15708.4 kDa
ec_number	1.15.1.1
mutation	H48C
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	1221

VQAVAVLKGDAGVSGVVKFEQASESEPTTVSYEIAGNSPNAERGFHICEFGDATNGCVSAGPHFNPFKKTHGAPTDEVRHVGDMGNVKTDENGVAKGSFKDSLIKLIGPTSVVGRSVVIHAGQDDLGKGDTEESLKTGNAGPRPACGVIGLTN

Source

organism	Saccharomyces cerevisiae
common_name	;baker's yeast ;
ncbi_taxonomy_id	4932
host_organism	Escherichia coli

Entity 2 non-polymer

description	COPPER (II) ION
formula_weight	63.5 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	CHLORIDE ION
formula_weight	35.5 kDa
src_method	syn
entity_count	1

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	116

▶

6. Citations (2)

▶

length_a	118.647 Å
length_b	118.647 Å
length_c	75.376 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	18

space_group	H 3 2
int_tables_number	155
crystal_system	—

resolution	1.800 Å
resolution_low	10.000 Å
r_factor	0.2090
r_work	0.2090
r_free	0.2580
